Renolit SE products

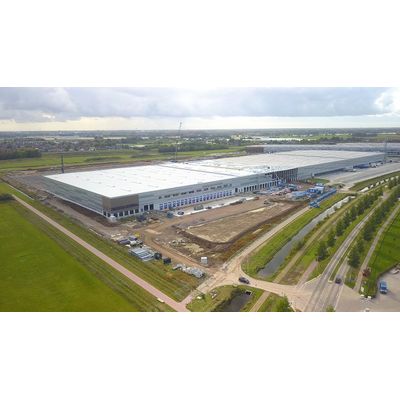

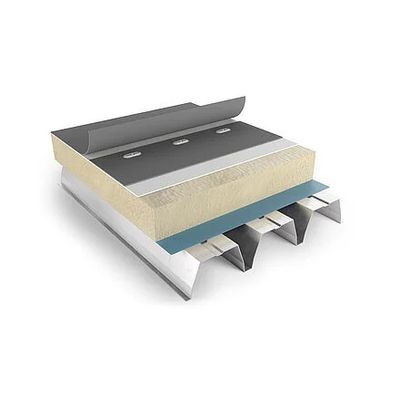

Mechanical fastening is perfectly suited for lightweight, metal deck structures for large industrial buildings, warehouses, logistic centres, etc. It can, however, also be applied on concrete structures or wooden decks. The roofing membrane is fastened to the substrate along the longitudinal edges by means of pressure plates and screws. Wind load calculations can accurately determine the exact number of fasteners to be used in order to avoid any risk of wind uplift. The RENOLIT ALKORPLAN F membrane for mechanical fastening has a woven polyester reinforcing, which makes the membrane even more resistant.

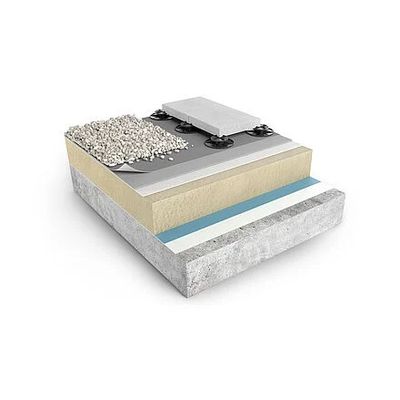

A ballasted or protected roof implies that the roofing membrane is not fixed nor adhered to the roof structure. The membrane is loose-laid and covered with gravel, paving slabs, substrate etc… Obviously, the ballast offers a good protection against wind uplift. It also protects the membrane against direct stress caused by temperature fluctuations, punctures, tears, etc. but also against ageing, as the membrane is not exposed to UV radiation. Thanks to the glass fleece reinforcing, the RENOLIT ALKORPLAN L membrane has an excellent dimensional stability. A simple and fast installation without glue or fasteners and regardless of weather conditions, is undoubtedly an advantage. The seams are hot air welded at the overlap with either manual or automatic welding equipment.

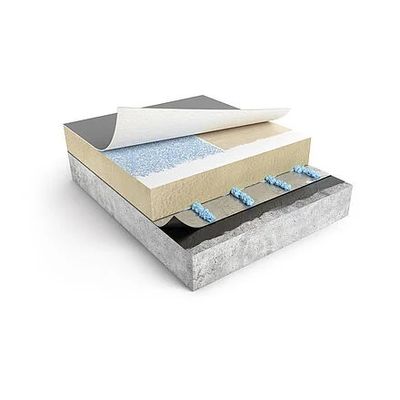

On roofs where mechanical fastening is difficult (concrete structures) or even not possible, the waterproofing membrane can be adhered to the roof deck. No matter whether the structure is a wood, concrete or steel deck. This system is recommended in cases where the vapour control layer cannot be perforated, such as indoor swimming pools and buildings with a high interior humidity.  It is also advisable to adhere on e.g. refrigerated or cool buildings, as mechanical fasteners might cause thermal bridging problems and thus moisture-related damage.

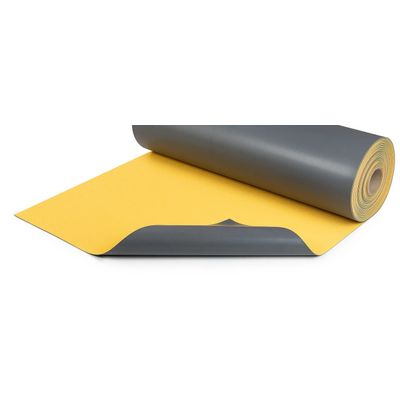

RENOLIT ALKORPLAN Slip Resistant Walkway is a flexible synthetic PVC roofing membrane with polyester reinforcement and textured surface. It is used to create slip resistant walkways for roof maintenance of new or existing flat and pitched roofs, photovoltaic panels, emergency access and life line. Suitable for installation on roofs with RENOLIT ALKORPLAN Bright, RENOLIT ALKORPLAN Smart, RENOLIT ALKORPLAN Classic waterproofing underlay membranes and with RENOLIT ALKORPLAN Solar profile.

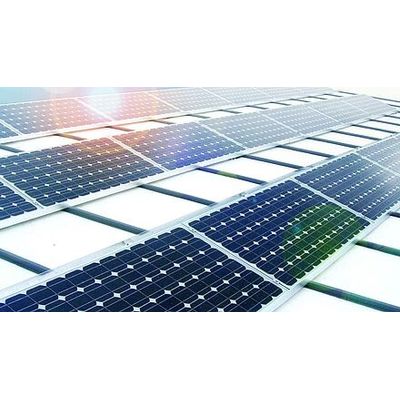

The ultralight RENOLIT ALKORPLAN Solar fastening system enables solar elements to be fitted to the roof without the need for additional ballast or for perforation of the roofing membrane. The RENOLIT ALKORPLAN Solar system has been developed with full adherence to the philosophy of a PVC-P roof. The result is a system with advantages in every respect for the roofer, building owner and installer of the photovoltaic system.

Buildings aim at protecting your properties, your business, your beloved ones, your customers. That is why you want to make the best choice when choosing a product or a provider to build them. FM Global, also known as Factory Mutual, is the international property insurance company that identifies the safest solutions for your buildings, thanks to risk reduction and damage prevention solutions. In its subsidiary FM Approvals, products and solutions are tested and rated as FM Approved solutions.

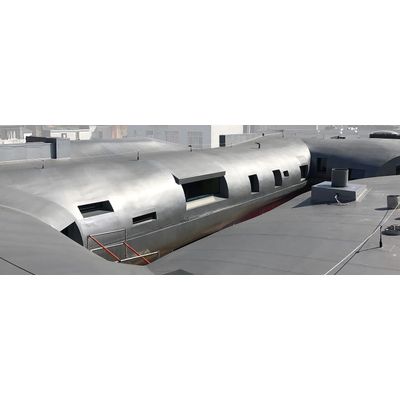

Renolit Alkorplan Metallics Flexible Roofing Membranes With A Metallic (Aluminium/Silver And Copper) Appearance. With RENOLIT ALKORPLAN Metallics, RENOLIT offers flexible roofing membranes with a metallic (aluminium/silver and copper) appearance. Their silver and copper finish, makes these roofing membranes exceptionally well suited to visible/pitched roofs (minimum pitch 30 mm/m). The roofing membranes are provided with a clearcoat. This is a transparent protective layer applied during the production process. The clearcoat makes it harder for dirt to adhere to the roofing membrane, and facilitates cleaning of the membrane with water.

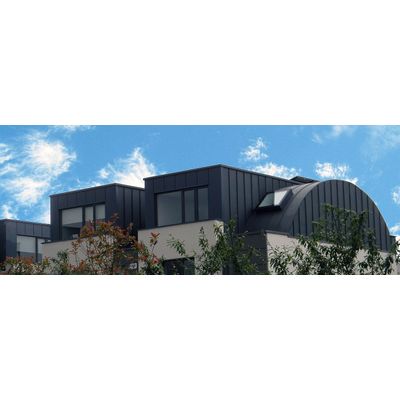

The RENOLIT ALKORPLAN Design system combines the aesthetic appearance of a metal roof (zinc, copper or aluminium) with the benefits of a pliable synthetic roof. The RENOLIT ALKORPLAN Design system has been specially developed as an aesthetically pleasing waterproofing solution for roofs of all possible geometries (horizontal, vertical, pitched, flat, undulating, etc.), whether simple or complex.  The RENOLIT ALKORPLAN Design system is used throughout the world in both new construction and renovation projects.

Renolit Alkorplan Solar As A Carrier System In Combination With Synthetic Roofing Membranes. The unique RENOLIT ALKORPLAN Solar profile has brought a dynamic change to the aesthetics of RENOLIT ALKORPLAN single ply membrane. The PVC profile and aluminium box section combination is hot air welded to the surface of the membrane, providing a solid mounting for a variety of roof finishes. RENOLIT ALKORPLAN Solar is light weight, non penetrative to the waterproofing layer and forms a complete system.

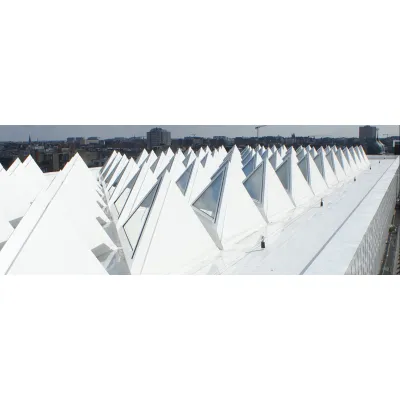

With the development of the RENOLIT ALKORPLAN Bright roofing membrane, the RENOLIT team offers a further environmentally responsible, energy-saving solution for the waterproofing of flat roofs. The RENOLIT ALKORPLAN Bright roofing membrane enables the roof area to be installed perfectly homogeneously, and also generates maximum solar reflectance. The homogeneous, white welding seams are barely discernible on the roof area, and ensure durable waterproofing. RENOLIT ALKORPLAN Bright roofing systems are used worldwide in new construction and renovation projects.
