Reschwitzer Saugbagger Produktions GmbH (RSP) products

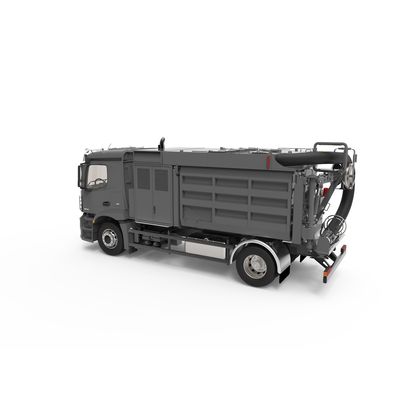

The combination of small dimensions and installed suction capacity makes the ESE 4 the ideal solution for inner-city excavations in confined spaces. The overall width of only 2.30 m enables narrow streets and small building sites to be negotiated without any problems. The machine impresses in everyday use with its capacity of 4 m³ and a tipping axis height of 2.10 m. The superstructure can be mounted on all twin-axle chassis (4 x 2) with a wheelbase from 4200 mm, a vehicle width from 2.30 m and a maximum permissible gross weight of 18 t. The chassis engine should have at least 210 kW.

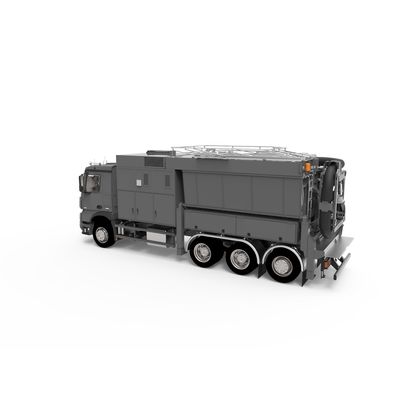

MORE POSSIBILITIES, MORE ORIENTATION: When designing your machine, you have the choice between 3 different container sizes. A tipping axis height of about 2050 mm for almost all container sizes. When designing your suction excavator, you can decide whether your container tips to the left or the right and whether your chassis will be a left or right-hand drive vehicle. The 6 m³ container is particularly suitable for a vehicle chassis with a short wheelbase. The 8 m³ container provides more loading volume and therefore the ability to work more effectively. It has the optimum size for all 3- and 4-axle chassis. This is most frequently used for suction work when excavating. The 10 m³ container is designed for very special suction tasks, for example, in industrial facilities that require a larger container capacity.

The new ESE 6 delivers even more suction power than comparable suction excavators, due to its optimised flow behaviour. Experience our best-ever suction excavator and discover the advantages for improved efficiency and safety on your construction site.

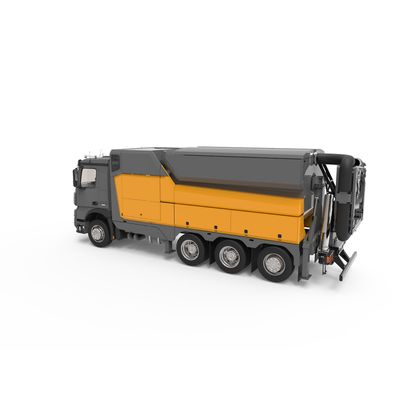

The possibility of emptying on both sides in conjunction with variable tipping heights on the ESE 8 RD 8000 provides a flexibility previously not known to suction excavators. Regardless of whether it is a storage location, skip or truck loading area, it can be emptied on both sides in variable heights, increments and tilt angles. The new central container mounting and the four supports with automatic levelling enable flexible emptying on both sides. The tipping height of 1.80 m to 2.50 m can be varied. The ESE 8 RD 8000 is equipped with four anti-roll bars that level themselves out at the touch of a button automatically. This ensures an optimal emptying position every time.

TILT TO THE RIGHT OR TO THE LEFT: The possibility of emptying on both sides in conjunction with variable tipping heights on the ESE 8 RD 8000 provides a flexibility previously not known to suction excavators. Regardless of whether it is a storage location, skip or truck loading area, it can be emptied on both sides in variable heights, increments and tilt angles. The new central container mounting and the four supports with automatic levelling enable flexible emptying on both sides. The tipping height of 1.80 m to 2.50 m can be varied. The ESE 8 RD 8000 is equipped with four anti-roll bars that level themselves out at the touch of a button automatically. This ensures an optimal emptying position every time.

The combination of road vehicle and road/rail technology enables an excavator to be deployed quickly and efficiently when work has to be carried out in the railway sector. RSP is currently the only manufacturer to have implemented this complex solution many times in conjunction with renowned partners.

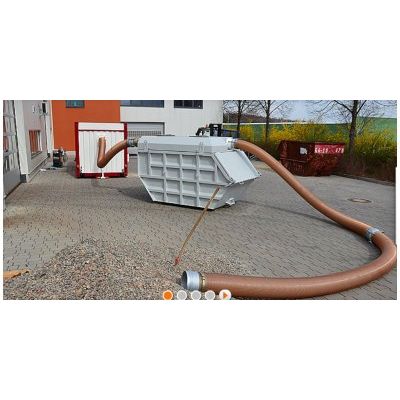

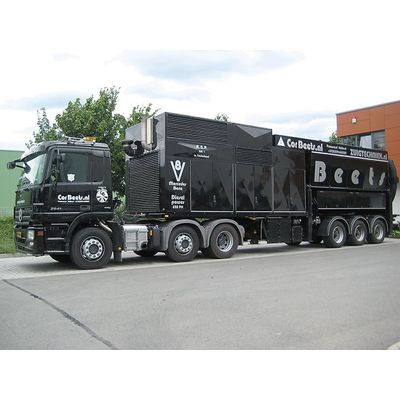

Stationary suction systems are particularly suitable for continuous suction tasks which extend over a longer period. Typical projects include the use of such a system in the construction of the Gotthard Tunnel in Switzerland and the cleaning of built-over canals in Venice. The size, stability and power of the suction box are individually matched to the customer`s specific requirements. In addition, long-life, powerful fans ensure that the suction box meets the requirements of day-to-day practice even under severe conditions.

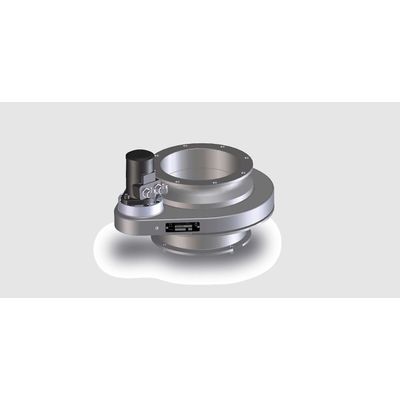

RM FIX & RM VARIO: The RSP rotating fitting has been developed specially for areas in which there is no risk of damage to underground cables and pipes. They enable effective production of point foundations. A wide range of suction fittings can be connected to the rotating device using the standard clamp system. The RSP rotating fitting is available in two different versions and has many advantages, such as: Matching all RSP suction excavators with a hydraulic jointed hose carrier and clamp system, Quick retrofitting, Simple and clean assembly, Time and cost saving, The highest flexibility, Increased resale value of your RSP machine.
