Retem 3DSteel Grid Ltd products

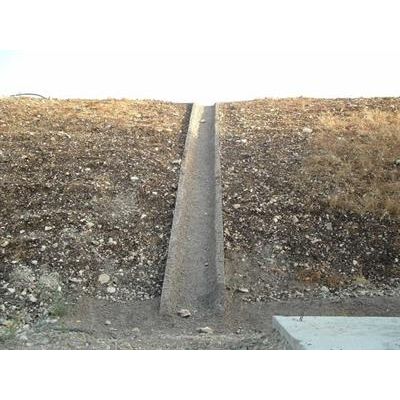

Using 3D steel grid, you can construct flume channels efficiently without the need of scaffolding. The flexibility of 3D grid enables designing the form of "half tube" on site easily, which is ideal for flumes channels.  The formed structure is strong and durable, and can withstand even sub-surface erosions, the main issue with flumes channels maintenance.

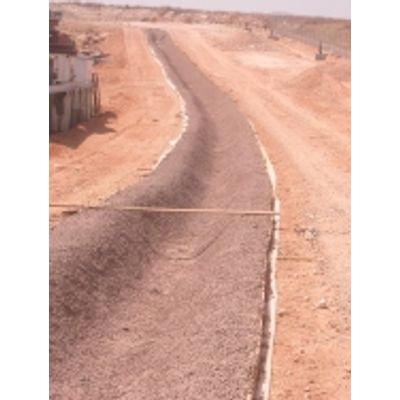

The unique characteristics of 3D steel grid makes it the optimal solution for lining drainage channels, especially under high folw rates conditions. The mechanical flexibility of 3D grid allows a fast and easy on-site installation without the need of skilled personnel. We recommend using oxide pigments for coloring the concrete lining and for a better blending in the environment (see gallery). Our company holds all the required components for inatlling the 3D grid.

3D Steel Grid as a three dimentional galvanised steel grid, comprised of 2 parallel steel stripes which are connected through a complex array of diagonal ribs. This forms a unique `cage` structure that, combined with a concrete casting, forms a rigid and robust layer of reinforced concrete.

The method of house construction with 3D grid enables a quick and easy construction of houses up to 3 levels high. This system includes unique reinfocement girders that, combined with the grid, supplies the skeleton a high mechanical strength. There is no need for highly skilled workers - installation teams can be easily trained for this purpose.

On many cases, a stabilization of slopes below highways or railways is required. The 3D steel grid, combined with a unique mixture of hydroseeding, offers a fast and effective vegetalization of slopes. Similarly, whenever there is a need to stabilize active river banks, the structural strength of 3D grid and its high durability to mechanical pressures gives optimal solution to these projects.

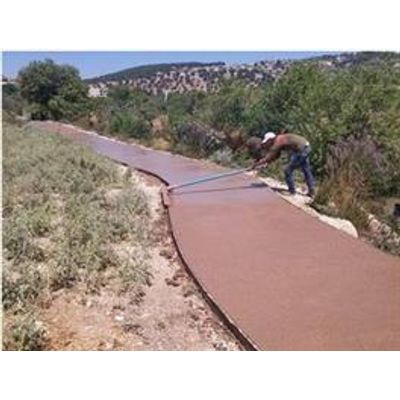

Constructing broadwalks and bicycle tracks from concrete rather than asphalt is of clear advantages - life span, minimal maintenance and flexibility in the construction.
