Revathi Equipment Limited products

The REL C750 Rotary Blast Hole Drill Machines is designed to drill holes ranging from 9 inches (229mm) to 11 inches (279mm). Our Blast hole drill is available in both Electric and Diesel Variants with two mast Options. The standard mast with a maximum single pass depth of 35 Feet and multipass depth of 175 Feet. The REL Super Maxx Mast with Maximum single pass depth of 55 Feet and Multipass depth of 220 Feet

The REL C650 Rotary Blast Hole drills are designed to drill clean holes of 6 1/4 inch (159mm) to 9 inches (229mm) diameter to a maximum depth of 120 ft (36.5m) using 30 ft (9m) long rods and 160 ft (48m) using 40 ft (12m) long rods. Our Blast Hole is available in three variants DH, DM, DI designed to deliver the required diameter hole based on your mining needs.

The REL C850 Super Maxx Blast Hole Drills are designed through Voice Of Customer-driven goals to perform in extremely difficult rock conditions that provide up to 70,000 to 99,000 lbs of bit load for 311 to 349 mm diameter hole applications

The C615 Jack-less DTH Drilling Rig is designed to drill holes of 4 inch (101.6mm) to 6 inches (152.4mm) up to a maximum depth of 52.5 ft (16m). Built to drill in limestone quarries, aggregate mines and various construction applications.

The C625H Jack-less Down the hole drill is capable of drilling clean hole of the diameter of 4 1/2 -8 inch. The sturdy mast of the C625H delivers a single pass depth of 6 meters and a maximum depth of 30 meters.

The REL C650H Down-the-Hole Blast Hole drill comes from the family of the C650 Series. Designed to drill clean holes of 6-1/2 inch (165mm) to 8 inch (203mm) diameter to a maximum depth of 175 ft (53.3m) using 25 ft (7.6m) long rods and 120 ft (36.5m) using 30 ft (9m) long rods.

REL is equipped to manufacture drills to perform at the highest of altitudes, lowest of temperatures facing the worst conditions. T 700 assures longevity through the sturdy structure that is put in place with high quality materials, carefully weld to give strength and power.

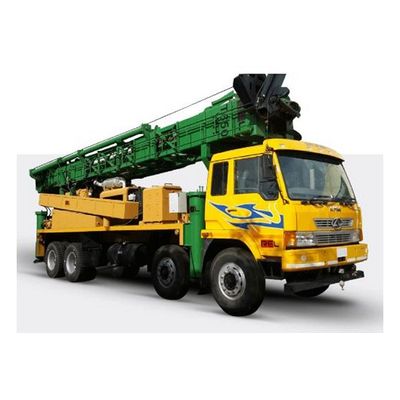

The REL T 650 Water well drill originally designed in the US, Is capable of Down the Hole and Rotary drilling from a diameter of 6 Inch to 12 ¼ Inch to a maximum depth of 300 Meters. Designed to drill in varying strata formations from soft alluvial to hard rock conditions. The sturdy mast is designed to handle 6 Meter long rods and comes with a six pod carousel for easy loading. Flushing is made possible using 1150/900 CFM – 350 Psi Air Compressor or Mud Pump of suitable capacity. The Drill is available with standard Hydraulic and Electric over Hydraulic Options.
