RIEGL Laser Measurement Systems GmbH products

The new RIEGL VUX-120 is a lightweight and versatile airborne laser scanner offering a wide field of view of 100 degrees and an extremely fast data acquisition rate of up to 1.8 MHz. Thus, it is perfectly suited for high point density corridor mapping applications. The measuring beam of the RIEGL VUX-120 is consecutively scanned in three different directions: it alternates from strictly nadir, to +10 degrees forward, and to -10 degrees backward. This allows data acquisition with an unrivaled completeness in data capture, especially in challenging environments with vertical surfaces and narrow canyons.

The RIEGL VUX-240 is a lightweight airborne laser scanner, especially designed for use on UAS/UAV/RPAS and small manned aeroplanes or helicopters. With its wide field of view of 75 degrees and an extremely fast data acquisition rate of up to 1.8 MHz, the instrument is perfectly suited for high point density corridor mapping applications.

The RIEGL VUX-1UAV is a very lightweight and compact laser scanner, meeting the challenges of emerging survey solutions by UAS/UAV/RPAS both in measurement performance as well as in system integration. With regard to the specific constraints and flight characteristics of the UAS, the RIEGL VUX-1UAV is designed to be mounted in any orientation and even under limited weight and space conditions. Modest in power consumption, the instrument requires only a single power supply. The entire data set of an acquisition campaign is stored onto an internal 240 GByte SSD and/or provided as real-time line scan data via the integrated LAN-TCP/IP interface.

The RIEGL miniVUX-1UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS.

The RIEGL VQ-840-G is a fully integrated compact airborne laser scanner for combined bathymetric and topographic surveying. The system is offered with an optionally integrated and factory-calibrated GNSS/IMU system and can be complemented with an optional camera or IR rangefinder. The VQ-840-G is a compact and lightweight LiDAR system to be installed on various platforms including UAVs.

The VQ-1560 II-S follows the successful concept of RIEGL’s proven dual channel laser scanner series. With increased laser power the operational altitudes are extended up to 1700m AGL at a pulse repetition rate of 4MHz, or up to 3900m AGL at a pulse repetition rate of 540kHz (all values given for 20% target reflectance). These improved maximum ranges allow an increase of the system’s productivity by about 25% for a very attractive point density range. Laser pulse repetition rates can be fine-tuned in 12kHz steps, enabling subtle optimization of acquisition parameters in order to meet specific project requirements.

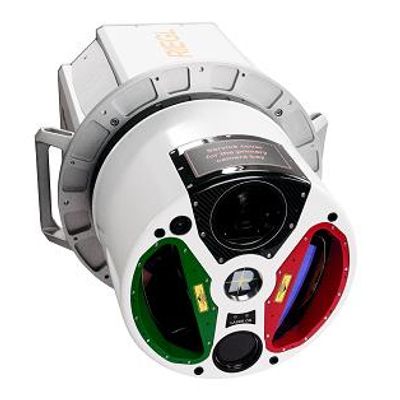

The RIEGL VQ-1560i-DW  is an airborne LiDAR scanning system offering two LiDAR channels of different wavelengths, green and infrared (IR). These wavelengths are well chosen to allow the acquisition of scan data of complementary information content, thus delivering two independent reflectance distribution maps, one per laser wavelength. Scan data acquired with the RIEGL VQ-1560i-DW are the input for well-established scan data processing methods but also for the development of highly sophisticated data processing and evaluation algorithms for new areas of application like vegetation mapping in agriculture and forestry. Thus the VQ-1560i-DW offers innovative technology for commercial as well as scientific and research applications. The VQ-1560i-DW provides a laser pulse repetition rate of up to 1MHz per LiDAR channel, resulting in a total of more than 1.3 million measurements per second on the ground.
