RIELS Instruments S.r.l. products

Level Controls - Ultrasonic Level Transmitters

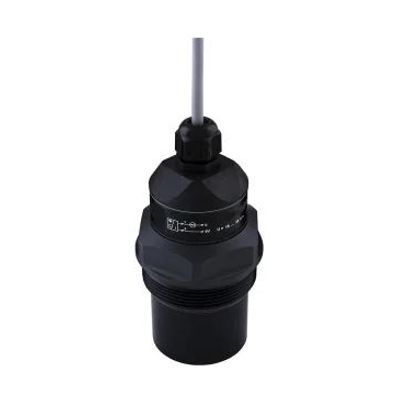

RIELS - Model RIL330 - Ultrasonic Level Transmitters

RIL330 Ultrasonic level transmitter for liquids, for water, waste water. Up to 20 m.

RIELS - Model RIL300 - Ultrasonic Level Transmitter

RIL300 Ultrasonic level transmitter for chemicals and wastewater. Up to 30 m.The RIL300 Ultrasonic Level Transmitters are measuring devices containing an ultrasonic transmitter, an electronic module and a large 4 digit display.

Level Controls - Radar Level Transmitters

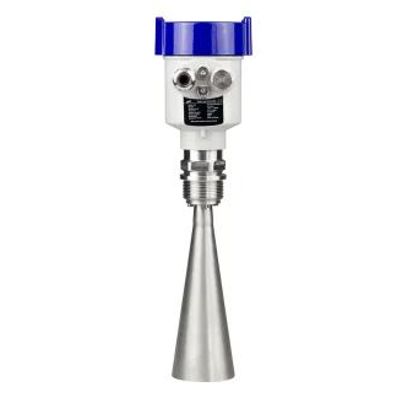

RIELS - Model RIL400 - Radar Level Transmitter

RIL400 Radar level transmitter for liquids and aggressive fluids. Frequency 26 GHz.RIL400 is a two-wire 26 GHz Radar Level Transmitter, for measuring ranges up to 20 m. Suitable for continuous monitoring aggressive liquids in storage tanks, in process tanks with agitators, vaporising liquids, substances with low dielectric constant or suitable for small, tall and narrow vessels. This radar level transmitter has an on-board display with configurable keyboard for programming. With the frequency of 26 GHz a narrow and concentrated radar cone is created which allows the use of small antennas with a reduced sensitivity for fixed obstacles.

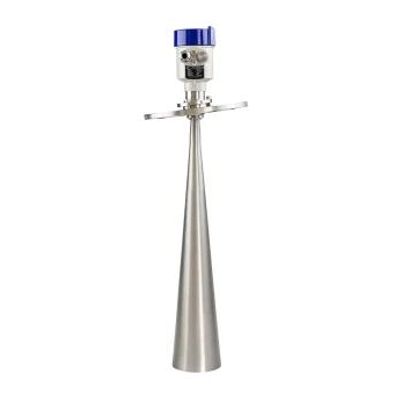

RIELS - Model RIL405 - Radar Level Transmitter

RIL405 Radar level transmitter for liquids and muds. Frequency 26 GHz. RIL405 is a two-wire 26 GHz Radar Level Transmitter, recommended for monitoring continuous liquid and sludge in storage tanks, in process tanks with agitators, vaporising liquids, substances with low dielectric constant and high temperatures and pressures, for measuring ranges up to 30 m.

RIELS - Model RIL410 - Radar Level Transmitter

RIL410 Radar level transmitter suitable for solids. Frequency 26GHz. RIL410 is a Radar Level Transmitter for continuous monitoring of solids in silos, including those with extreme process conditions with the presence of dust (cement, plastic / pellets, cereals, coal, wood dust, fly ash) and high temperatures (up to at 250°C).

Pressure Controls - Pressure Transmitters

RIELS - Model RIB100 - Pressure Transmitter

RIB100 Pressure transmitter for neutral, food or aggressive fluids. The RIB100 Pressure Transmitter is suitable for general industrial applications and, in a special version, also for the refrigeration and air conditioning sector, for the food industry or for medical gases.This very accurate pressure transmitter with a large number of variants is suitable for many applications. The measuring ranges, the output signals and the process connections can be supplied on specification according to the individual requirement.

RIELS - Model RIB300 - Pressure Transmitter

RIB300 Pressure transmitter for dirty fluids, food, pharmaceuticals. The RIB300 Pressure Transmitter is suitable for general industrial applications and for use with process fluids in the chemical, pharmaceutical or food industry.

Pressure Controls - Differential Pressure Transmitters

RIELS - Model PD-41X - Differential Pressure Transmitter

The PD-41X Differential Capacitive Pressure Transmitters are designed for measuring relative pressure values in the mbar and bar range. Thanks to the compensation with a digital mathematical model they reach accuracies of 0.1 %FS: in the temperature range between 10 and 40°C, this value also corresponds to the total error band.

RIELS - Model PD33X - Pressure Differential Transmitter

PD39X Differential pressure transmitter for neutral or aggressive media. In applications with a differential pressure 5% higher than the maximum standard pressure range, differential pressure measurement with two absolute pressure sensors offers greater advantages over conventional methods of differential pressure measurement.

Flow Meters - Turbine Flow Meter

RIELS - Model RIF200C - Turbine Flow Meter

The RIF200C is a turbine flow meter with an integrated display on the measuring body. It is designed to measure low-viscosity, impurity-free liquids, and its stainless steel structure ensures high resistance to corrosion. Based on the selected configuration, it can withstand temperatures up to 150°C.
