Ritmo America LLC products

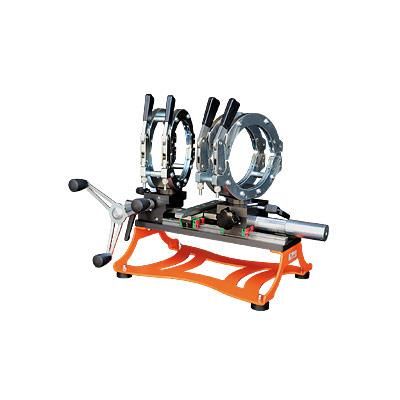

DELTA 160 M is a manual butt fusion welder for pipes up to Ø 160 mm or up to 5” IPS - 4” DIPS. Leading particulars are the restricted weight, minimum overall dimensions and versatility. Featuring: a machine body, two clamps with fast inserts system by locking buttons, an extractable electric milling cutter provided with a safety micro-switch, an extractable heating plate with “Digital Dragon” the high precision electronic thermoregulator (± 1° C accuracy) with digital display and regulating buttons. This system includes Led indicators to check if the machine is working normally (live tension and working temperature), contingent probe’s failures and/or temperature anomalies.

DELTA 200 M is a manual butt fusion welder for pipes up to Ø 200 mm (6" DISP). Leading particulars are the restricted weight, minimum overall dimensions and versatility. Featuring: a machine body, two clamps, an extractable electric milling cutter provided with a safety micro-switch, an extractable heating plate (with an independent thermometer to see the real working temperature and an electronic thermoregulator “Digital Dragon” with display).

DELTA 250 TRAILER MANUAL: self-aligning hydraulic butt fusion machine, suitable for welding underpressure pipes for water, gas and other fluids up to Ø 250 mm (8" DIPS). Welds according to the International standards ISO 21307 HIGH PRESSURE / ASTM F2620.

GAMMA 160 is a manual butt welding machine for HDPE and PP pipes up to Ø 160 mm. GAMMA 160 features special jaws for manufacturing elbows. Machine can also weld moulded fittings like bends, tees, wyes (Y) and flange necks up to Ø160 mm; short flange necks can be welded with the help of a stub end holder (on request), applied to the clamps. Machine body of GAMMA 160 is compact and easy to transport.

BASIC 160 EASY LIFE, thanks to a special gearcase, is able to manage the welding process in a semi-automatic way. The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters.

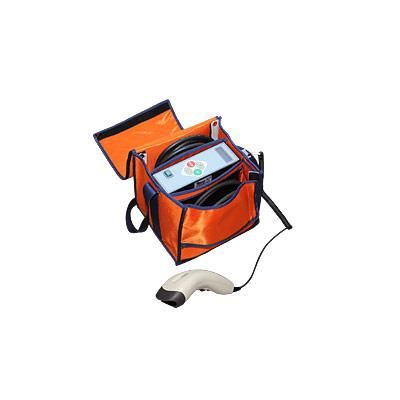

ELEKTRA LIGHT is an universal electrofusion machine, suitable for welding pipe/fittings for the transport of gas, water and for welding fire sprinkler system (PP-R,  HDPE, PP couplings from 8 to 48 V).

ELEKTRA S is an universal electrofusion machine characterized by high performance and reduced weight. It is available in two different power supplies: 230V and 110V. The welding machine has been designed to weld EF fittings up to OD 200 mm (230 V version) or 315 mm (110 V version) for PE, PP, PP-R high pressure pipelines. It can weld EF fittings within the range 8 ÷ 48 V. Provided with:

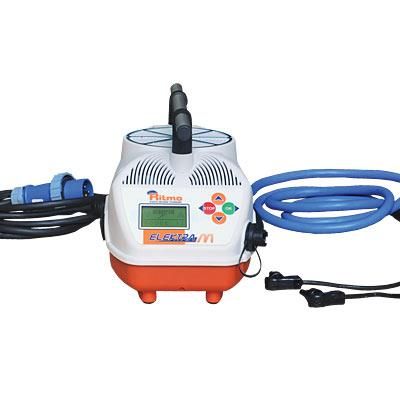

ELEKTRA M is an universal electrofusion machine characterized by high performance and reduced weight. It is available in two different power supplies: 230V and 110V. The welding machine has been designed to weld EF fittings up to OD 315 mm (230 V version) or 500 mm (110 V version) for PE, PP, PP-R high pressure pipelines. It can weld EF fittings within the range 8 ÷ 48 V. Provided with:

PROFITTINGS 6 is the workshop welding machine designed to fabricate fittings like elbows up to Ø 6" DIPS - 200 mm; Tees, crosses and wyes (Y) up to Ø 6" IPS by joining pipe segments, with the help of special jaws. PROFITTINGS 6 can also weld special and moulded fittings such as elbows, tees and flange necks, thanks to a different type of special jaws.
