Rivulis Irrigation, Ltd products

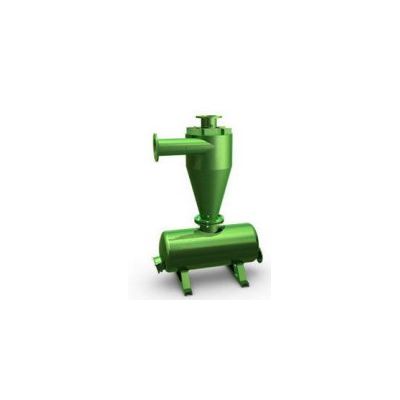

The F1000 Hydrocyclone Sand Separator creates a centrifugal action that moves the water around the edge of the body, throwing the sand and heavy materials to the outside of the cyclone. The heavy materials then fall into the underflow chamber to be collected. Rivulis provides the proper sized underflow chamber to match the performance of each size of hydrocyclone sand separator, preventing the collected sand from moving back into the water flow. The F1000 Hydrocyclone Sand Separators are available with several options including various flow rates and chamber sizes.

F3100 Metal Screen Filters (Manual) are excellent filtration choices for removing heavy inorganic particulates from water, such as sand. Manual screen filters are designed to remove particles from the water by passing the water through an open area in the screen. The dirt particles are collected on the screen and can be removed when the filter is opened and the screen is cleaned manually. The F3100 Metal screen filters is used in conjunction with sand separators and media filter arrays as a control filter and as a back up filter in the field. The F3100 Metal Screen Filter can be used with well water that is relatively clean.

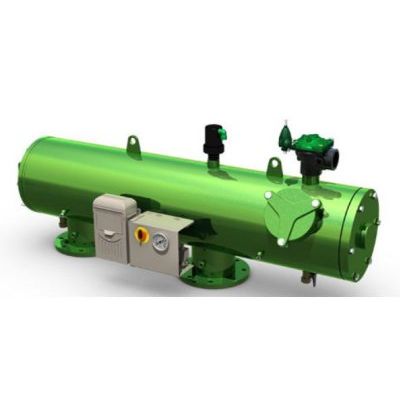

The filter has a compact body design that requires a small footprint. The flushing mechanism has several advantages including no requirement for AC power because of its hydraulic motor that powers the flushing cycle. The flushing process is done by highly efficient suction nozzles. The entire screen is exposed to the flushing process because of the continuous linear movement of the collector assembly. The F3200 Metal Screen Filter with Hydraulic operation, is used as a primary filter for water containing large quantities of dirt; up to 50 ppm and from water sources such as rivers, lakes, wells, and recycled water. These filters are self-cleaning and continue to operate during the flushing cycle.
