Robydome Ltd products

The WTM-1 is a self-contained smart box in the store linked to temperature probes and ventilation system sensors. All the vital information to manage store conditions is available instantly, and in real-time, using a clear and simple web-browser page to check and make changes. The highly intuitive control programme is designed from years of experience and knowledge of grain store installation and operation, with fully automatic or manual control.

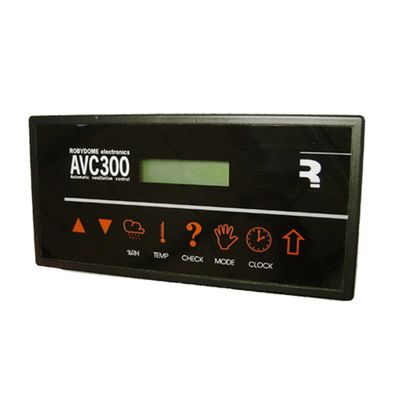

The AVC300 utilizes ambient temperature and humidity as well as crop temperature probes to control the ventilation fans in a grain store. Set points allow you to control how dry the air should be as well as setting the temperature you would like the crop cooled down to. Based on these settings the AVC will bring on an off the ventilation fans when the conditions are right.

Storecheck systems are a robust software suite designed to meet the needs of medium to large storage sites. It features temperature and humidity monitoring, differentail fan control, record keeping and alarm conditions. All in and easy to use interface allowing you to see the status of your store at a glance. Particularly suited to grain silos, the storecheck system interfaces with junction boxes on the top of the grain silos and collects the temperature readings from inside the silo using RTC temperature cables, each temperature cable contains several temperature sensors spaced down it`s length thus alowing the monitoring of temperature at different hights in the silo.

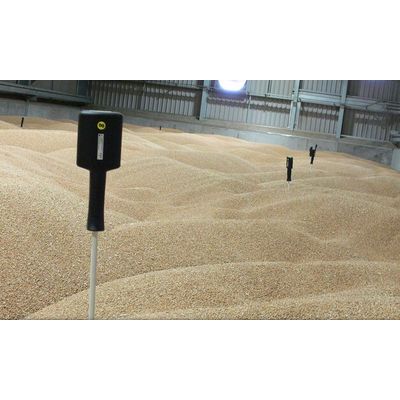

The LSW33 is a 2 or 3 meter long temperature probe designed for semi-permanent sensing, probes are inserted into the bulk grain and transmit their temperature readings to the LSW33-RE wireless reciever. Wireless temperature probes are easy to use, easy to install and require a minimum of walking across the stored crop. The probes have a line of sight range of 100 meters. They are powered by 3 AA Lithiam batteries, which require changing every two years.

The HTM300 is a comprehensive, handheld temperature monitor. Allowing you to take temperature readings inside your grain store. Designed for use with our range of wired and wireless temperature probes, the HTM300 can read upto 32 probes in 32 zones. It can log these readings and can download them to a PC for record keeping perposes.

The HTM200 is a low cost, simple, handheld temperature monitor. Allowing you to take temperature readings inside your grain store. Designed for use with our range of wired temperature probes, the HTM200 can read upto 4 probes at once, or be used with a single probe for spot readings.

Network Interface module links any P.C. to the RS485 network. The module also supplies processed power to the system’s electronics.
