ROCKDRIL
8 products found
ROCKDRIL products

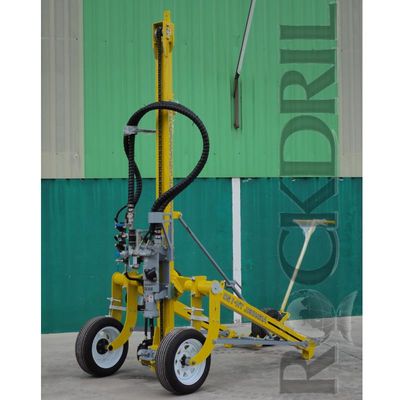

ROCKDRIL - DRILLING RIG (TYRE-MOUNTED)
The Ecomobil 432 is a wagon type, 100% pneumaticdrilling rig which can be easily moved or towed using its two tires. Additionally, a 3rd tire can be used for ease of movement. it is designed for drilling with DTH hammer or rotary drag bits up to a depth of 30 meters using 40, 60 or 76 mm DTH drill rods. Depending on geological formations, compressor capacity, skill of the operator and weight of the tools being used greater or less depths may be achieved.
ROCKDRIL - DRILLING RIG (SKID-MOUNTED)
The Ecoskid 432 is a skid mounted, 100% pneumatic drilling rig which can be easily moved or towed by pushing/pulling its skid base. It is designed for drilling with DTH hammer or rotary drag bits up to a depth of 30 meters using 40, 60 or 76 mm DTH drill rods. Depending on geological formations, compressor capacity, skill of the operator and weight of the tools being used greater or less depths may be achieved.
ROCKDRIL - MMD-15
The MMD-15 is a self-propelled mini hydraulic drilling rig suitable for drilling with down the hole hammer and/or rotary drag bits. The MMD-15 is capable of drilling up to 30 meters in 76mm diameter, greater depths may be achieved depending on the geological formation, compressor capacity, operator skill and weight of the drill tools being used. It is the ideal rig when drilling is needed in difficult access areas.
ROCKDRIL - TWD-20
The TWD-20 is a simple, lightweight and portable hydraulic drilling rig with 2 modules, it is designed to have low maintenance costs and to be transported by a small pick up truck or ground personnel for drilling in difficult access areas. It can also be adapted to be truck/trailer mounted and can be easily modified for different drilling applications. The TWD-20 is capable of frilling up to 100 meters depth in optimal conditions depending on the geological formation, compressor capacity, operator skill and weight of the tools being used. Suitable for; -Water Well -Micro-Piles -Servicing holes -Blasting -Reverse circulation -Anchoring -Access Roads -Others In addition, modifications can be made in order to meet any of our customers requirements.
ROCKDRIL - ECODRIL-432 000
The ECODRIL-432 is a portable pneumatic drilling rig which can be dis-assembled into 4 modules without the use of any special tools, each module weighing less than 70 kg allowing it to be easily transported by ground personel. The ECODRIL-432 is capable of drilling up to 30 meters, depending on the geological formation, compressor capacity, operator skill and weight of the drill tools being used. It is the ideal rig when drilling is needed in extremely inaccessible locations. Suitable for; -- Seismic - Micro-piling - Access Roads - Anchoring -Blasting -Servicing Holes - Others In Addition, modifications can be made in order to fit any of our customers drilling rigs.
ROCKDRIL - AIRMOBIL-432 & TH120
The AIRMOBIL-432 and the AIRMOBIL-TH120 are a chassis mounted drill rig which is moved by two tires. The AIRMOBIL-432 is designed for drilling with down the hole hammer, drag bits from 2 1/2" (64mm) up to 6" (152mm), to a depth of up to 50 meters, depending on geological formation, compressor capacity, skill of the operator weight of the hammer, bit, drill pipe and the hole diameter. And its twin sister, the AIRMOBIL-TH120 shares the same body chassis but for drilling with a pneumatic top hammer for rotary percussion or percussion only, up to a depth of 15 meters with R25, R32, R38 or T38 rods depending on geological formation, compressor capacity, skill of the operator and weight of the tools being used. This drill rig can be applied in a wide variety of applications: -ANCHORS -EXPLORATIONS -MINE STRIPPING -BLAST HOLES -CEMENTATIONS -WATER WEL -SEISMIC EXPLORATION -DRAINAGE HOLES -BLASTING -OTHERS
ROCKDRIL - TWD-36
The TWD-36 is a simple 100% Mechanical drilling rig mounted on a chassis made to order to fit on any light pick-up truck or to be trailer or crawler mounted. It is designed to have low running and maintenance costs. The TWD-36 is designed to drill up to 150 meters depth in optimal conditions depending on the geological formation, compressor capacity, operator skill and weight of the tools being used. Suitable for; -WATER WELLS -MICRO PILES -SERVICING HOLES -BLASTING -REVERSE CIRCULATION -OTHERS
