Rodeo Valve Ltd. products

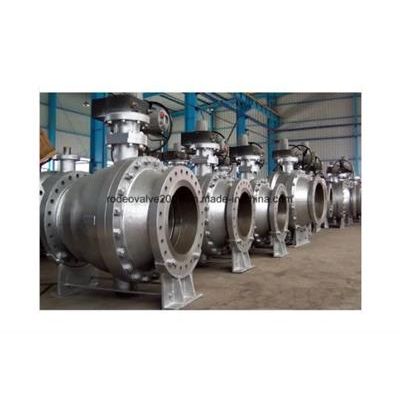

Ball Valve, Trunnion Mounted Ball, 2-PC Full Bore, 2-20 Inch CL150-2500 Type: Ball Valve 2"-20" Flanged RF. Ends: Flanged RF. Standard: API 6D. Ball: Trunnion Mounted Ball. Body: ASTM A216 WCB, Ball: SS304, Seat: PTFE,STEEL,Stellite. Size: 2-20 Inch. Pressure: Class 150-2500. Operator: Gear/Pneumatic/Electric actuator.

Pruduct No.: RODEO0002BV. Ball Valve, Trunnion Mounted Ball, 2-PC Full Bore, 2-20 Inch CL150-2500. Type: Ball Valve 2"-20" Flanged RF. Ends: Flanged RF. Standard: API 6D. Ball type: Trunnion Mounted Ball. Body: ASTM A216 WCB. Ball: SS304. Seat: PTFE, STEEL, Stellite. Size: 2-20 Inch.. Pressure: Class 150-2500. Operator: Gear/Pneumatic/Electric actuator.

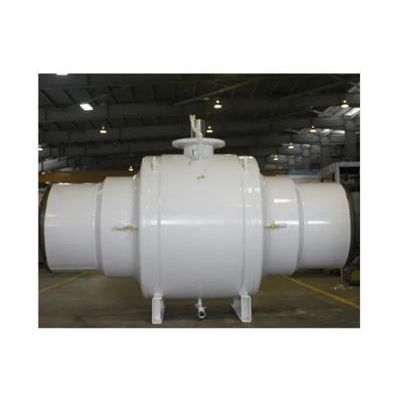

buried fully welded ball valve consists of fully welded body and carbon fiber reinforced Teflon seal. There are varieties of drive manual, such as manual, electric and pneumatic. Valve can be directly buried in the ground without construction of high large valve well, just set up a small shallow in the ground, greatly saving construction costs and engineering time.

Bronze wafer butterfly valve. Size Range: DN40~DN600. Pressure: PN10, PN16, Class125. Body Materials: Bronze. Seat Materials: NBR, EPDM,. Disc Materials: Al-bronze C958. Stem Materials: SS416, SS304, SS316. End Connection: Wafer. Operate: Manual, Worm gear, Pneumatic, Electric-Motorized. Disc type: One stem no-pin.

Size Range: DN50~DN300. Pressure: PN10, PN16, Class125. Body Materials: Cast Iron, Ductile Iron, WCB , Stainless Steel, Bronze. Seat Materials: NBR, EPDM, VITON, PTFE. Disc Materials: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958. Stem Materials: SS416, SS304, SS316. End Connection: Wafer. Operate: Manual, Worm gear, Pneumatic, Electric-Motorized. Disc type: With-pin, One stem no-pin, Double stem no-pin.

Size Range: 1 1/2"~24"(DN40~DN600). Pressure: PN10, PN16, Class150,10K. Body Materials: Cast Iron, Ductile Iron , WCB , Stainless Steel, Bronze. Seat Materials: NBR, EPDM, VITON, PTFE. Disc Materials: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958. Stem Materials: SS416, SS304, SS316. End Connection: Wafer. Operate: Manual, Worm gear, Pneumatic, Electric-Motorized. Disc type: With-pin, One stem no-pin, Double stem no-pin.

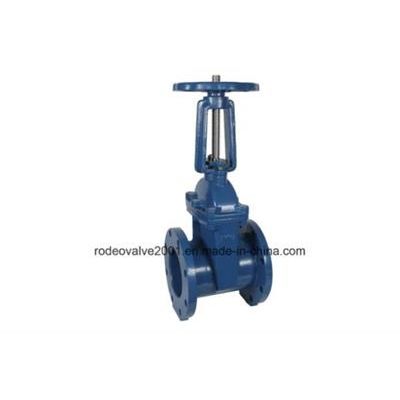

Product NO.: RODEO GV0001. Name: ANSI Rising Gate Valve. Size:2"-24". Pressure:125LB/150LB. Connection type: flanged type.

Standard: DIN3352 F4  BS5163. Material: ductile iron. Inner Coating: Fusion Bond epoxy powder. External coating: Blue fusion bond epoxy powder. Quality Control: Metal-graphic examination; Spectrum Analysis; Hardness Test; Tensile Test; Crush Test.. Size Range: DN50- DN1200. Joint type: Flange, flange drilling according to EN1092. High strength ,lighter than cast iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life time. Testing: Factory inspection report, SGS inspection and the third inspection party;. Class Option: K12, K9, C25, C30, C40. Gasket: EPDM or SBR.

Item name: 200 PSI -OS&Y Type Flanged End Gate Valve. Certificate: FM approved. Norminal pressure: 200PSI. Groove standard:  metric or AWWA C606. Design standard: AWWA C515. Coating: epoxy resin coating. Size: 2"-12". Application:  fire fighting gate valve.

RODEO can offer almost full range of this series product. For easy site maintenance services globe valves of size 2"~20",class 150lb~300lb are interchangeable. This series of products are API591, ISO 15848 class B, TA Luft certified. To ensure casting integrity, all pressure contain castings are from our own foundry.
