The new TNxxS sensors complete the system A100 by sensors, which are provided with a plug connection. The new connection cables are now available with both straight and angled connectors. The TN sensors are single-sided contacting sensors with a permanent magnet. This results in a very low energy consumption and a very fast response time. They are suitable for steel sheets and especially for tinplate. The 4 sensors TN08S, TN15S, TN30S, TN40S cover a measurement range from 0.08 to 3.6 mm (based on single sheet).

The Eagle Eye AA is capable to detect especially structural material boundaries in metals. These might be for example air gaps between butt joins or stacked sheets. Even metallic transitions with different types of metals are detected reliably. In the detection of ferromagnetic materials the sensor indicates a very significant signal which is affected only by the number of material bounderies. Applications solvable only with complex systems become so far possible with this sensor type. The analog sensor signal output can be processed rapidly with a performant PLC. The universal control unit XA100-S may be used for a simple and quick integration in an existing system. The control unit provides switching signals for  norm-, under- and over size limits.

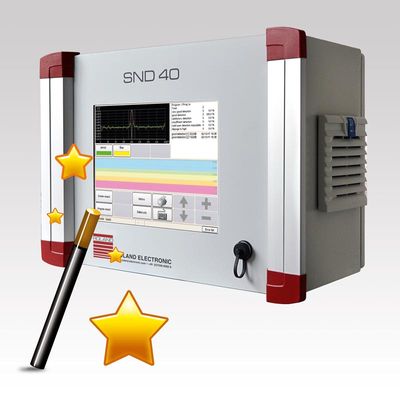

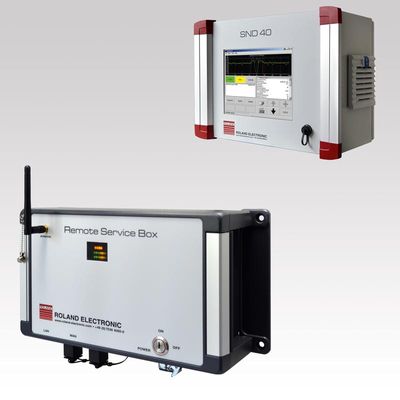

SND40 offers a maximum of flexibility in Weld Seam Detection. The great benefit lies in the combination of magnetic flux leakage and eddy current technology; the customer can process all sort of metals and can expect even at cold drawn or heat treated materials a remarkable reliability. The system is able to process tube diameters from 5 to 1000 mm (0.19 to 39.37 in) at a wall thickness up to 12.5 mm (0.49 in). New wizards for the Weld Seam Detection System SND40. The new wizards minimize the effort while setting up the system. The additional manual can be downloaded here.
