Rolbatch products

Single screw extruders 45-150 mm (capacity from 70 kg), laboratory single screw extruders: 25-30-45 mm (capacity: 5-20 kg), L/D: 25:1, 30:1, 33:1, 36:1, 37:1, for production of films, profiles, pipes, sheets, etc, new machines, spare parts available.

In our offer double screw extruders and compounders, screw diameter: 25 mm, 45 mm, 60 mm, 75 mm, 90 mm, 110 mm, 132 mm, 150 mm, etc. We can offer as well complete extrusion and compouding lines.

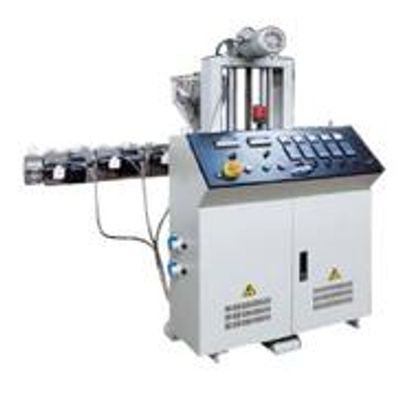

We offer single and double screw laboratory extruders: Screw diameter: 25 mm, 35 mm, 45 mm, L/D = 25 (for PVC), and 30-33 (for PE, PP), with Siemens engines, with ABB inverters, we offer as well tooling for our extruders, we offer as well screws and barrels.

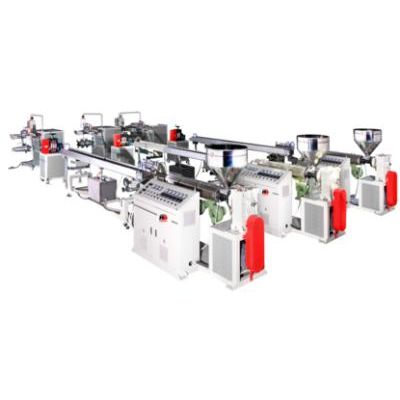

We offer high precision ABS / PLA filament extrusion lines. Tolerance of ready filament +/- 0,05 mm. High precision laser control system . Advanced winding.

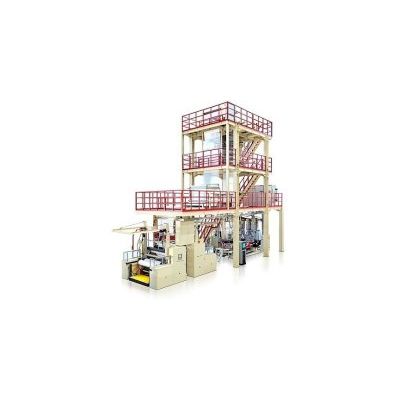

3-5 layer blown film lines (New Design PREMIUM). RBMX 5-8 layers Coextrusion Water Quench Blown Film Line. RBMX3 Three-layer Coextrusion Water Quench Blown Film Line. RBM5 Five-layer Coextrusion Non Barrier Blown Film Line. RBM3 Three-layer Coextrusion Laminating & Packaging Film Blown Film Line. RBM3NA Three-layer Coextrusion Agricultural Blown Film Line. RBEW3B Three-layer Coextrusion Extra Film Width Packaging Blown Film Line.

The line adopts the world advanced high-tech patent technology to produce both symmetrical and asymmetrical barrier films with excellent performance such as outstanding formability and high barrier performance. With more than 3 barrier layers, the film products are widely used in packaging of food, farming products, petrochemical and medical products. Automatic die head, double water cooling ring, sizing water ring and oscillating haul-off system can be applied to meet different requirement and formula.

This line, using multi-layer co-extrusion die head, water cooling and oscillating haul-off, is suitable for processing resins such as LDPE, mLLDPE, LLDPE, PP, dual copolymer PP, triple copolymer PP for packaging films and lamination film with good performance of barrier, sealing, transparency, light-tight, cooking, preservation, thermal sealing and printing properties. The multi-layer coextrusion packaging film could replace most of CPP and BOPP plastic film for food, agricultural, medical, agricultural chemicals, petrochemical industry, commodity and military products packaging at high quality but low cost.

Energy saving and high precision line. Latest development drives based on a modular design. PlastControl gravimetric feeding system. PlastControl double Air Ring. PlastControl measurement and thickness control system. Innovative energy saving solution for barrel and die head. This line can produce: 3 or 5 layer blown film. Film width from 1300-2100 mm.

Compared with three-layer coextrusion film, five-layer coextrusion PE film is more flexible in formula, and it has more advantage on the layer ratio and thickness control. Five-layer Coextrusion Blown Film Line (PE) is specified to produce five-layer coextrusion PE film. The die head, processed in CNC milling center, adopts side feeding with predistribution spiral mandrel structure and compact design. The whole line will improve at least 20% of energy saving efficiency, and shorten at least 15% of the raw material changeover time.
