ROMOLD GmbH products

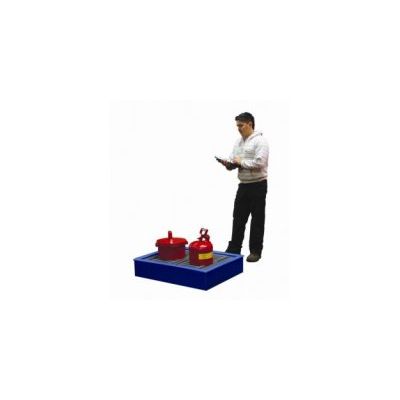

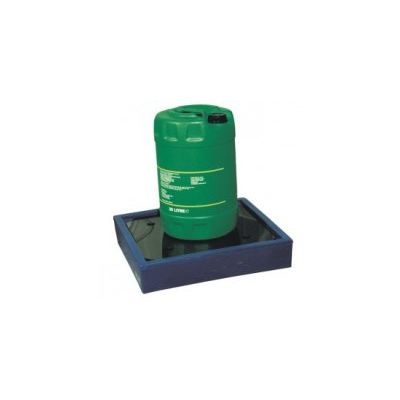

27,5 litre sump capacity. Manufactured from 100% polyethylene, our Spill Tray range is the ideal solution for catching spills in the work area and the storage and handling of smaller drums and cans. They are compact and lightweight and can fit into small areas. Spill Trays are strong and compatible with most liquids. Dimensions: 550 x 550 x 110 mm, Weight: 5 Kgs.

100 litre sump capacity. Manufactured from 100% polyethylene, our Spill Tray range is the ideal solution for catching spills in the work area and the storage and handling of smaller drums and cans. They are compact and lightweight and can fit into small areas. Spill Trays are strong and compatible with most liquids. Dimensions: 920 x 720 x 175 mm, Weight: 15 Kgs.

Overflow Tray for use with BB1 with overflow into the main sump. Picture shows IBC on BB1 with BB1T attached. Dimensions: 525 x 545 x 835 mm, Weight: 8.5 Kgs.

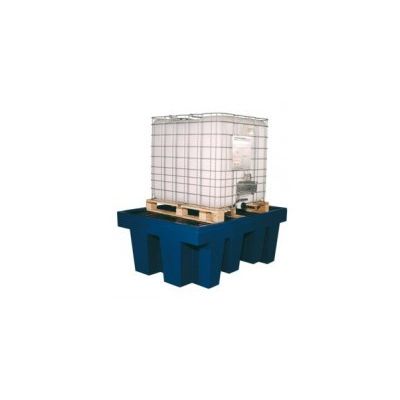

Polyethylene IBC Spill Containment Pallet -A large capacity spill pallet, moulded from medium density Polyethylene suitable for use with most common footprint of 1000ltr intermediate bulk container (IBC), it complies with the 110% bund regulations, has broad range chemical compatibility and is rugged enough to withstand constant use. The removable deck provides easy access for cleaning. Dimensions: 1760 x 1350 x 710 mm, Weight: 107 Kgs.

Polyethylene IBC Spill Containment Pallet. A large capacity spill pallet, which complies with the 110% bund regulations designed for use with most common footprints of 1000ltr intermediate bulk container (IBC). The IBC sits on integral support columns above the sump and the unit has broad range chemical compatibility. Dimensions: 1590 x 1455 x 715 mm. Weight: 80 Kgs.

ROMOLD PE road gully ND 450, for grating 500 x 500 mm class C 250 or class D 400 in accordance with DIN EN 124 / DIN 1229, material PE, made with 100% virgin material with no recycled parts or foaming agents. Resistant to agressive wastewater, road salts and frost, consisting of bottom part (shorting dimension 460 mm) and turnable grating adapter. Bottom part: Round bottom with flat support surface (self-standing), optimized form for cleaning with suction tube, outlet connection ND /OD 200 or 160 mm, gradient app. 1%, outlet app. 55 cm above ground, storage volu- me app. 76 liter.

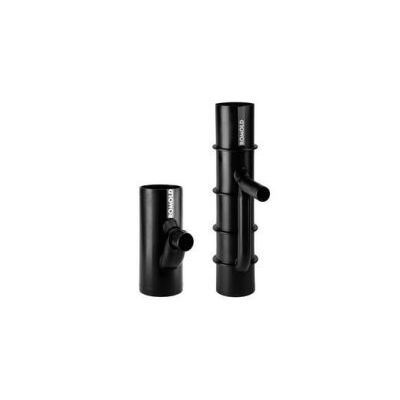

ROMOLD PE-road gully ND 400, with outlet ND 150 for grating 500 x 500, outlet connection ND /OD 160, for connection of PVC pipe in accordance with DIN EN 1401, for PP pipe in accordance with DIN EN 1852 or for PE pipe in accordance with DIN 8074/75 or DIN EN 12666. Road gully with stench trap/siphon incl. connection for camera inspection or cleaning device. Connection with plug made of NBR for sealing in operating state and for extraction during cleaning and inspection procedures. Height: 73 cm.

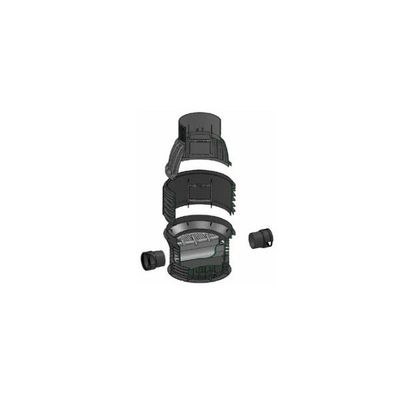

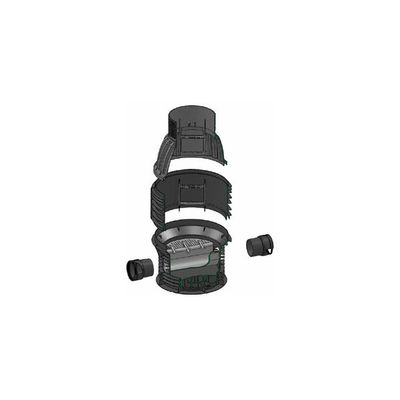

Socket Ended Manholes: According to this slogan ROMOLD developed and manufactured a chamber which combines all the latest insights and technologies. The brand-new ROMOLD PP-DN 1000 chamber is the first chamber which was built after the publishing of the DIN EN 13598-2 and in full compliance with the included guidelines and requirements.

Eccentric, with corrosion-resistant steps in light-grey. Our product range spans a high-quality standard repertoire that offers you complete freedom in planning. We have the right solution for any needs.

Benefits Of Romold Chamber System DN 800. space saving, ideal for inner city areas. possibility to enter for staff
cost-favorable purchase and maintenance. ideal connection between control chamber and manhole. high quality chamber system. full possibility of controlling and cleaning.
