ROShell FZC products

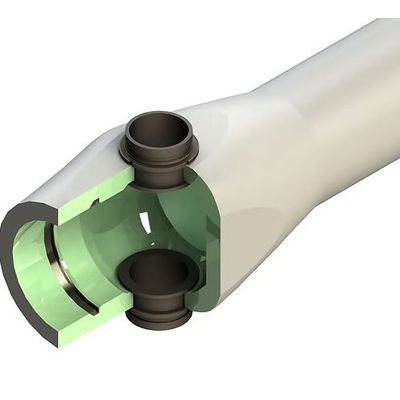

The ROShell RS.80 series is engineered to serve as a robust membrane housing for reverse osmosis systems utilizing 8-inch diameter membranes. These housings are crafted to deliver sustainable performance for long-term operations. The side ports, measuring up to 4 inches, provide extensive multi-porting capabilities, while the flat inner surfaces of the heads ensure a reliable, leak-free seal. Installation is simplified with a threaded nut fastening system, offering a quick and secure connection. The design also incorporates an integrated locking slot within the housing shell to bolster structural integrity. A quick-release spiral retaining ring facilitates easy installation and removal of the end plate assembly, streamlining maintenance processes. Various pressure ratings are available, ranging from 300 PSI (20 BAR) to 1200 PSI (83 BAR), accommodating diverse operational needs.

The ROShell Cube RSC.80 series is engineered as a robust membrane housing tailored for accommodating 8-inch diameter reverse osmosis membranes. This series prioritizes durability and reliability, suitable for long-term continuous operations. The integration of an innovative inside port system enables direct connections between multiple housings, with diameters reaching up to 4 inches, eliminating the need for external pipe manifolds. The construction includes an integrated saddle system which provides stabilized support, thus negating the requirement for external frames and promoting a simplified installation process. Furthermore, it features side ports that support multi-porting capabilities. The design ensures secure, leak-free seals facilitated by flat inner surfaces and a threaded nut fastening system for hassle-free installation. End plates are designed with a locking slot for structural integrity, and a quick-release spiral retaining ring simplifies both installation and maintenance tasks.

The ROShell Cube RSC.80 series is a line of pre-assembled membrane housings designed for ease of installation and integration within reverse osmosis (RO) systems. Delivered as a ready-to-install skid, the RSC.80 offers inside port connections which facilitate the seamless integration of multiple housings. This series is uniquely supported by an innovative saddle system, which provides secure housing support and simplifies installation processes. The addition of perforated profiles on the saddles creates versatile attachment points crucial for essential RO system components, including piping, valves, and instruments. This thoughtful design ensures that various components needed for efficient RO functioning can be properly aligned and securely attached, thus optimizing system performance and reliability. The turnkey nature of the ROShell Cube RSC.80 makes it an advantageous choice for projects requiring efficient and straightforward implementation.
