RPE S.r.l. products

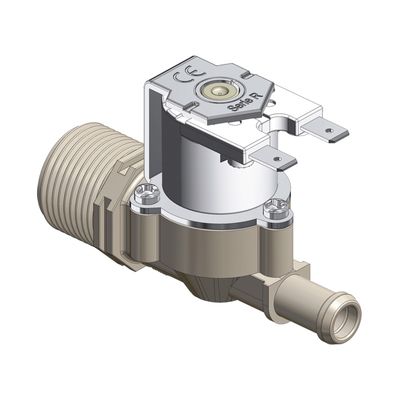

R Series Single: 2/2 solenoid valve, dn 10mm, servo-assisted, NC (normally closed), 1 output. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading.

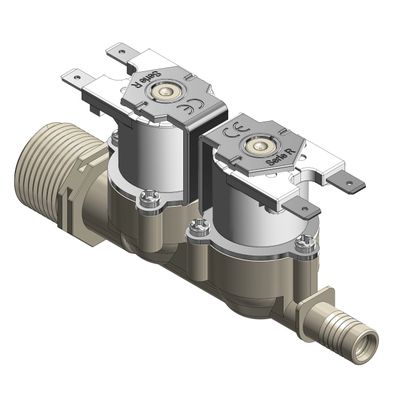

Double R series: 2/2 solenoid valve, dn 10mm, servo-assisted, NC (normally closed), 2 outputs Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading.

R Mini series: solenoid valve 2/2, dn 11mm, servo-assisted, NC (normally closed), 1 in, 1 out. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading.

R Mini G series: 2/2 solenoid valve, dn 11mm, servo-assisted, NC (normally closed), 1 input, 1 output. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading.

Series R Dispenser: 2/2 solenoid valve, dn 10mm, servo-assisted, NC (normally closed), 2 inputs, 1 output. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version.

R Series Dispenser: 2/2 solenoid valve, dn 10mm, servo-assisted, NC (normally closed), 3 inputs, 1 output. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version.

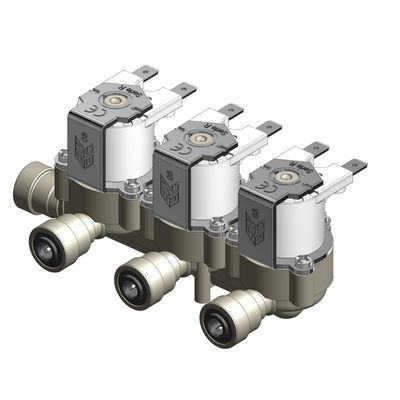

Modular R Series: 2/2 solenoid valve, dn 11mm, servo-assisted, NC (normally closed), 1 input, multiple outputs with PG10mm. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version.

Modular R Series: 2/2 solenoid valve, dn 11mm, servo-assisted, NC (normally closed), multiple inputs and outputs. Also available with direct drive and in the NO (normally open) and bistable version.

Electrical Connections: Faston 6,3 x 0,8 mm.  Unipolar wires max 5000 mm.  Bipolar wires max 5000 mm.

Physical characteristic: Valve body: PA 66 - 30% glass fiber.
