RYCOM Instruments, Inc.
5 products found
RYCOM Instruments, Inc. products
RYCOM - Model Pathfinder PLS - Utility Locator
The Pathfinder PLS® utility locator by RYCOM Instruments is a state-of-the-art system designed to deliver precise and efficient location of cables and pipes. Built on the foundation of the proven Pathfinder SAF Technology™, this utility locator employs advanced signal acquisition and filtering technology to enhance accuracy. It features FrequencyFlex™ allowing users to select from multiple active and passive frequencies to tailor the system to specific locating needs while minimizing interference. The transmitter offers enhanced induction capabilities and can apply multiple frequencies simultaneously. The ergonomic receiver provides depth measurements up to 25 feet and signal strength feedback, making it effective in identifying utilities in crowded spaces. Optional accessories such as the A-frame GRP for fault locating and the Sondes for identifying blockages in non-pressurized conduits further increase the versatility of the Pathfinder PLS®. This high-performance locator system is suitable for a variety of applications in utility locating, ensuring reliable and accurate detection every time.

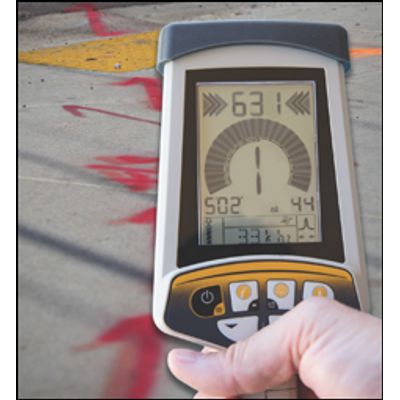

Rycom Instruments - Model SnapTRACK - Precision Locating System

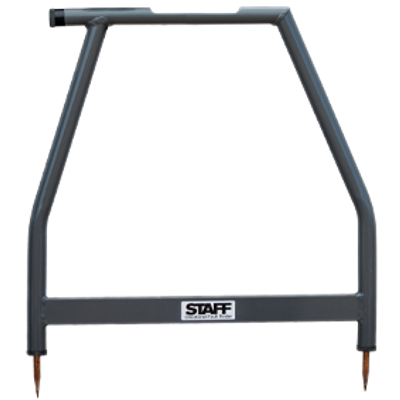

The SnapTRACK Precision Locating System, produced by Rycom Instruments, is designed to offer an advanced solution for utility locators. Featuring Pathfinder SAF Technology at its core, it incorporates Rycom’s most sophisticated signal acquisition and filtering technology. The system's FrequencyFlex capability allows users to customize frequency settings to reduce interference and accurately locate utilities even around bends and faults. With multiple passive frequencies, it can identify live lines based on their electromagnetic fields without requiring a transmitter. The updated transmitter functions include enhanced induction capabilities, multi-frequency coupled induction ranging from 8 kHz to 118 kHz, and automatic impedance matching for better direct connections. Available in 5 or 10-watt versions, the transmitter can apply two frequencies simultaneously, illuminating the entire site for efficient location. The SnapTRACK system features an ergonomically designed receiver with a backlit digital display, providing depth measurements up to 25 feet and current measurements for identifying target utilities in crowded spaces. Optional features like the STAFF GRP probe enhance fault locating capabilities, while the Sondes enable pinpointing blockages within non-pressurized conduits. The system is built to offer reliability and precision, simplifying the process of utility locating.

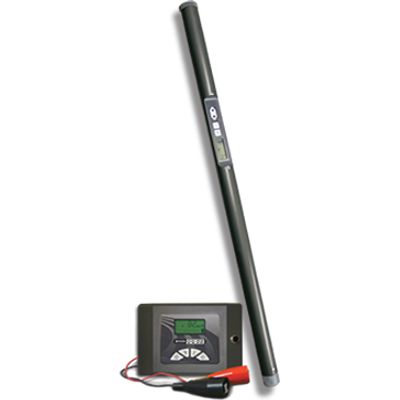

Rycom - Model STICK v3 - Cable and Pipe Locator
The STICK v3 Cable and Pipe Locator is a robust, high-performance device designed to meet diverse locating needs with precision. Leveraging Pathfinder SAF Technology™ at its core, this locator ensures accurate detection in crowded easements, extended pipe runs, and demanding environments. Constructed with durable aluminum housing, it is weather-sealed to ensure longevity. The receiver features an LCD screen displaying relative and actual signal strength and includes a variable audio pitch speaker to aid in signal detection. The locator offers multiple active frequencies ranging from 50Hz to 82kHz, providing flexibility for complex locating scenarios. It supports transmitter induction, coupler induction, and direct connection functions. Automatic impedance matching from 5 ohms to 25,000 ohms, combined with 3 watts of output power, ensures effectiveness over varied distances. Rycom Instruments® design and manufacture all locators to provide simplicity and reliability for utility detection tasks, enhancing accuracy and ease of use.

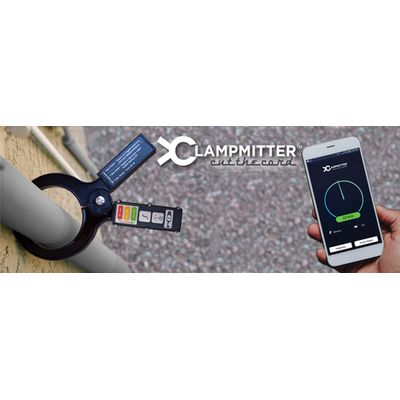

Rycom Instruments - Model Clampmitter - Inductive Coupling System
The Clampmitter is an innovative inductive coupling tool that merges the transmitter and inductive coupler into a compact, cordless device. This design enhances productivity and safety by eliminating the need for cumbersome cables. Ideal for accessing confined spaces, the Clampmitter simplifies the process of locating buried utilities. It operates on three common frequencies suited for various locators across multiple brands, ensuring compatibility without the need for specific output jacks. The device is lightweight at 0.8 pounds and features adjustable power outputs for precision in different environments. Its rechargeable battery offers up to 14 hours of continuous use on a single USB charge. Additionally, the Clampmitter is hot stick ready, further expanding its versatility. Rycom Instruments has a long history of producing reliable locating equipment, and the Clampmitter continues this tradition by providing a practical solution for effective utility locating.
