The Merlin GDPX+ is a 16 zone gas pressure proving & detection panel which can be used in many applications, e.g. mechanical rooms, car parks, shopping centers and the most common being a boiler house application. Utilizing a solenoid valve and a pressure transducer the Merlin GDPX+ will check for a pressure drop or leak in the downstream line before allowing the gas to be supplied. Once gas has been supplied the unit will constantly check the incoming gas supply pressure to ensure that a naked flame cannot be extinguished by a weak draft. The GDPX+ has a touch screen which displays two modes, the engineers mode and the user mode. A settings dip switch inside the controller allows the engineer/user to configure the system. When changes have been, the system will automatically restart once the settings switch is off.

The Merlin GDP2X is a 8 zone gas detection panel which can be used in many applications, e.g. mechanical rooms, car parks, shopping centers and the most common being a boiler house application. The GDP2X has a touch screen which displays two modes, the engineers mode and the user mode. A settings dip switch inside the controller allows the engineer/user to configure the system. When changes have been, the system will automatically restart once the settings switch is off. Many varieties of detectors are compatible with GDP2X, e.g. Natural Gas, Carbon Monoxide, LPG, Hydrogen Gas, Refrigerant and Oxygen depletion. Up to 8 detectors can be used in any combination and can be individually monitored on the GDP2X TFT display.  Also multiple heat detector links can be used, when wired in series. The GDP2X can be integrated with a BMS, fire alarm and remote emergency stop buttons. Gas detectors are fixed remote from the GDP2X panel & should be wired back to the GDP2X panel with four wire low voltage cable.

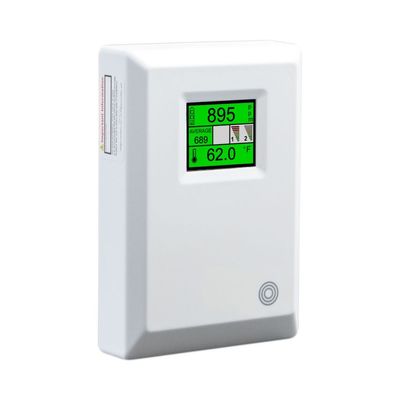

The TFT range of S&S detectors work in combination with the S&S Merlin range of Gas Detection panels and Utility Controllers. The Merlin CO2X-MOD features an NDIR sensor for industrial and commercial indoor applications. Compact, modern, digital design makes the units aesthetically pleasing and easy to install.

The Merlin GDPX+ is a 16 zone gas pressure proving & detection panel which can be used in many applications, e.g. mechanical rooms, car parks, shopping centers and the most common being a boiler house application. Utilizing a solenoid valve and a pressure transducer the Merlin GDPX+ will check for a pressure drop or leak in the downstream line before allowing the gas to be supplied. Once gas has been supplied the unit will constantly check the incoming gas supply pressure to ensure that a naked flame cannot be extinguished by a weak draft. The GDPX+ has a touch screen which displays two modes, the engineers mode and the user mode. A settings dip switch inside the controller allows the engineer/user to configure the system. When changes have been, the system will automatically restart once the settings switch is off.
