Saanvika Corporation products

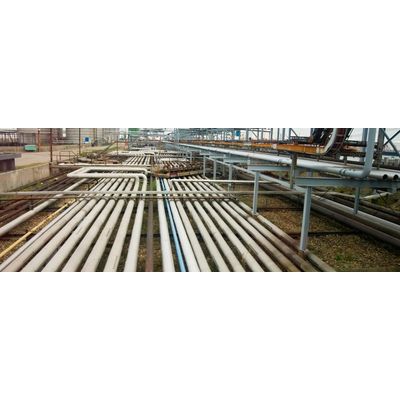

Pipe Spool is a prefabricated pipe that consists of Elbow, Thread-O-let, Tee, Reducer, Branches and both end Flange welded. We are the leading manufacturer, supplier and Exporter of Pipe spool/Piping systems/Pipe fabrication based in M.I.D.C. Anandnagar, Ambernath, Mumbai, India. we have the expertise to design the piping spool system with micro-level details engineering to the safety and cost-effective according to the site. We design the Pipe spool system as per the ASME. We are manufacturing Seamless and welded pipe spool in the following types of materials.

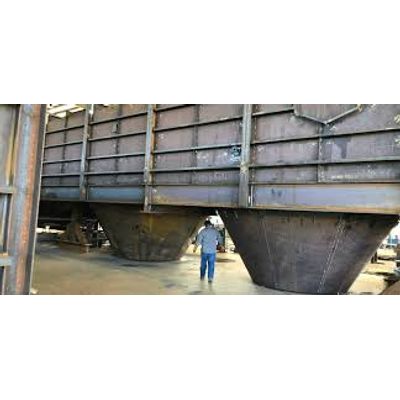

The Steel Fabrication work means changing the form of the metal from plate or sheets to different forms, For example, Steel structures, Steel tanks, Skids and piping works, etc. which use the various industries. Saanvika Corporation fabrication work familiar with various metals, like stainless steel Fabrication, Mild Steel Fabrication, Carbon Air Combustor Assembly Fabrication, Housing Assembly Fabrication, Machined Flanges Fabrication, Pressing Component Fabrication, Screw Conveyors fabrication, Hopper Assembly Fabrication, Services In Fabrication, Chimney Fabrication,  etc. Instead of an end product being assembled from ready-made components, fabrication creates an end product from raw or semi-finished materials.

The Air receiver is also known as the Air receiver tank. The Air receiver tank is supporting/temporary air storage, which is optimized the system efficiency to accommodate the peaks of demand. The Air Receiver tank applicable accessorize is a pressure relief valve and a pressure gauge and the relief valve should be set to 10% higher than the working pressure of the system. The Air Receiver tank size should be 6-10 times the flow rate of the compressor system. The Air receiver tank is usually 150 cubic feet (minimum) for compressors with a rating of 25 SCFM at 100 psi. Air Receiver Tank is an essential requirement of an air-compressed system.

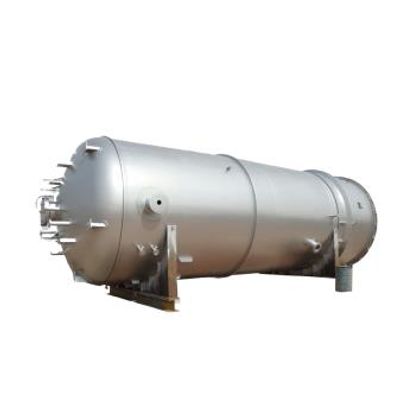

A pressure vessel is generally a container used for storage and transmission of high-pressure liquid, vapor and gases. The pressure of internal good is equally distributed to each part of the pressure vessel(wall). We are the leading manufacturer, supplier and Exporter of Pressure Vessel based in M.I.D.C.Anandnagar, Ambernath, Mumbai, India. We are manufactured Pressure Vessel tailor-made customized for our end-user or client.

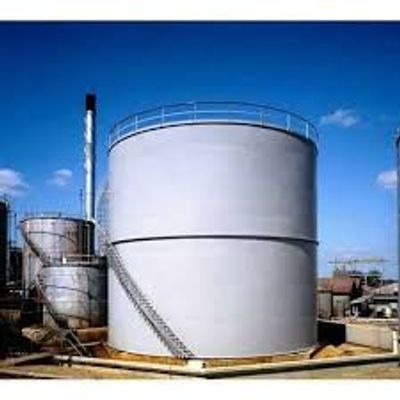

A storage Tank is used for storing the oil, gas, water, and petroleum products, etc, besides these the storage tank, is used for processing, mixing and transport of raw materials as well as for finished chemical products. We are the leading manufacturer, supplier and Exporter of Storage Tanks based in M.I.D.C. Anandnagar, Ambernath, Mumbai, India.

The Distillation Column is used to process the liquid or vapour mixture of two or more substances separated into their component fractions of desired purity, by the application and removal of heat. The Distillation Column is based on the fact that the vapour of a boiling mixture will be richer in the components that have lower boiling points, therefore, when this vapour is cooled and condensed, the condensate will contain more volatile components. At the same time, the original mixture will contain more of the less volatile material. We manufactured various types of distillation Columns, each designed to perform specific types of separations, and each design differs in terms of complexity.

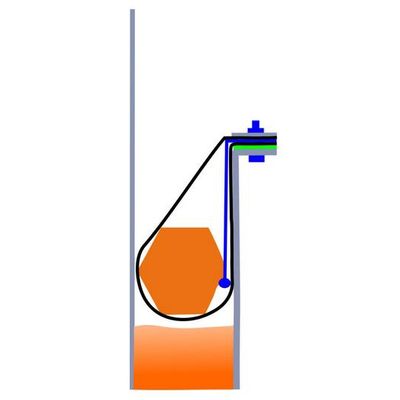

In terms of lowering emissions, the primary foam seal is the most effective primary tank seal. The design is built on a polymer fabric reinforced cover that is kept down by steel hold-down plates or hold-down bars around a springy polyurethane foam core. Since the seal is very flexible, it contacts the tank shell across a large region, guaranteeing excellent rim space vapour tightness. Each primary foam seal will be tailored and manufactured to suit the tank, guaranteeing that the seal can handle both the product stored as well as the tank’s unique dimensions and design factors. Primary foam seals are available in both vapour and liquid mounting and are suitable for a wide variety of applications for EFR and IFR tanks.

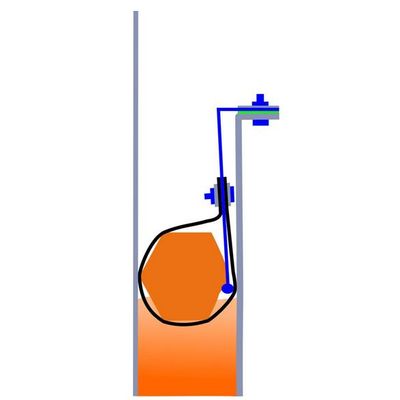

When it comes to reducing emissions, the liquid-mounted foam seal is one of the most effective primary tank seals. The robust polyurethane foam core of this sealing system provides a continuous sealing force regardless of the geometry of the tank shell. Maximum sealing pressure against the tank shell is maintained by a hold-down plate or hold-down bar, along with reinforced polymer fabric. Due to the obvious large contact area, this seal is extremely tight. The liquid-mounted foam seal avoids vapour condensation completely, but the immediate contact between the liquid and the seal envelope enhances the material requirements considerably.

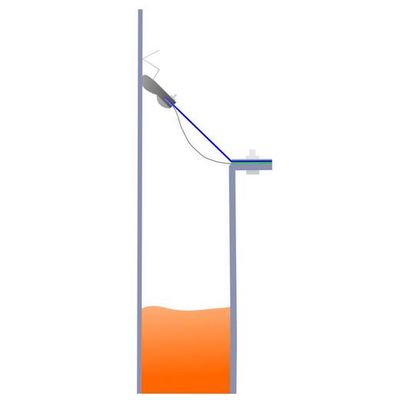

This seal is a rim-mounted secondary seal that has evolved into the most commonly used design for secondary tank seals. Compression plates push a rubber tip against the tank shell in its design. Since there are no complex moving elements in the seal design, it will not encounter problems as a result of corrosion or any other issues that may affect the seal’s overall performance. Each secondary seal will be tailored and manufactured to suit the tank, guaranteeing that the seal will be capable of handling both the product being stored as well as the tank’s unique dimensional and design factors. A continuous vapour barrier, fully protected from weather exposure, extends behind the compression plates, which guarantees excellent vapour tightness.
