Safe Fire Detection Inc. products

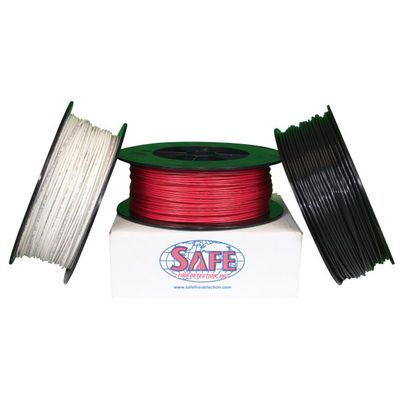

SafeCable digital linear heat detection (LHD) cable is a combination of advanced polymer and digital technologies that can detect heat anywhere along its entire length. SafeCable is also compatible with any listed addressable or conventional panel. For addressable panels use addressable contact monitor modules. At the core of SafeCable is a twisted pair of extremely low resistance trimetallic conductors, sheathed in new advanced thermal polymers. These polymers are chemically engineered to break down at specific fixed temperatures allowing the twisted conductors to make contact and initiate an alarm at the control panel without any calibration for changes in the ambient temperature. The distance locating module (DLM-Z2) has One or Two Zones, which can be cross-zoned, built-in. It also allows you to identify and display the location, in feet or meters from the panel, where heat was detected.

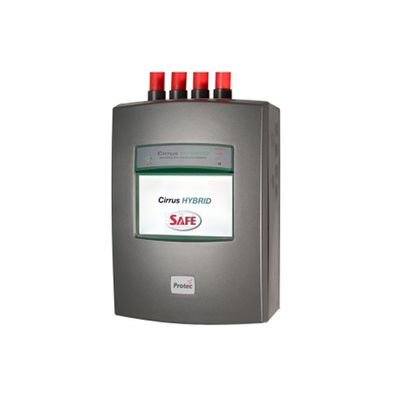

History tells us that there are really only two types of air sampling detection technology. ‘Cloud Chamber Detection’(CCD) and Laser or Optical ‘Scatter Chamber Detection’(SCD.) Cirrus Hybrid uses them both.

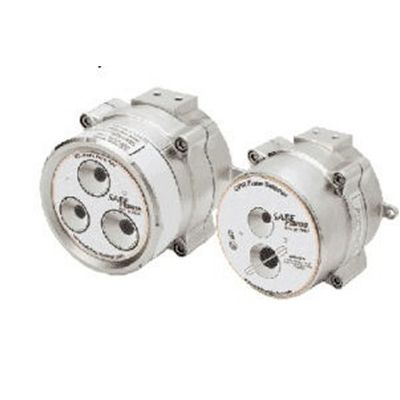

SafeFlame’s triple IR (IR3) flame detector compares three specific wavelength bands within the IR spectral range of a fire and their ratio to each other. This offers fast response without the fear of typical false alarms. One sensor monitors the 4.4 micrometer range and the other sensors monitor the bands above and below. This advanced technology allows the detector to distinguish between non flame IR sources, and flames that emit hot carbon dioxide in the combustion process (which have a spectral characteristic peak at 4.4  micrometers).

The ProLocator is the industry’s only self contained early warning portable air sampling detector. ProLocator can be used to locate the source of a fire before extensive damage is done. The PVC sampling probe may be used to sample above drop ceilings, around electrical equipment and in other hard to reach places. LED and audible signals alert you of your proximity to the fire threat.The LCD displays the current sensitivity setting.  Increase and Decrease Sensitivity buttons allow you to localize the fire signal.
