Saint Fighter (Shandong) Machinery Co., Ltd. products

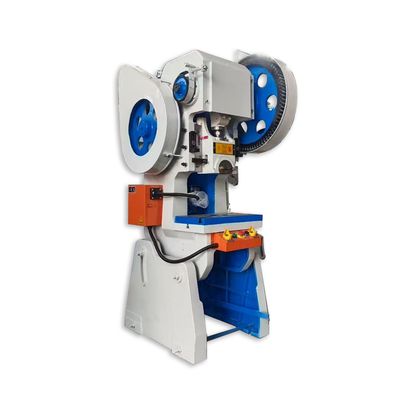

sds - Model jb23 - mechanical punch machine

The main components of the punch press are mostly made of high-strength castings, and the whole machine is composed of a body, large gears, pulleys, crankshafts, connecting rods, transmission shafts, clutches, sliders, and other parts. The drive shaft transmits the power of the electric motor to the pulley, and drives the crankshaft to rotate through the clutch of the clutch, thereby causing the slider to move up and down. When it reaches the bottom dead center, it generates the maximum pressure to achieve the stamping of the workpiece. The slider guide rail has been finely ground by a grinder to increase stamping accuracy and improve its service life. The punch press is equipped with a well-known set of electrical appliances and centralized lubrication by an oil pump.

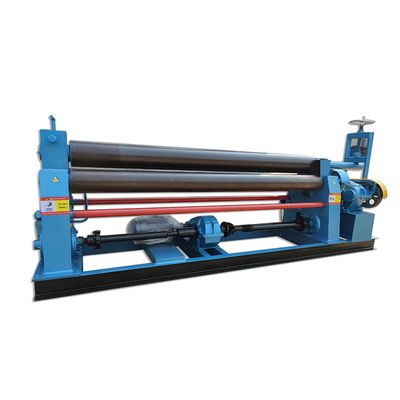

sds - Model 3-roller - mechanical plate rolling machine

This machine belongs to the mechanical transmission three roll plate rolling machine, which is used to roll steel plates into cylindrical, curved, and conical shapes.The upper roller presses down and is driven by an attached motor through a reducer to transmit power to the worm gear, screw and nut pair, causing the plate to bend and deform. The rolling transmission is driven by the main motor through the main reducer and open gear to rotate the lower roller, and becomes the main power source during plate rolling.

sds - Model 3-roller - hydraulic cone rolling machine

Hydraulic cone rolling machine is used to bend a certain thickness of metal plate into a cone-shaped or tapered part at room temperature. Its working principle is rotational bending deformation. Due to the vertical adjustment of the upper roller, there is no need for additional equipment such as a press. It can be loaded in one go and can complete the forming and bending function of the two ends of the sheet metal without the need to turn the head. It is also used for correcting the formed workpiece. It is an essential equipment for manufacturing machinery and equipment in industries such as petroleum, chemical, cement, shipbuilding, boilers, aviation, water conservancy, and power transmission and transformation towers. This machine has a compact structure and is easy to operate, making it currently one of the better rolling machines in China.

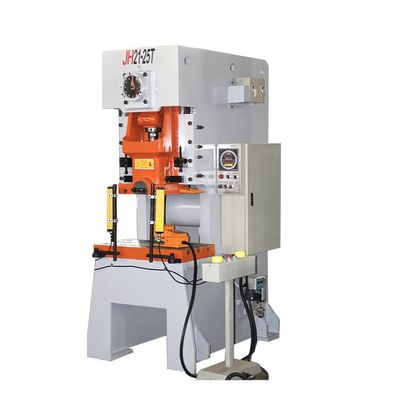

SDS - Model jh21 - pneumatic punching machine

Pneumatic punching machine is an efficient and low consumption processing equipment, which can perform jog, inch, continuous, single action and other actions when working with a pneumatic friction clutch. And it can emergency brake, with standard photoelectric protection, which can effectively protect personal safety. The electrical equipment is equipped with PLC control and electronic cam controller, which can be freely connected to other peripheral devices. The technology of stamping, forming, cutting, stretching and other processes for metal and non-metal materials is widely used in mechanical manufacturing industries such as automobiles, aviation, hardware, electrical appliances, and light industry due to its unique advantages, and occupies an important position.

SDS - Model wc67k - hydraulic bending machine

Hydraulic sheet metal bending machine is a machine tool controlled by a combination of hydraulic and electrical systems, which is used to perform a one-time bending of sheet metal. It uses a simple mold to press the metal sheet into the desired geometric shape, and can be widely used in industries such as electrical appliances, electronics, metal structures, instruments, instruments, daily hardware, and building decoration. Assembling different molds can process various work pieces.

Bending Machine - CNC Bending Machine

SDS - Model NC -100Tx3200 - Bending Machine

The size and weight of the machine are estimated values for reference only, and the actual products produced shall prevai. Our machine`s standard voltage is 380V, three-phase, 50Hz. If the voltage is different, please let us know and the price may change.

Bending Machine - CNC Press Brake

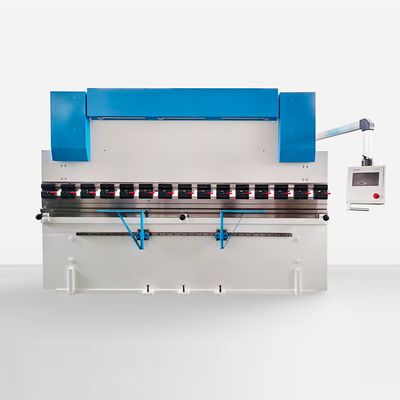

SDS - Model WC67K-100Tx3200 - Double Servo CNC Press Brake

Double servo CNC press brake with tp10s cnc system WC67K-100Tx3200. The Torsion Shaft Servo CNC Press Brake features a steel plate welded structure. Stress relief tempering ensures excellent rigidity and stability. The entire frame exhibits high rigidity, delivering smooth operation, reliable safety, and user-friendly handling. Through coordinated control of electrical and hydraulic systems, it achieves optimal bending results.

SDS - Model WC67K-100Tx2500 - CNC Press Brake

The Torsion Shaft Servo CNC Press Brake features a steel plate welded structure. Stress relief tempering ensures excellent rigidity and stability. The entire frame exhibits high rigidity, delivering smooth operation, reliable safety, and user-friendly handling. Through coordinated control of electrical and hydraulic systems, it achieves optimal bending results.

Bending Machine - Hydraulic Press Brake

SDS - Model WC67Y-80T/2500 - Hidraulicas Sheet Metal Bending Machine

Hydraulic sheet metal bending machine is a machine tool controlled by a combination of hydraulic and electrical systems, which is used to perform a one-time bending of sheet metal. It uses a simple mold to press the metal sheet into the desired geometric shape, and can be widely used in electrical, electronic, metal structures, instruments, instruments, and daily use. Industries such as hardware and construction decoration. Assembling different molds can process various workpieces.
