Salina Vortex Corporation products

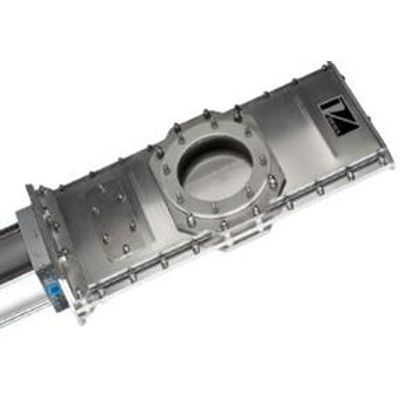

The Vortex Quantum Orifice Gate is specifically engineered to handle dry bulk solids in gravity flow, dilute phase, or vacuum conveying systems with pressures up to 15 psig (1 barg) depending on size. Traditional slide gates and butterfly valves commonly allow packing of material, which prevents positive air and material shutoff.

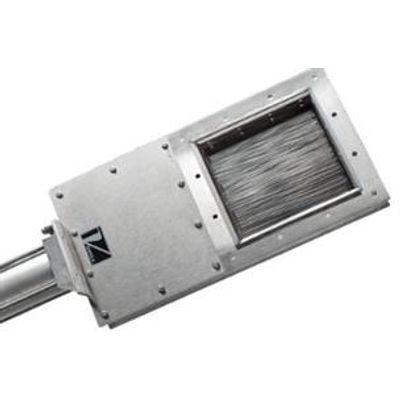

The Vortex Roller Gate™ is the best choice for handling dry material in gravity flow or low-pressure applications. This gate is available in a wide variety of configurations including rectangular sizes and customer specific hole patterns. It has live-loaded seals that extend the service life by compensating for wear. These seals provide an excellent material seal across the gate and to atmosphere. They can also be replaced while the valve is in-line. Similar slide gates have seals made of soft packing, rubber or felt, which rapidly erode away allowing product leakage. Key Industries Served: Agriculture, Chemicals, Foods, Minerals, Petrochemicals, Plastics, Textiles. Rated for ATEX Zone 20 internal and Zone 21 external

The Vortex® Seal Tite Diverter™ is designed for use in gravity flow applications where material can be diverted from one source to either two or three destinations. The Seal Tite Diverter offers a removable access door for interior inspection, cleaning and maintenance. Key Industries Served: Agriculture, Chemicals, Foods, Minerals, Petrochemicals, Plastics, Textiles. Rated for ATEX Zone 0/20 internal and Zone 1/21 external

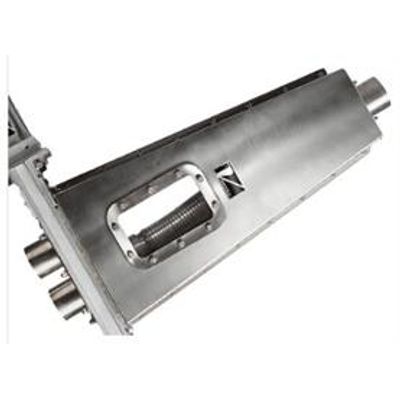

The unique design of the Vortex Flex Tube Diverter eliminates material cross contamination through a positive seal across the closed port. Pockets where material can lodge and remain trapped have also been eliminated. A smooth unobstructed transition from inlet to outlet shields the wear compensating seals from abrasion. Key Industries Served: Agriculture, Chemicals, Foods, Minerals, Petrochemicals, Plastics, Textiles. Rated for ATEX Zone 0/20 internal and Zone 1/21 external

The CNC machined pulleys feature chamfered edges and precision cable grooves to significantly reduce cable wear and backlashing as the loading spout extends and retracts, especially during the misalignment of the hatch opening. Because the cables do not fray, cable failure is eliminated and so is downtime for repairs. In fact, we are so confident of the increased lifespan of these lifting cables that we cover them with a 10-year warranty for wear, tear and workmanship, compared to the industry standard 1-year warranty.

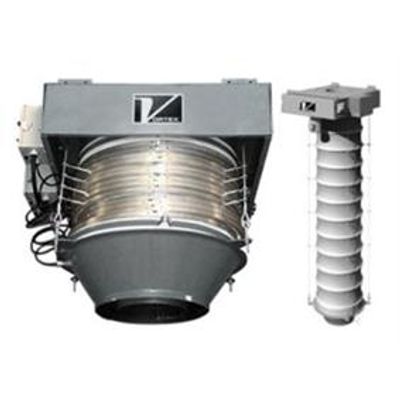

Vortex dustless spout filtration systems are engineered to capture the fugitive dust emitted from the spouts and deposit it back into the material flow during the loading process, eliminating material loss. These filter systems are more cost-effective than a free-standing dust collection system, which often requires the installation of additional ductwork, discharge airlock and some way to reintroduce the material back into the system. These very compact filter systems are used in conjunction with standard volume loading spouts in enclosed, open, or combination loading applications. They feature a unique square-shaped design, which allows for a more low profile and compact model.

Positions:Infinite open or closed. Control Options:Double acting air cylinder with solenoid operated air control valves and fail safe close solenoid. Compliance & Approvals:NEMA 4 or NEMA 7/9 with control panel mounted in non-hazardous environment.

Positions: Adjustable open or closed positions for each magnetic reed switch. Control Options:Double acting air cylinder with solenoid operated air control valves and fail safe close solenoid. Compliance & Approvals:NEMA 4 or NEMA 7/9.
