Salvatore Robuschi e C. S.r.l. products

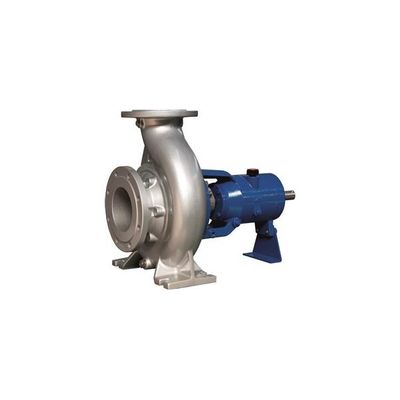

Centrifugal pumps with closed impeller built according to ISO 2858-5199 norms. RD pumps: Simple and modular construction ISO 2858-5199 norms. Discharge sizes from DN 32 to DN 125. High hydraulic efficiencies and low NPSH value (investment casting impellers). Heavy duty shaft and bearings. Only 3 bearing brackets for the whole range. Only 1 casing cover fits every seal arrangement.

Centrifugal pumps with open impeller built according to ISO 2858-5199 norms. RG pumps: Simple and modular construction ISO 2858-5199 norms. Discharge sizes from DN 32 to DN 125. High hydraulic efficiencies and low NPSH value (investment casting impellers). Heavy duty shaft and bearings. Only 3 bearing brackets for the whole range. Only 1 casing cover fits every seal arrangement.

Centrifugal pump with vortex impeller in according to ISO 2858/5199 norms. RC pumps: Simple and modular construction with bearing bracket in according to ISO 2858-5199 norms. Discharge sizes from DN 32 to DN 250. Large free passage clearance up to 150 mm due to the completely recessed impeller. Heavy duty shaft and bearings. Only 4 bearing brackets for the whole range. Only 1 casing cover fits every seal arrengement.

Centrifugal pumps with channel impeller according to ISO 2858/5199 norms. RB pumps: Simple and modular construction with bearing bracket in according to ISO 2858-5199 norms. Discharge sizes from DN 65 to DN 300. Impeller with special blades geometry for low NPSH and high free passage. Heavy duty shaft and bearings. Only 5 bearing brackets for the whole range. Only 1 casing cover fits every seal arrengement.

Centrifugal pumps with closed impeller. Flanges unions PN 16 or DIN 11851 (food industry). HD pumps: HD pumps have the same interaxis of ISO 5199 chemical norm pumps, this means easy interchangeability. Casing and impeller manufactured with investment casting technology. Standard IEC motor (different brand available) with stub shaft design. Possibility to choose seal arrangement: single, bouble tandem, double back to back and packing gland.

Centrifugal pumps with semi-open impeller. Flanges unions PN 16 or DIN 11851 (food industry). HG pumps: HG pumps have the same interaxis of ISO 5199 chemical norm pumps, this means easy interchangeability. Casing and impeller manufactured with investment casting technology. Standard IEC motor (different brand available) with stub shaft design. Possibility to choose seal arrangement: single, bouble tandem, double back to back and packing gland.

Centrifugal pumps with vortex impeller. Flanges unions PN 16 or DIN 11851 (food industry). RS pumps: RS pumps have the same interaxis of ISO 5199 chemical norm pumps, this means easy interchangeability. Casing and impeller manufactured with investment casting technology. Large free passage clearance up to 50 mm due to the recessed impeller. Standard IEC motor (different brand available) with stub shaft design. Possibility to choose seal arrangement: single, bouble tandem, double back to back and packing gland.

Centrifugal pumps with closed impeller built in compliance with DIN 24255. RN pumps: Centrifugal pumps with closed impeller according to EN 733 norms. Discharge sizes from DN 32 to DN 150.

Multistage centrifugal pumps with closed impeller. TS pumps: Multistage centrifugal pumps with closed impellers TS. Discharge sizes from DN 32 to DN 50. TS 31-32 range is only available with mechanical seal, TS 40-50 range is available both with mechanical seal and gland packing and cooling chambers are supplied as standard equipment.

RAM pumps: Double-stage centrifugal pumps with peripheral impellers TS. Discharge sizes DN 25.
