SAMJIN Precision Co., LTD products

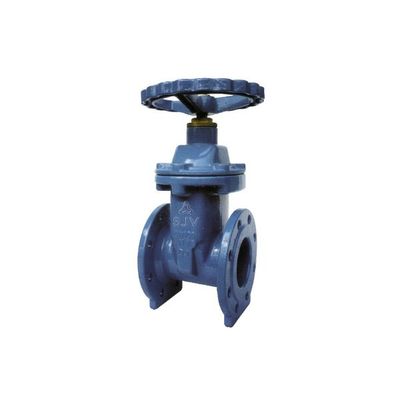

Double Sealing Resilient Seated Gate Valve for Water Works is the world best valve that usage data of hundreds full bloom proves the quality for several decades. It was proved the quality and performance because have used hundreds full bloom in van Europe every country since was developed by first in European Hawel 40 years ago.

Conforms to BS 5163 Standard. Resilient wedge with double sealing points provides absolute water tightness. Ductile Iron wedge core is fully vulcanized with EPDM rubber on all sides. All cast parts/body/bonnet/wedge gate/key cap/handwheel are made of ductile iron. All cast parts/body/bonnet/wege gate/key cap/handwheel are internally and externally fusion bonded epoxy coated. All bonnet/body/key cap/handwheel.screws are made of  stainless steel. Stainless steel stem (spindle). Counter Boring bonnet desing. Full bore, full flow characteristics. Pressure rating up to 16 bar.

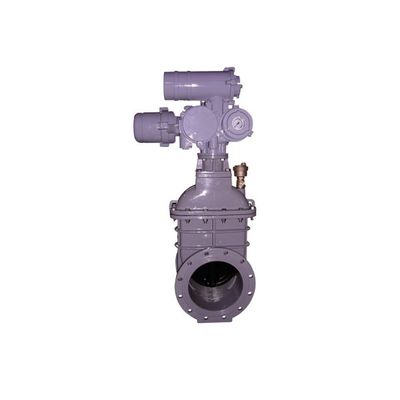

Electric Motor : High Moving torque. All, condition, Switching time, choice according to request of main character. Torque switch : When open and closes by being moisture-proof style, operation when group formed. Position limit switch : That open by digital counter gear way, moment operation type rescue, position establishment of that fill. Space heater : Inside moisture occurrence exclusion by a temperature car. Interlock switch : When operate passivity, shutting off power of electri motor worker`s safety protection. To be a series direction opening ticket : Establishment so the reorganization circumstance is number of the ball on the spot.

Prevention any containments flowing in from main pipe occured stauing water as stay for a long time in pipe line. Can be economized a water resources by minimum of thrown water quantity for washing of pipe line. Can be minimized a flow loss. Can be installed without water suspension of water supply. No rust by fusion bonded epoxy powder coating.

This is exclusive valve for under ground laying. Easy peration and see the location of key cap for gate valve flowing in soil, water and dust etc. Prevention a mishap of valvel by forced using of stem and easy operation owing to strong supporting point in the top. Be economical, No need a protection box(FRP) and pipe(PVC) of gate valve separately in using iron cover manufacuuring in one piece with gate valve. Maintenance cleanly without rust by the same fusion bonded epoxy powder coating as gate valve.

Samjin triple offset metal seated butterfly valves are the high quality that realize zero leakage of high-tech technology that conciliate advantage of metal seat and advantage of rubber flooring.

The Butterfly Valves Intended Primarily For Use With Service Water And This Valve Conforms To Ks B 2333 (Bs 5155).

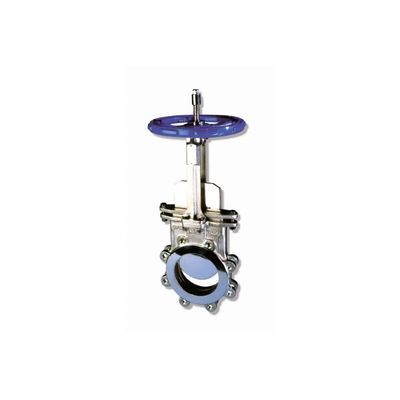

Cast stainless steel body, gate, packing gland and yoke. Gate desinged to withstand full 150 PSI reated pressure as required by MSS SP-81. Body cavity, seat configuration and  beveled gate designed to provide shut-off capability. in thick media such as pulp stock, slurries, or with solid media such as pellets of powders. Easy conversion from handwheel operator to cylinder, bevel gear or electric motor operator using cast yoke. Enclosed brass stem busing provides reduced operating torque and protection of the stem busing from harsh environments. Hardened 410 stainless steel seat available to prevent galling in high cycle and/or high end applications or abrasive applications. Stainless steel stem for corrosion resistance. Teflon wiper in packing to provide gate support and stablize packing seal. Full port ID.

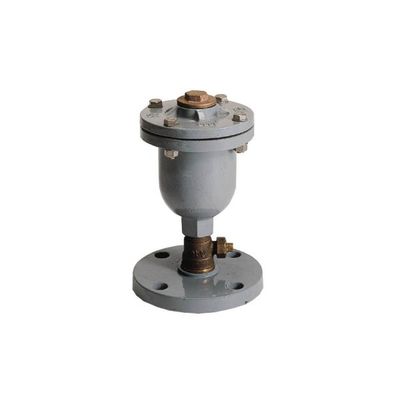

Air Valves For Water Works(Single Orifice Valve); With the automatic absorber,pipeline damages due to vacuum occurrence can be prevented and smooth water supply can be expected. Automatic exhaustion of air in the pipeline prevents pipeline damages and water flowing capablitity caused by air pocket. Excellent operations because epoxy coating prevents rust occurrence. Guarantees permanent life and excellent function because strong abrasion material and stainless material are used in the main parts. The body is made of excellent Ductile Cast Iron. The product registration number for quality assurance is attached to guarantee perfect quality.

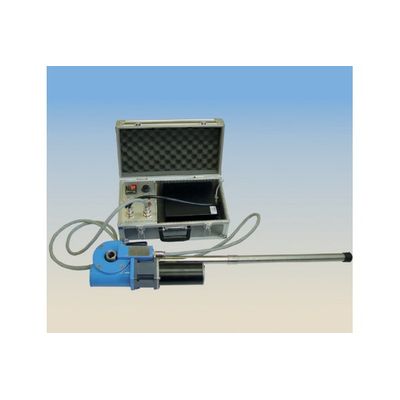

Much Easy to Operate with Battery for Vehicle and Home Power Source in Case of a Large Size and Big Rotation Valve.
