Samoa Industrial products

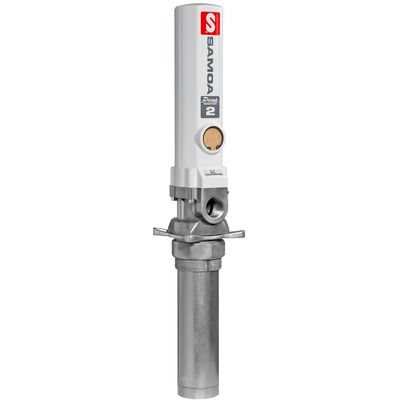

PM2 series air operated piston pumps. Double acting air operated low pressure pumps for transferring coolants. Pumps include height adjustable 2” BSP (M) bung adaptor for tank or drum bung mounting. air operated piston pumpss for Fluids accessory: PN 331 110.002, PVC suction tube for 205 l drums. Instruction

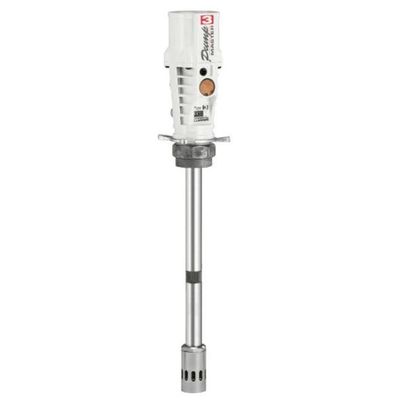

PM3 air operated piston pumps. This is a component for a kit. PUMPMASTER 3, 2:1 ratio pneumatic piston grease pump. Instruction book: 840802.

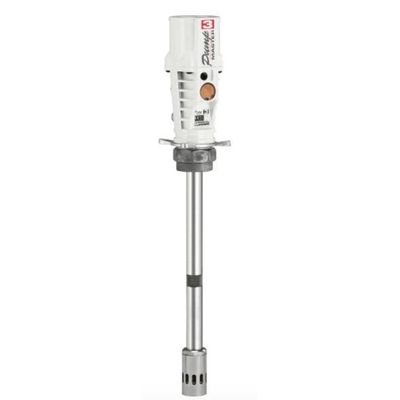

PM3 air operated piston pumps. Light weight and effective high pressure delivery air operated pumps specially designed for use in mobile and portable greasing units. Pumps are available with four different suction tube lengths, to fit all commercial grease drums: 12,5 - 20 kg (35 lb), 50 kg (120 lb) and 185 kg (400 lb). They include a height adjustable 2” BSP (M) bung adaptor. Maximum air consumption with 6 bar (87 psi) air inlet pressure, NLGI-2 grease at 20 ºC and 110 cpm. Maximum free delivery at 6 bar (87 psi). NLGI-2 grease. Maximum noise level measured at 1 m (3.3`) from the pump, 7 bar (100 psi) air pressure and free delivery.

Very reliable diaphragm aluminium pumps for large volume transfer (250 l/min max.), dispensing and evacuating a variety of fluids. These pumps have an aluminium air motor. Typical applications for these pumps are transferring and dispensing of antifreeze solutions. They can be used as stand-alone pumps for transfer applications or as systems pumps in distribution systems that include hose reels.

Very compact and reliable diaphragm pumps for medium to large volume transfer (100 l/min max.), dosing, spraying and dispensing a variety of fluids. Aluminium pumps have an aluminium air motor. Typical applications for these pumps are transferring and dispensing of windshield washer and antifreeze solutions. They can be used as stand-alone pumps for transfer applications or as systems pumps in distribution systems that include hose reels.

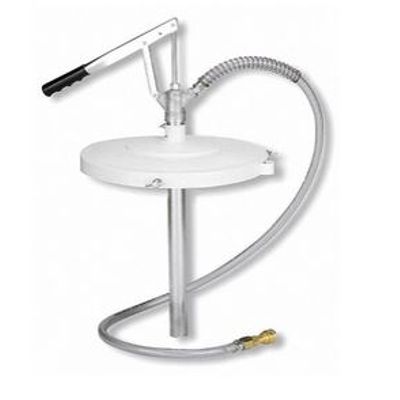

Filler pump for centralized greasing systems, 12 - 18 kg kegs. Includes a 310 mm drum cover. Medium pressure lever action pump with 1,5 m hose and a 2-HK (1/4") hydraulic connector for filling the reservoir of centralized greasing systems. Includes pump, cover, hose, and hydraulic connector.

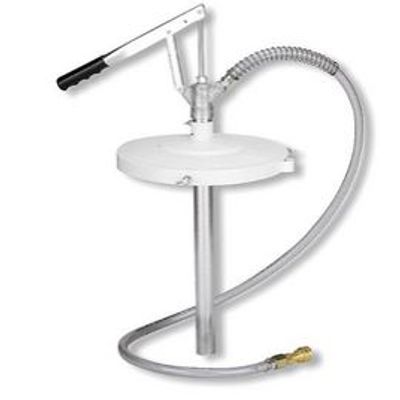

Filler pump for centralized greasing systems, 20 kg kegs. Includes a 330 mm drum cover. Medium pressure lever action pump with 1,5 m hose and a 2-HK (1/4") hydraulic connector for filling the reservoir of centralized greasing systems. Includes pump, cover, hose, and hydraulic connector.

Filler pump for centralized greasing systems, 50 kg drums. Includes a 405 mm drum cover. Medium pressure lever action pump with 1,5 m hose and a 2-HK (1/4") hydraulic connector for filling the reservoir of centralized greasing systems. Includes pump, cover, hose, and hydraulic connector.

U·pump allows to monitor and control main functions of air operated pumps. Each U·pump monitor and control module can control and monitor two air operated double diaphragm pumps and two tanks. Several pumps can be connected to form a network thanks to the U·track software, included in the U·net communications module allowing easy, convenient and effective pump monitoring and control, even from a remote location.

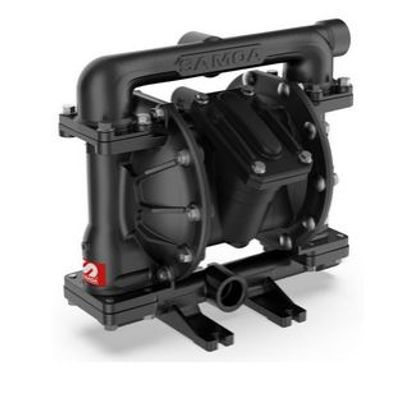

Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions.
