SAMSON AG products

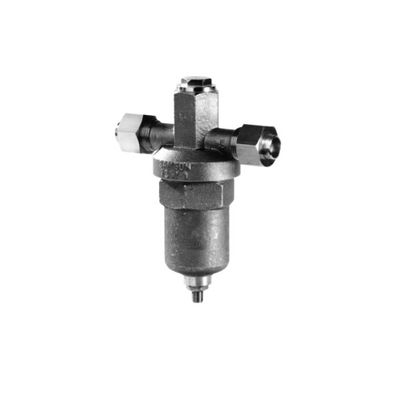

USAGE: Pressure control. MEDIUM : Gases. Air and non-flammable gases. VERSION : DIN. MEDIUM TEMPERATURE : -200 to 200 °C / -328 to 392 °F. VALVE SIZE : G ¾ A. PRESSURE RATING : PN 40 to PN 50. FUNCTION :Pressure reducing valve, Pressure build-up regulator. APPLICATION: Valve opens when the upstream pressure drops. Valve closes when the downstream pressure rises.

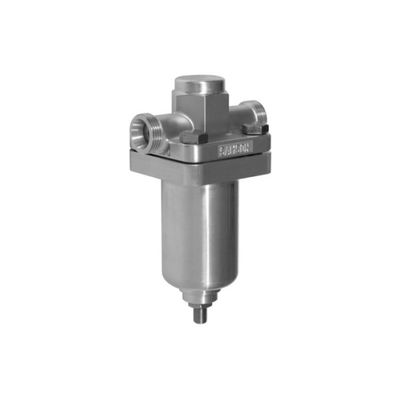

USAGE : Pressure control. MEDIUM : Gases, Air and non-flammable gases. VERSION : DIN. MEDIUM TEMPERATURE : -200 to 200 °C / -328 to 392 °F. VALVE SIZE : G ¾ A. PRESSURE RATING : PN 63. FUNCTION: Pressure build-up regulator, Pressure reducing valve. APPLICATION : Valve closes when the downstream pressure rises, Valve opens when the upstream pressure drops

USAGE : Pressure control. MEDIUM : Gases and Air and non-flammable gases. VERSION : DIN. MEDIUM TEMPERATURE : -200 to 200 °C / -328 to 392 °F. VALVE SIZE : G ¾ A/G ¾ (Ein-/Ausgang). PRESSURE RATING : PN 40 to PN 50. FUNCTION : Excess pressure valve . APPLICATION : The valve opens when the upstream pressure rises.

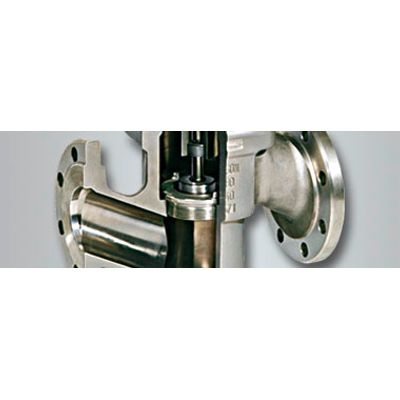

Valve style : Globe valve. USAGE : Cryogenic service, Throttling service and High-pressure service. VERSION : NSI.MEDIUM TEMPERATURE : -196 to 65 °C / -320.8 to 149 °F. SUPPLY : Pneumatic. VALVE SIZE : NPS 3 to NPS 8. PRESSURE RATING : Class 300 to Class 900.

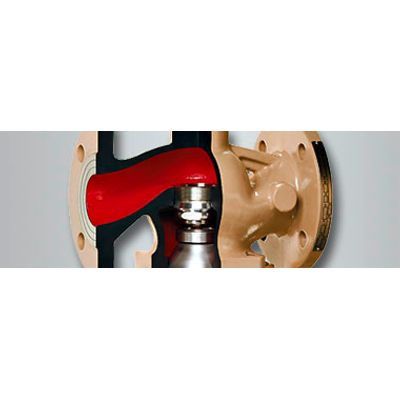

Valve style : Globe valve. USAGE : Throttling service. VERSION : DIN. MEDIUM TEMPERATURE : -15 to 200 °C / 5 to 392 °F. SUPPLY : Electric. VALVE SIZE : DN 15 to DN 50 G ½ to G 1. PRESSURE RATING : PN 25. Lining : without.

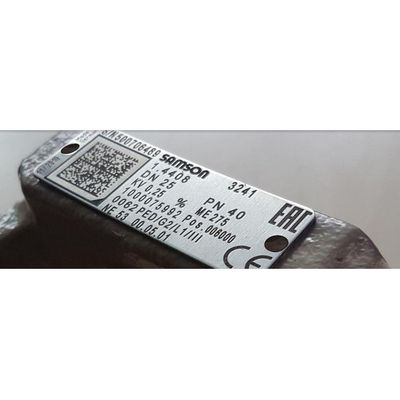

At the beginning of 2020, SAMSON started to equip valves, pneumatic actuators and valve accessories with electronic nameplates. Important features of the electronic nameplates are the Data Matrix code and serial number: The Data Matrix code encodes a device marking that is unique the world over. The serial number is a device identifier assigned by SAMSON.

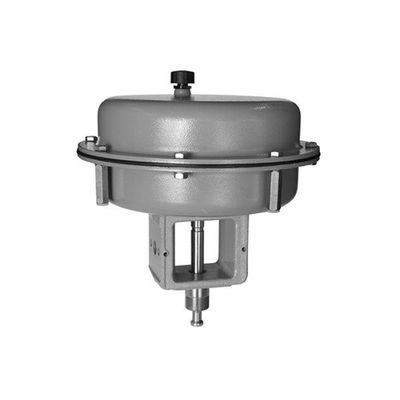

USAGE On/off service : Throttling service, Pressure swing adsorption (PSA). ACTUATOR MOTION : Linear. RATED TRAVEL : 7.5 mm to 30 mm. SUPPLY : Pneumatic. VERSION : Standard. FAIL-SAFE ACTION : Reversible.

SAGE : Throttling service : On/off service, Pressure swing adsorption (PSA). ACTUATOR MOTION. RATED ANGLE : 90°. SUPPLY : Pneumatic. VERSION : Standard. FAIL-SAFE ACTION : Reversible.

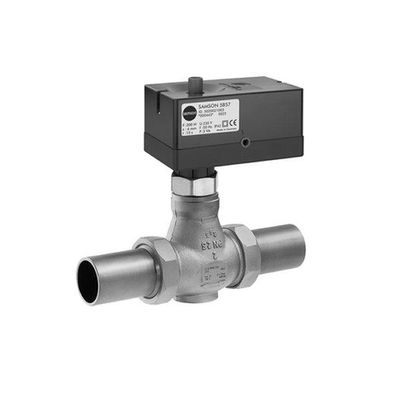

USAGE : Throttling service ACTUATOR MOTION Linear. RATED TRAVEL : 6 mm to 15 mm. SUPPLY : Electric.VERSION : Three-step Continuous with positioner. SUPPLY VOLTAGE : 24 V, 50 Hz 230 V, 50 Hz 24 V DC 24 V, 60 Hz 85 ... 264 V, 50/ 60 Hz. FAIL-SAFE ACTION : Actuator stem retracts Actuator stem extends.
