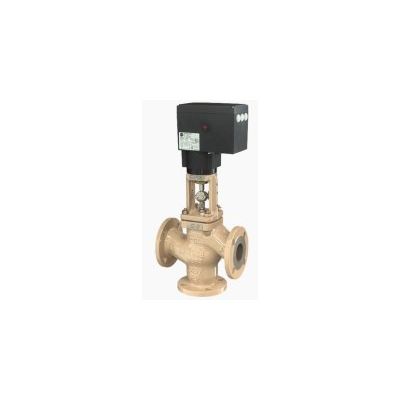

The Type 3244 threaded seat three-way control valve is designed for general service applications up to the limits of the ANSI 300 pressure class rating. These general service applications including both the mixing and diverting of process fluids found in most process control industries.

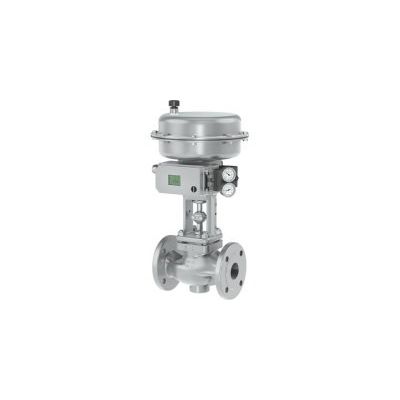

The Type 3241 threaded seat globe valve is designed for general service applications up to the limits of the ANSI 300 pressure class rating. These general service applications include process events such as erosion, abrasion, corrosion, cavitation, and flashing found in most process control industries.

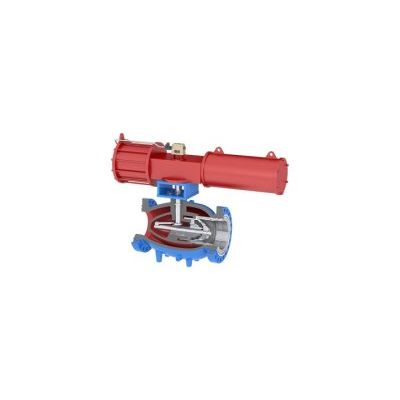

The Vetec 62.7 double eccentric rotary plug control valve is designed for basic general service applications up to the limits of the ANSI 300 pressure class rating. These general service applications include process events such as erosion, abrasion, corrosion, cavitation, and flashing found in most process control industries. The double eccentric rotary plug design increases flow capacities with only minor reduction in the pressure recovery factor making the design an ideal replacement for linear globe control valves even with cavitation and flashing process conditions present. The Vetec 62.7 can be assembled with a pneumatic, electric, hydraulic, or electro-hydraulic actuator also offered by the SAMSON group to complete the control valve construction. These control valves are designed according to the modular assembly principle, can be equipped with SAMSON GROUP actuators and valve accessories such as positioners, limit switches, and solenoid valves.

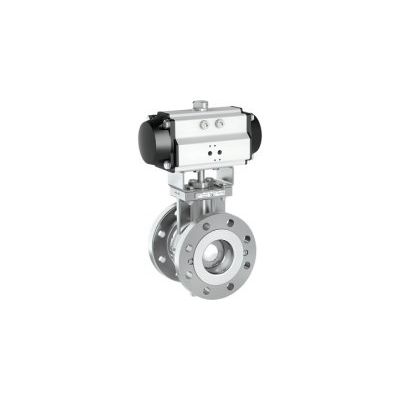

The Type 3310 segmented ball control valve is designed for general service applications up to the limits of the ANSI 300 pressure class rating. These general service applications include process events such as erosion and abrasion found in most process control industries.

The Axial Flow Control Valve is design for special applications requiring high flow capacity, the precise control from a linear motion closure member, and reduced turbulence and vibrational effects.

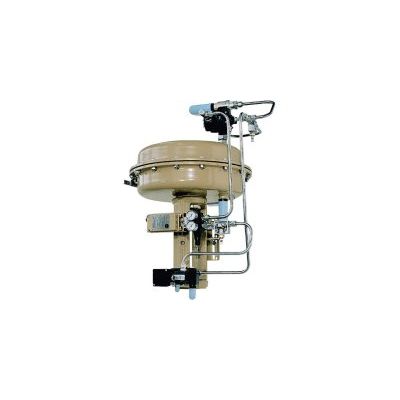

The Type 3271 pneumatic rolling diaphragm actuator is designed for all industrial applications. This actuator is a linear motion device ideal for valve sizes ranging from the micro-flow valves to large 20`+ globe control valves. The thrust force of the actuator depends on the actuator area, pneumatic supply pressure, spring stiffness, distance traveled, initial compression of the spring, the number of springs internal to the actuator, etc.

Valve Style: Globe valve. USAGE: Low-pressure service, Throttling service. Version: ANSI. Medium Temperature: -196 to 425 °C / -320.8 to 797 °F. Supply: Electric. Valve Size: NPS ½ to NPS 12. Pressure Rating: Class 125 to Class 300. Lining: without.

Valve Style: Globe valve. Usage: Low-pressure service, Throttling service, Cryogenic service. Version: ANSI. Medium Temperature: -196 to 425 °C / -320.8 to 797 °F. Supply: Pneumatic. Valve Size: NPS ½ to NPS 12. Pressure Rating: Class 125 to Class 300. Lining: without.

Usage: Pressure control. Medium: Gases, Air and non-flammable gases. Version: DIN. Medium Temperature: -200 to 200 °C / -328 to 392 °F. Valve Size: G ¾ A. Pressure Rating: PN 40 to PN 50. Function: Pressure reducing valve, Pressure build-up regulator. Application: Valve opens when the upstream pressure drops, Valve closes when the downstream pressure rises.

Usage: Pressure control. Medium: Gases. Air and non-flammable gases. Version: DIN. Medium Temperature: -200 to 200 °C / -328 to 392 °F. Valve Size: G ¾ A. Pressure Rating: PN 63. Function: Pressure build-up regulator, Pressure reducing valve. Application: Valve closes when the downstream pressure rises, Valve opens when the upstream pressure drops.
