Sati S.R.L. products

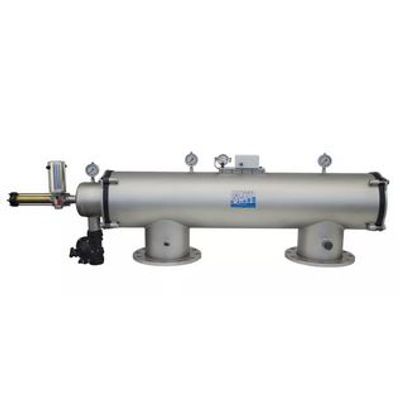

VTO self cleaning screen filters are designed for filtration of liquids with solid particles and colloidal materials. Special suction nozzles ensure the complete cleaning of the screen with minimum water consumption and without stopping the filtration process. They can be supplied in three different configurations (Y, L, and O) depending on the position of In/Out connections. The filtering cartridge can be supplied either as a polyester mesh inserted between two AISI 316 net tubes or as a three layer AISI 316 stainless steel cartridge (REPS); with this solution the filtration degree ranges from 25 µm to 810 µm. All filters are supplied ready to work, with valves, pressure gauges and electronic controller included.

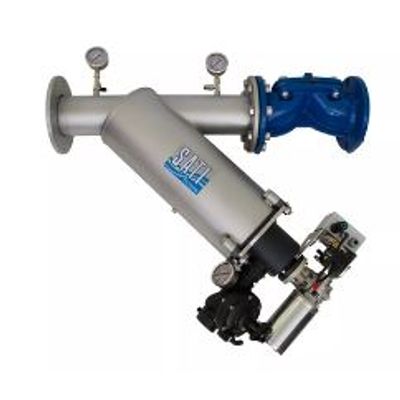

TURBONET are self-cleaning screen filters with stainless steel body, available in Y shape building configuration. The internal filter cartridge is available with a polyester filtration mesh (PES) inserted in an AISI 316 stainless steel net tube,  or in double layer screen version (REPS) completely made of stainless steel AISI 316; with these solutions we can offer a large filtration degree ranging from 2000 to 25 μm.

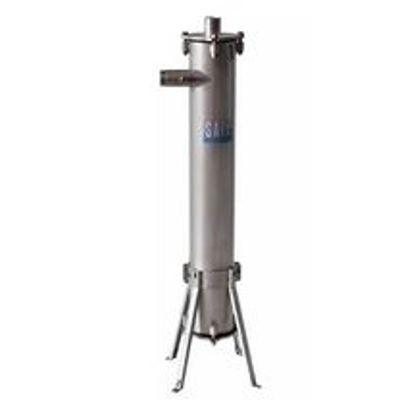

VORTEX filters are centrifugal separating filters (hydrocyclones) with stainless steel body, especially designed for water containing sands or particles with specific weight greater than water (γ>1). VORTEX filters can remove up to 99% of sands and/or particles with dimensions greater than 75 µm and up to 65% with dimensions greater than 50 µm. VORTEX filters are designed to reduce head losses but maintaining the best separating efficiency, work continuously, do not contain filtrating elements or moving parts, can be inspected and the bottom drain can be equipped with a manual or automatic valve.

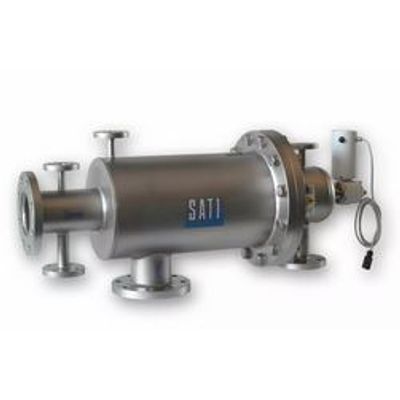

ROTOR HP DUPLEX self cleaning screen filters are designed for filtration of sea water or brackish water. Housing, covers and the most important components are made of DUPLEX steel to gives them exceptional resistance to wear and corrosion also in harsh environments. They can be supplied in two different configurations (L and O) depending on the position of In/Out connections. Special suction pads ensure the complete cleaning of the screen with minimum water consumption and without stopping the filtration process. The filtering cartridge can be supplied either as a polyester mesh inserted between two DUPLEX steel net tubes or as a DUPLEX steel cartridge (fito); with this solution the filtration degree ranges from 25 µm to 810 µm.
