Savino Barbera products

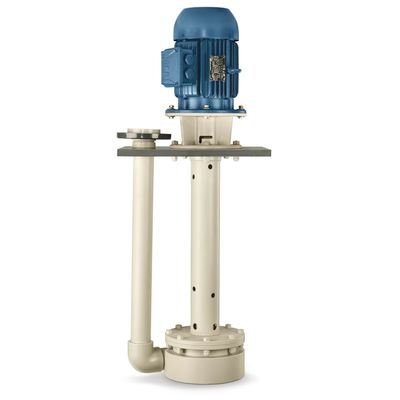

AS Series vertical pumps. Without standard lengths, they can be adapted to suit any tank with a maximum depth of 3 metres. Equipped only with a pair of bushings flushed by the liquid being pumped. Max flow rate: 90 m³/h. Max head: 55 m w.c. Plastic construction materials: PP, PVC, PVDF.

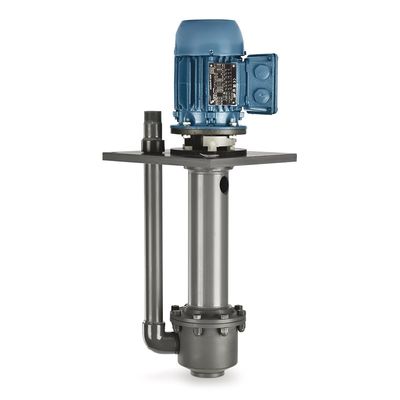

GP Series vertical pumps. Machined from a solid block of polypropylene, these are very robust chemical pumps ideal for heavy-duty and continuous operations. Maximum length: 3000 mm. Max flow rate: 200 m³/h. Max head: 42 m w.c. Plastic construction materials: PP.

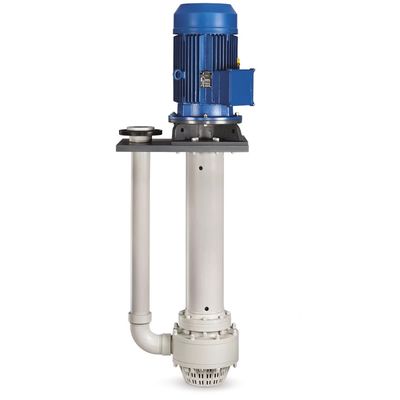

BS Series vertical pumps. Cantilever pumps with no sliding parts. For pumping abrasive corrosive liquids or those with a tendency to form scale. Made in standard lengths: 400, 550, 700, 90 mm. Max flow rate: 55 m³/h. Max head: 30 m w.c. Plastic construction materials: PP, PVC, PVDF.

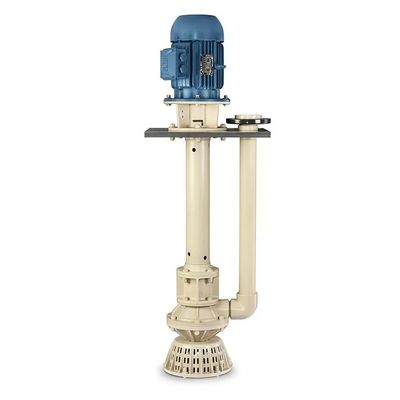

GA Series vertical pumps. With anti-clogging impellers and large internal spaces, they can pump even very dirty corrosive fluids (containing filaments, solids or other impurities). Available with and without bushings. Max flow rate: 32 m³/h. Max. head: 20 m w.c. Construction materials: PP, PVC, PVDF.

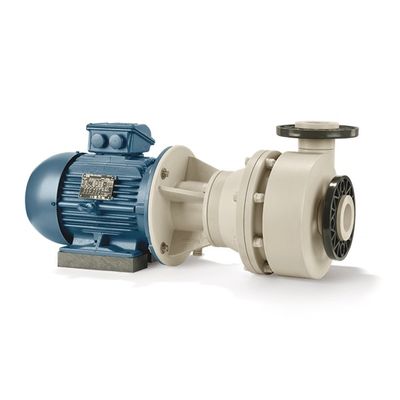

OMA Series close-coupled horizontal pumps. With their compact design, these pumps are compatible with numerous corrosive products used in industrial processes and chemical plants. Max flow rate 90 m³/h. Max head 55 m w.c. Plastic construction materials: PP, PVC, PVDF. Corrosion-resistant plastic centrifugal pumps. With mechanical seal. Suitable for pumping aggressive liquids, industrial fluids (including charged fluids), chemicals, processing waters and acid solutions.

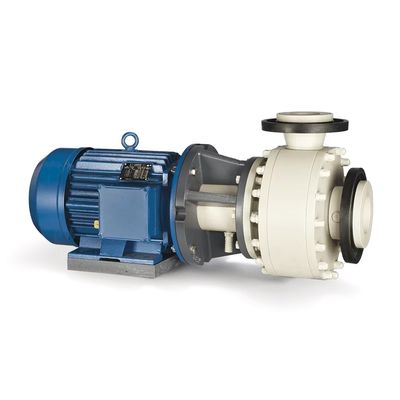

OP Series horizontal pumps. Machined from solid blocks of polypropylene and equipped with motors with extra support, these are robust chemical pumps ideal for heavy duty operations. Max flow rate 200 m³/h. Max head 42 m w.c. Plastic construction material: PP. Corrosion-resistant chemical pumps. With mechanical seal. For aggressive liquids, both acid and alkaline, clean industrial fluids and those with various kinds of impurities. Ideal for continuous services and heavy-duty operations.

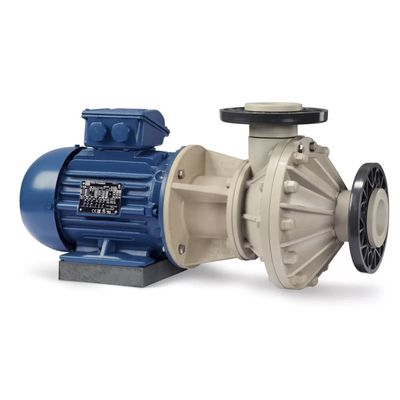

OA Series horizontal pumps. With anti-clogging impellers and large internal spaces, they can pump even very dirty industrial liquids (containing solid fibres and other coarse impurities). Max flow rate 32 m³/h. Max head 20 m w.c. Plastic construction materials: PP, PVC, PVDF. Corrosion-resistant plastic pumps. With mechanical seal and non-clogging impellers, ideal for pumping aggressive liquids or even very dirty industrial fluids (coarse solids, fibres, filaments, etc.).

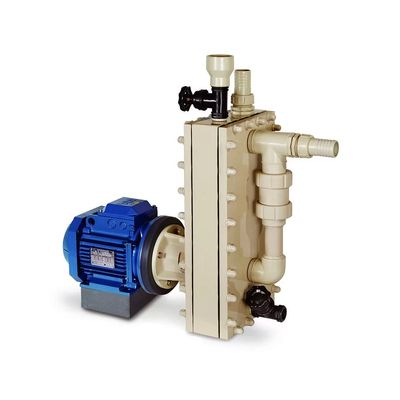

PA Series self-priming horizontal pumps. With negative suction (maximum negative head: 4 m). Not suitable for dense, viscous, hot liquids and with high vapour tension. Max flow rate 280 l/min. Max head 15 m w.c. Plastic construction materials: PP, PVC, PVDF. Self-priming pumps with mechanical seal. for pumping aggressive liquids, industrial fluids, acid solutions and chemicals.

Vertical single-stage mixers with cantilever shaft and wear bushings cooled by the flow of the pumped liquid. Built up to three meters long.In the longest version constructed, the superior shaft extension and the need to allow only materials resistant to the aggressive chemicals to contact the liquid has lead to a project characterized by the presence of components constructed from corrosion-resistant thermoplastic and composite materials such as fiberglass reinforced plastic: fiberglass reinforced plastic in fact, in addition to satisfying the stability needs of very long mixers, is also an ideal solution for its chemical resistance to the corrosive liquids.Thanks to their special construction, the AG series vertical mixers are ideal for handling corrosive liquids stored in basins and tanks with varying level and volumes up to 20 m³ even at high temperatures and for most organic and inorganic chemical products.

Mixers with cantilevered bare shaft connected directly to the motor. They are particularly suitable for liquid-solid mixing and treating liquids with solids in suspension. Maximum length: 1300 mm. Fast rotation. Impeller with marine propeller. Top-entry flange mount mixers for open tanks at atmospheric pressure. With completely cantilevered shaft. Custom-made lengths to suit the depth of the tank.
