SBS Ecoclean Group products

Rising demands for the quality of parts require increasingly complex solutions from industrial parts cleaning processes. The EcoCcore is a solvent parts washer for batch cleaning of industrial parts that is perfectly tailored to satisfy these requirements. The system effectively degreases industrial parts with modified alcohols or hyrdrocarbons in a closed loop systems and offers offers maximum flexibility and high capacity with respect to throughput and volumes, with optimized cost efficiency as the result.

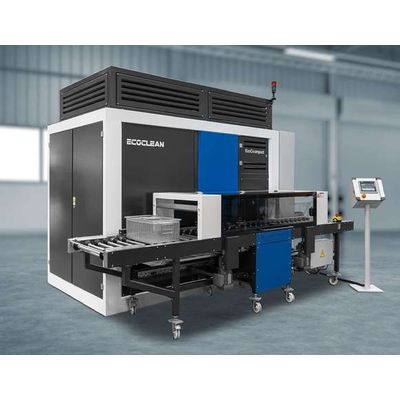

The EcoCcompact is a single-chamber cleaning system for industrial parts cleaning and preservation with non-halogenated hydrocarbons and modified alcohols operating under full vacuum. It offers a high cleaning quality at short cycle times combined with a maximum of flexibility for diverse cleaning tasks. With its flexible modular system (from 1 to 3 tank version) the EcoCcompact is easily adapted to individual customer needs. The system is therefore suitable for a broad application range from rapid degreasing up to demanding cleaning operations in compliance with exacting cleanliness specifications. Offering a choice of two different work chamber sizes the system enables you to make-up your individual specific batches. Therefore per-unit product costs are minimized. For your EcoCcompact machine, Ecoclean offers an extensive range of options which are individually selectable to suit your requirements.

EcoCbase C2 is designed to allow an easy entry into the industrial cleaning. The excellent cost/performance ratio makes the machine a very attractive solution, especially in times of reduced investment budgets. The compact system is fully standardized, using easy, proven technology and requires only a small footprint. The EcoCbase C2 uses non-halogenated hydrocarbons as highly effective and economic cleaning media for removing oils, greases, emulsions and swarf. The machine can alternatively be used between or after the manufacturing process, either in small factories with comparatively low production capacities or in large factories with decentralized cleaning stations. Equipped with one flood tank, vacuum drying, circulation and bypass filtration, the basic version of the EcoCbase C2 already offers a solution for various cleaning tasks – from workpiece degreasing to removal of smaller particles of dirt with less than < 100 µm.

The compact solution that takes up minimal space. Being highly powerful cleaning media non-halogenated hydro- carbons allow safe and economical use of solvents for removing oil, grease and swarf between or after production processes. Both small facilities with comparatively low production capacities and large-scale plants with decentralised cleaning stations benefit from the sophisticated process technology of the Minio 85C cleaning system. Many different programme variants with immersion processes, vapour degreasing and vacuum drying ensure ideal conditions to meet the requirements expected of modern manufacturing processes in terms of quality and functionality. This small system with an appropriate size of basket is always supplied with double filtration (flood tank – work chamber and workchamber – flood tank).

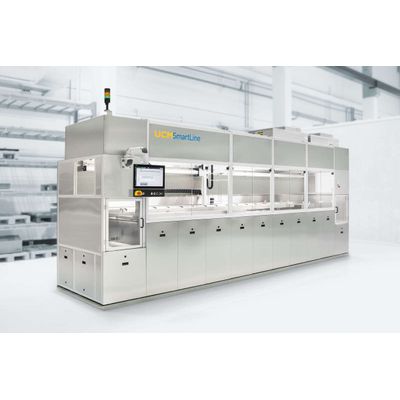

The UCMSmartLine is a modular, immersion-type ultrasonic system with up to nine wash and rinse stages. The versatile and well thought-out system concept offers numerous possibilities for solving individual cleaning tasks with the highest demands on component quality.
