ScanTech Instruments Inc. products

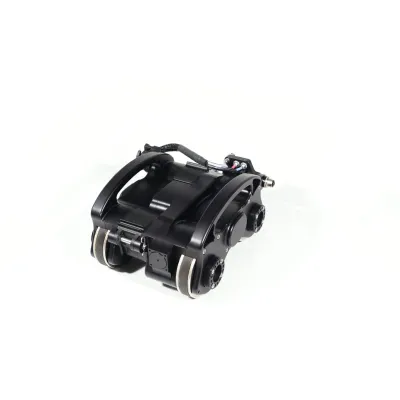

The Axis Scanner from ScanTech is a state-of-the-art scanning platform engineered to deliver high power density and exceptional versatility in industrial settings. Built upon ScanTech’s advanced Wheel Pack™ (WP) platform, this scanner is designed to perform ultrasonic B-Scans with precision and efficiency on small radius vessels, dryer rolls, and piping. The Axis Scanner combines robust, field-tested components with cutting-edge technology, ensuring unmatched reliability, performance, and ease of use.

The Vertex Scanner from ScanTech is a modular, two-axis platform engineered to meet rigorous industrial inspection demands. It is compatible with various systems, making it versatile for inspecting both ferrous and non-ferrous materials. The scanner's modularity allows for toolless attachments for different arms and multi-probe weld scans. It integrates seamlessly with the Analyst Controller and software or third-party Phased Array systems. The straight-line probe lift improves ruggedness and positional accuracy. The device's stability is enhanced by a patented anti-tip probe gimbal and a near-constant force spring design, ensuring superior performance over welds. Applications include corrosion mapping, weld inspections, and general ultrasonic testing. It offers high compliance suspension for adaptability and a lightweight, modular, multi-probe configuration. The Vertex Scanner is compact, with dimensions of 10.5 inches in length, 7.5 inches in width, and 5.0 inches in height, and weighing 15.0 lbs. It achieves up to 36 inches per second scan speed and can inspect pipe diameters as small as 3 inches.

The Joystick X-Series is an essential add-on for the X3 and XR Spider Scanner packages, offering enhanced control and precision. Its lightweight, durable build and easy-to-use design make it an excellent choice for daily operations, providing: Ergonomic Comfort: The joystick is designed to fit comfortably in your hand, allowing for intuitive control and less strain during operation. Durable Construction: Built to endure the rigors of field use with minimal maintenance requirements. Ease of Installation: Simple plug-and-play setup with minimal configuration needed, connecting directly to the scanner’s controller box. Lightweight Profile: Easy to transport and handle, making it ideal for mobile use across various job sites.
