Schutte Hammermill products

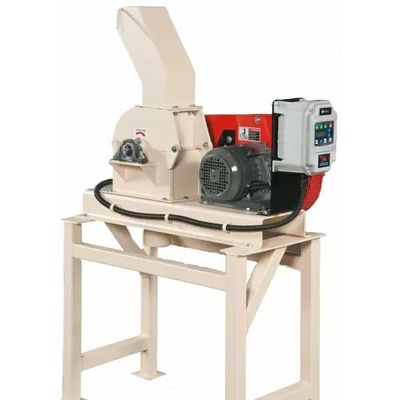

Laboratory Scale Hammer Mill

Robust, portable gravity discharge hammer mill. Scalable and ideal for batch, small production or pilot projects. The compact, yet ruggedly constructed Laboratory Scale Hammer Mill offers tremendous flexibility while producing results comparable to production scale models. Highly versatile and able to reduce a variety of materials to a fine granular or powder consistency, the Lab Scale Series is is available in two standard sizes with a choice of carbon or stainless steel construction. Optional internal, replaceable wear plates may be added for processing more abrasive materials.

Schutte Hammermill - Model DataKiller Pro - DataKiller Pro

The DataKiller Pro is a One Pass Data and Electronics Destroyer by Schutte Hammermill The DataKiller Pro features a unique shredder integration with a dual stage hammer mill. This design is ideal for super-fine electronic scrap grinding, under 2MM, at very high production rates and at previously unheard of volume reduction ratios. As a result, a sub-2mm grind is achieved in one pass through the DataKiller Pro. The DataKiller hammer mill completely scours electronic media of data while simultaneously liberating the majority of components for easy separation and recycling. Featuring an industry leading ability to process HDDs at a rate of one per minute and SSDs at a rate of 12 per minute. The DataKiller Pro can also process cell phones, printed circuit boards, CDs and other types of electronic scrap – all without any system reconfiguration.

Industrial Hammer Mills - High Production

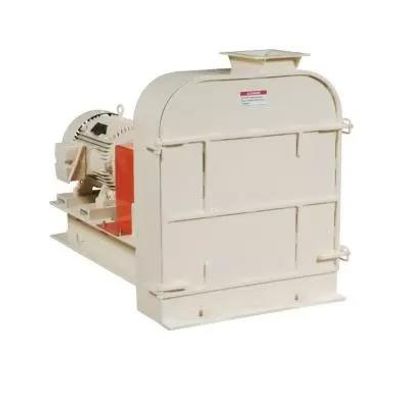

Schutte - Model 15 Series - Industrial Grinding Hammer Mill

High production hammer mill. Reduces a variety of wood materials to desired size. The 44 inch rotor diameter of the 15 Series Wood Grinder provides the tip speed required for maximum throughput using an 1800 rpm motor. With five standard sizes from (24 inch to 72 inches wide) to choose from, the 15 Series is available in either gravity or pneumatic discharge. Easy to change screens produce the exact desired finished particle size from one inch to sawdust.

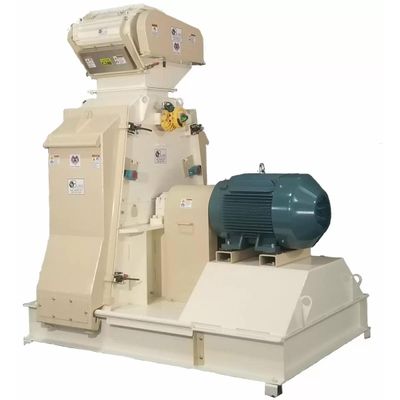

Schutte - Model 44 Series - Full Circle Screen Hammer Mill

CSE Bliss hammer mills, our sister company, are designed for superior performance in even for the most demanding applications. Our rugged construction and flexible configurations promise the perfect grind, every time, for any application. The 44 Series hammer mill is designed for very high production grinding of agricultural products, feed and grain, light wood waste and other relatively easy to grind materials. The nearly full circle screen translates to a larger open screen area and thus the highest possible production rates on materials that do not require initial grinding against a breaker plate. These mills feature heavy duty housing designed to minimize noise and vibration, sliding doors that offer full access to the grinding chamber, and versatile hammer styles with flexible configurations to suite any application.

Industrial Hammer Mills - Medium Production

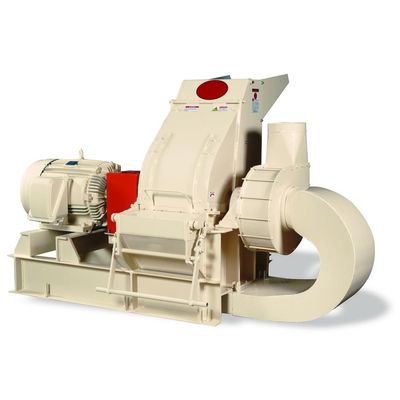

Schutte - Model 13 Series - Industrial Grinding Hammer Mill

Mid-range production hammer mill with economical built in fan. Reduces a variety of wood materials to desired size. The extremely versatile 13 Series produces the ideal finish grind without sacrificing throughput. Available in four standard sizes (13” to 36” wide) with integral fan units, and a larger 48” model that operates with a separate fan unit, the 13 Series hammer mills have a wide range of applications. The standard hammer mill operates at 3600 RPM and features a powerful material handling fan which is mounted onto the main mill shaft. With this unique combination only one motor is required to drive both the mill and the fan thereby saving horsepower and valuable floor space.

Schutte - Model 38 Series - Full Circle Screen Hammer Mill

CSE Bliss hammer mills, our sister company, are designed for superior performance in even for the most demanding applications. Their rugged construction and flexible configurations promise the perfect grind, every time, for any application.

Schutte - Model 22 Series - Full Circle Screen Hammer Mill

The 22 Series is a high speed, mid-range production, full circle screen hammer mill designed for efficiently processing agricultural products, feed and grain, light wood waste, and other relatively easy to grind materials. The nearly full circle screen coverage of the rotor translates to a larger screen open area and thus the highest possible production rates on materials that do not require initial grinding against a breaker plate. The nearly full circle screen translates to a larger open screen area and thus the highest possible production rates on materials that do not require initial grinding against a breaker plate. These mills feature heavy duty housing designed to minimize noise and vibration, sliding doors that offer full access to the grinding chamber, and versatile hammer styles with flexible configurations to suite any application.

Industrial Hammer Mills - Lab, Pilot Scale

Schutte - Model 18 Series - Pilot Scale Circ-U-Flow Hammer Mill

Pilot scale full circle screen hammer mill. High speed, ideal for low to mid range production, and batch processing of light agricultural products.

Schutte - Mini Mill

The Schutte Hammermill Mini Mills offer the same operational capability of larger size reduction equipment at the fraction of the price.

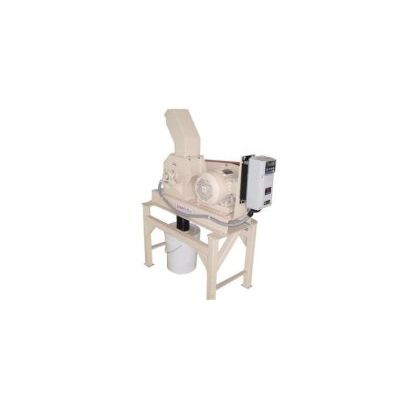

Schutte - Model W Series - Laboratory Scale Hammer Mill

The compact, yet ruggedly constructed W Series Laboratory Scale Hammer Mill offers tremendous flexibility while producing results comparable to high production models. A robust, portable gravity discharge hammer mill, the W Series is scalable and ideal for batch, small production or pilot projects. It is highly versatile and able to reduce a variety of materials to a fine granular or powder consistency. The W Series is available in two standard sizes with a choice of carbon or stainless steel construction. Optional internal, replaceable wear plates may be added for processing more abrasive materials.
