Sciential Solutions LLC products

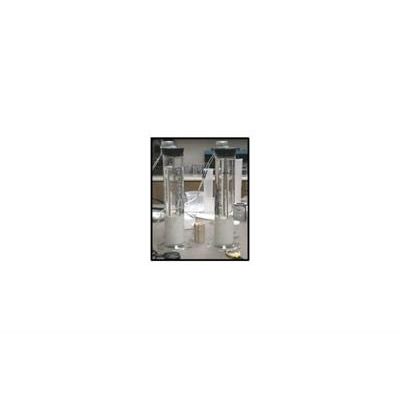

Sedimentation is the separation or concentration of suspended solids particles from a liquid by settling. Sedimentation can be divided into two operational processes, clarification and thickening. The objective of the thickener is to increase the suspended solids concentration, whereas the objective of the clarifier is to produce a clear effluent.

In a rotary vacuum drum filter, a porous media or filter cloth is supported by the cylindrical drum surface and passes through the sludge vat while the partially submerged drum rotates under applied vacuum (negative pressure). The slurry is sucked from the vat with the liquid passing through the media and the solids retained on the media. The liquid is collected through a series of internal piping and valve arrangement, while the dewatered solids are scraped off the surface of the media.

In filter press dewatering, high pressure is directly applied to the sludge against a porous media supported by a plate. Typical pump pressures range from 100 psi to 225 psi. As the pump develops pressure, the sludge is forced onto the media lined plates. The filtrate flows through the media and exit through channels. After a pre-set pressurized time (cycle time), the sludge pump(s) are stopped, the feed line drained, and the press begins to unload. The moving end of the unit retracts and separates the plates, allowing the filter cakes to fall from the plates.

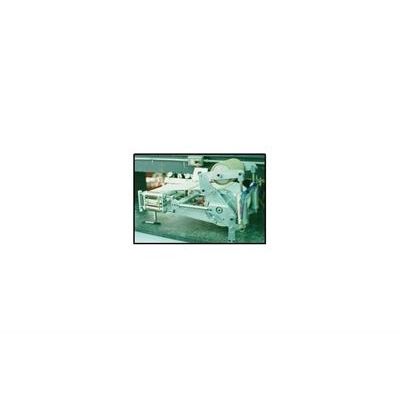

Pretreated (chemically conditioned) feed sludge is introduced to the gravity drain deck where furrowing plows move the sludge to allow free water to drain. As the sludge travels along the belt filter, the sludge is fed into a low pressure wedge zone where the sludge is trapped between the upper and lower belts. As the belts converge on the initial contact point of the first pressure roll, the sludge is dewatered by the increased pressure. Final dewatering occurs in the high pressure zone as the trapped sludge travels through a series of smaller diameter rollers with sharp turns.

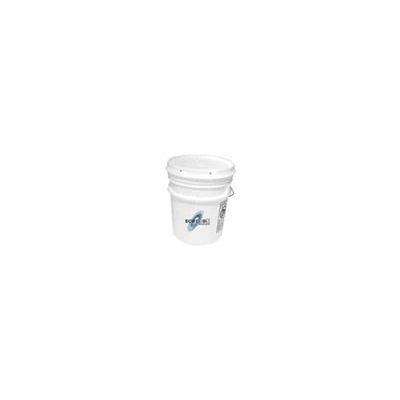

Chemical products are used for water and wastewater treatment. Application Use: Flotation, Sedimentation, Dewatering.

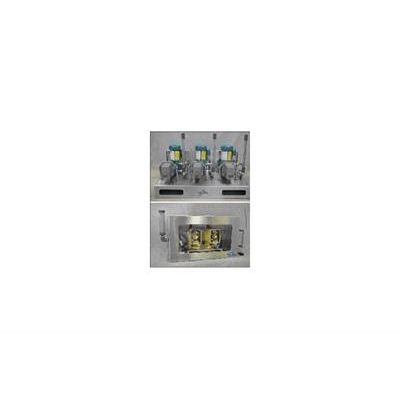

Sciential Solutions provides polymer blending units designed for improved blending and mixing for full activation of liquid polymer in one compact unit. The rugged design provides protection from harsh environments, ease of operation and servicing. Proper polymer make-down and dosing equipment is vital to achieve optimum efficiency and performance for applicable water and wastewater treatment. Sciential Solutions’ equipment is engineered to provide proper polymer activation and solution aging and will provide years of trouble-free service. Our equipment is available for liquid applications with either manual or automatic controls and can be sized to accommodate a wide range of dosage demands.

Metering pumps by Sciential Solutions have been manufactured for reliability and precision. The pumps are designed to handle a wide range of chemicals. These wastewater and water chemical pumps feature a full adjustability over the entire operating range.
