ScreenCo Systems / Scott Meyer products

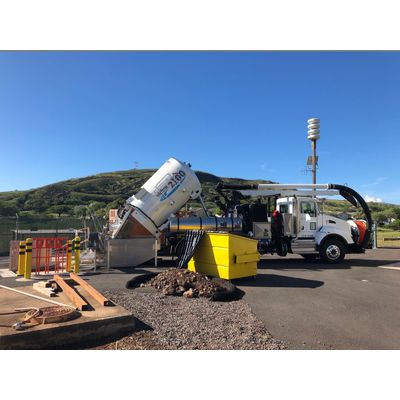

US PATENT #D757,889 Dual Screen Design. Screen includes all the same great features as the rest of the screening systems line.  Includes 51 square feet of screening area, fed by a 6” or 8” inlet with dual fan spreaders deflecting waste down onto the screen making front screen virtually self-cleaning.  Complete Industrial Vac Tank cleanout is capable with the optional side and front splash sheeting.  This allows for Vac Truck to simply back over the front of the unit and raise rear tank-opening and hoist for full tank clean out.  Processes up to 1,000 GPM with 6" inlet or up to 1,600 GPM with optional 8" inlet, of wet well or septic waste, and 8” cam outlet fitting.  This Screen is second to none in the industry for its volume and ease of trash removal.

US PATENT #D757,889 Dual Screen Design. Screen includes all the same great features as the rest of the screening systems line.  Includes 40.5 square feet of screening area, fed by a 6” inlet with dual fan spreaders deflecting waste down onto the screen making the front screen virtually self-cleaning. Complete Industrial Vac Tank cleanout is capable with the optional side and front splash sheeting. Capable of processing up to 1,000 GPM, with 8” outlet cam fitting.  This unit is second to none in the industry for its volume and ease of trash removal. The patented Dual Screen Design is unique, totally non-mechanical, and uses gravity to separate trash from the waste stream. The standard Screen features all aluminum construction with stainless steel 3/8” gapped bar screens on opposing angle.

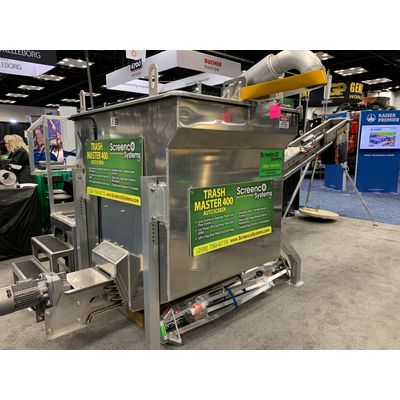

US PATENT PENDING #29/680,577 Dual Screen Design. The all new Trash Master 400 Auto Screen uses gravity to separate the trash from flow stream through a 4” Inlet with Fan Spreader to power offload Vacuum Trucks to the Screen.

US PATENT #D757,889 Dual Screen Design. Screen includes all the same great features as the rest of the screening systems line.  Includes 20.5 square feet of screening area.  The system allows for gravity off load of 500 GPM through a custom dump hose that telescopes and pivots latterly, with a 6” rear cam outlet.  A fan spreader deflects waste down onto the screen, making the front screen virtually self-cleaning.  The patented Dual Screen Design is unique, totally non-mechanical, and uses gravity to separate the trash from the waste stream.  The standard Screen features all aluminum construction with stainless-steel 3/8” gapped bar screens on opposing angles.

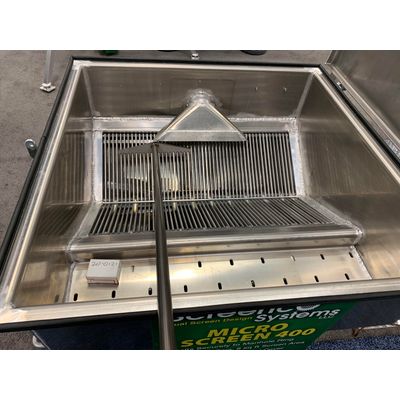

The Micro-Screen 400 comes in two options! A stand alone unit with adjustable height legs, or flat to mount to a tank or over a manhole! Trash chute can be bolted to both either side for versatility!

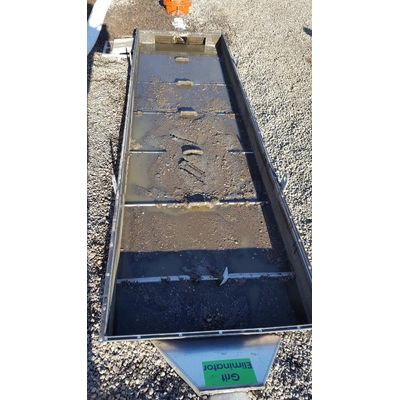

Sediment that accumulates in on-site storage tanks can become difficult and painstaking to remove. It`s much easier to filter it first. The time proven Grit Eliminator from Screenco Systems is designed to harness simple gravity to keep your on-site storage grit free. Large onsite receiving plants have benefited from our extra large open top 152 cubic foot Grit Eliminator which can be lined with 1/2" plastic liner for easy cleanout with trackhoe. Ideal for concrete slurry cleanup and removal.

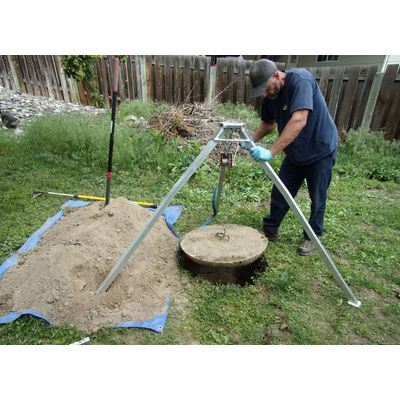

Take the stress and strain out of lifting and removing septic tank lids. Save your back! Our heavy duty, custom made tripods are made in the U.S.A using 800 lb. Auto Brake Winch that will easily lift up to 600 lbs. Built by septic pumping professionals for the septic pumping industry. All of our tripods feature 1" aluminum cleats beneath the feet for strong grip into soft soils. Available in 4`, 5` and 6` leg lengths. New model with 5`-7` telescoping legs available. Makes pump removal from chambers and lift stations easy!  Price varies by size and available options. Call or email today for pricing.

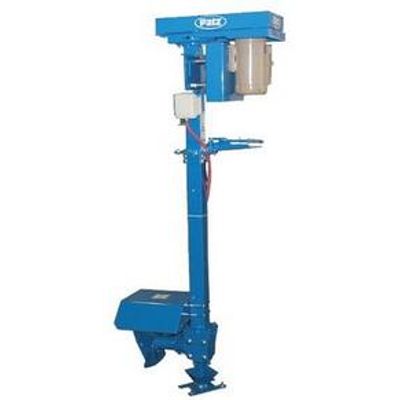

The Patz line is a great fit for ScreencoSystems. Proven in the Ag and Dairy Industry for 68 years. There is no other pump design like this in the septic and grease handling industry today. Patz unique vertical pit pumps offer a fast and efficient way of mixing and pumping at the same time.

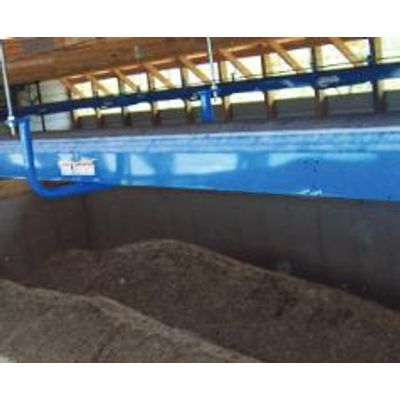

atz conveying systems are proven in the Ag and Dairy industry since 1948. Their conveying systems move material efficiently and cost effectively. The 8912, 8916 or the 1608 belt conveying systems feature belt widths of 12" or 16", smooth or textured belts for cold weather materials with 10` sections up to 20` spans available. These conveyor systems can be used to move biosolids, trash or any other bulk material to disposal or onsite storage. Add a 10`, 8912 model to any one of ScreencoSystems screening units to move trash to dumpster or storage. Belt speeds of 65 FPM up to 370 FPM with inclines from 15° to 30° and belt drive or gear box direct drive electric motors. Patz systems also include steel chain or rubber flite conveyors for material handling.

Pivots easily, fast agitating, quick consistent blending of dairy or hog manure.
