Secon Components S.L. products

Dimensions of the press. Loading hopper: 7 m². Volume compaction compartment: 69 m³. Total length compaction compartment: 11 m. Max. external dimensions: 23 m x 2,4 m x 4 m.

General specifications. Application: solid waste. Capacity: 35 tons/hour. Longitudinal distance between axles: 18.000 mm. Net width: 1.600 mm. Electric motor: abb/siemens. Motor capacity : 15 kw. Lubrication : oil bath. Tailor-made solutions according to client`s specifications.

Secon Components offers the possibility to integrate a roller/magnet into its silos/bunkers for BIOMASS/RDF. This roller/magnet, to be installed in the rear part of the silos/bunkers extracts the ferrous parts from the BIOMASS/RDF.

The sorter silos of Secon Components are manufactured robustly and are very maintenance- friendly. The moving floor (Cargo Floor) profiles are chosen according to each specific application (for instance, necessity of watertightness, degree of abrasion of impact of the falling waste). Tevlon sliders avoids friction between metals and guarantees a good sliding and long life of the equipment. The reversibility possibility improves the versatility of the system.

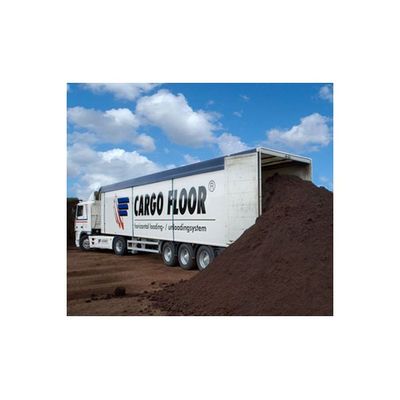

Bodywork welded to lower longitudinal body beams. The Cargo Floor system consists of 21 alu profiles supported by double-T crossbeams at a distance of 350mm. Laterals are constructed by alu body planks from 300 up till 600 mm wide, welded between upper and lower profiles. Chassis structure made of double -T profiles which match with longitudinal lower profiles. Body equipped with following accessories. Toolbox, fire-extinguisher box, front ladder, mudflaps, rear ladder and rubber buffers.

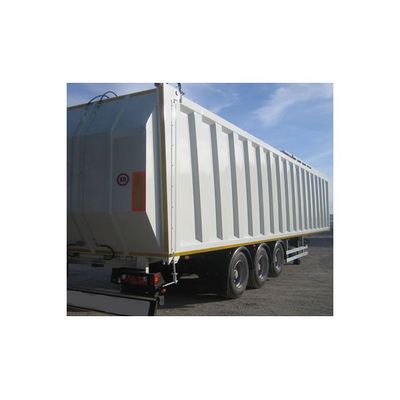

SECON COMPONENTS designs self-compacting semi-trailers of 72m3 with a compactation ratio of 1:5. This high compactation ratio is achieved by a `step by step` compactation during the loading. This same compacting device achieves a complete horizontal unloading in 4 minutes. All operations can be directed by a remote control.

Net capacity of 23 cbm. Weight equipped vehicle : approx. 16.500kg. Weight of equipment : 7000 kg. Working pressure : 190 bar. Max compression ratio : 600%. Max. payload : approx. 16.500 kg (GVW : 33.000 kg). Max. payload : approx. 23.500 kg (GVW : 40.000 kg). Dimensions of the hopper : height : 2800mm. Dimensions of the hopper : width : 2058mm. Cycle time : 25 seconds. Unloading time : 60 seconds. Hopper and ejection plate made of ST-42, and Hardox-400 plating with thickness between 4-6 and 8 mm.

Bodywork welded to lower longitudinal body beams. The Cargo Floor system consists of 21 alu profiles supported by double-T crossbeams at a distance of 350mm. Laterals are constructed by alu body planks from 300 up till 600 mm wide, welded between upper and lower profiles. Chassis structure made of double -T profiles which match with longitudinal lower profiles.

Bodywork welded to lower longitudinal body beams. The Cargo Floor system consists of 21 alu profiles supported by double-T crossbeams at a distance of 350mm. Chassis structure made of double -T profiles which match with longitudinal lower profiles. Side door: optional. Side doors could be installed with opening space until 6000mm. Interior and exterior finishings are totally flat.

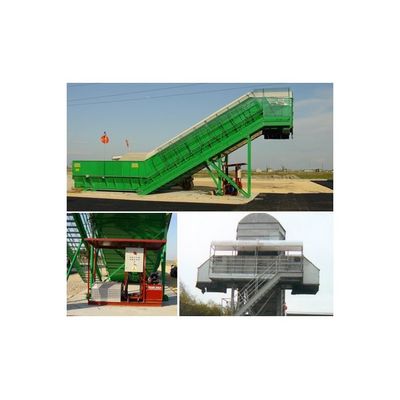

This single reception belt transfers residues of refuse collectors, skiploaders, etc into moving floor trailers , self-compacting trailers or static compactors. Secon Components presents a wide range of transfer belts in order to design a tailor-made installation for our clients. Our reception/transfer belts are very easy to mount and be managed only by one employee.
