Second Intelligent Equipment
14 products found
Second Intelligent Equipment products

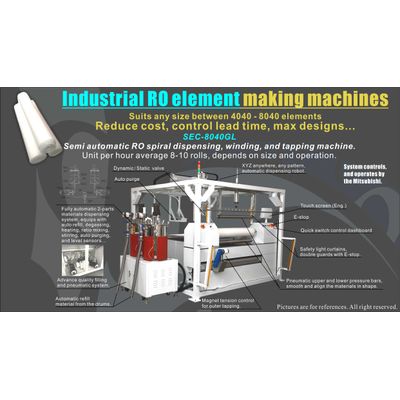

Model SEC8040 - 4-8 inch industrial RO cartridge element dispensing and spiral winding machine
Equipment introduction: The equipment is using for industrial RO membrane cartridge element rolling. Two people operate at the same time. The tricot leaves are manually place on the rolling table, and the machine automatically performs dispensing and winding. The operating table will rise accordingly to the number of measured layers of the membrane. While decreasing to keep the dispensing surface height consistent, the dispensing line stable, and good winding result. At the same time, the device is compatible with automatic dispensing winding, and the winding tension can be adjusting accordingly. The machine is safe and stable operation and high efficient, it is suitable for 4-8 inches type of cartridge element productions.

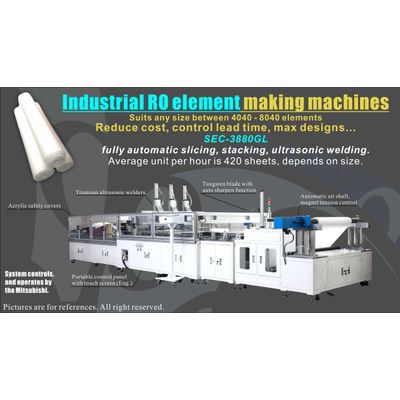

Model SEC-3880 - RO cartridge element carrier membrane prepping machine
This is fully automatic industrial RO carrier membrane automatic slicing, indexing, and welding machine. The machine is able to cut the carrier membrane to its designed length, layout with indexing distant, and welding them together one by one. Operators only need to load the membrane material in roll upon the racks, set parameters, press the start button, the machine will produce automatically, absolutely no labor needed in between till material was completed. It is easy operation, stable production, safety, reliability and high efficiency.
Model SEC-4880GL - Automatic domestic RO cartridge element rolling machine (fully automatic)
Use the inflation shaft to expand the deflector to prevent the deflector from slipping. The magnetic powder brake brakes the guide cloth, and the guide cloth is in a constant tension state, so that the film winding effect is better. Realize the automatic feeding of the center tube, automatically locate, automatically identify whether the feeding is in place, automatically remove the upper anti-center tube, and collect. Ultrasonic automatic welding system has the advantages of fast welding speed, high welding strength, good sealing performance, no pollution, etc. It can also identify and avoid the position of water collecting holes on the center pipe for welding. Automate welding.

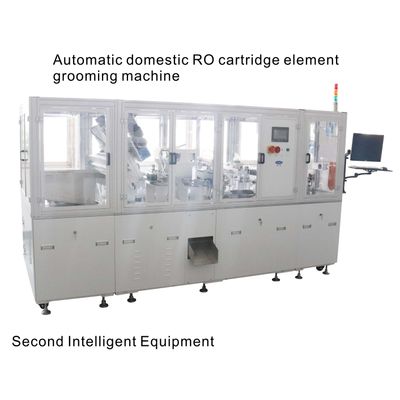

Second RO Tech - Model SEC-1860WT - Automatic domestic RO cartridge element grooming machine
This equipment is using to process the rolled cartridge element. It can cut and pull off the unwanted edges from both sides of the element. And add two o-rings, test air tight, label bar-code, and scan to record the production. Operator only need to load the rolled cartridge elements onto the bin, and the machine will process fully automatically one after another. The machine is effective, safe, stable, and meet high capacity need.
Second RO Tech - Model SEC-80WD-LP - Automatic domestic RO element leaf prepping machine SEC-80WD
This is a fully automatic leaf prepping machine for domestic RO element. It cuts membrane vertically. Operator load membrane and spacer on the machine, and set the parameter. After setup, the machine will start, cut, insert, and fold the leaf and unload them one by one on the collection table. It suits membrane and spacer between 250-350mm.
Second RO Tech - Model SEC-2880GL - Automatic RO membrane slitting machine
The equipment is suitable for fixed-length cutting of membranes, nets, and other various element materials. It can cut sheets with a width of 150-1100mm. After manual feeding, the equipment automatically completes the fixed-length cutting. After the set number of cuts, the equipment will automatically stop. And alarm to remind. The parameters can be set, stable and reliable, and the operation is simple. One person can watch multiple sets of equipment at the same time.
Second RO Tech - Model SEC-75WP - Bullnose assembling machine SEC-75WP
This equipment is used to assembling the brine seas / bullnose onto the cartridge element. The equipment is small and compact, and it is compatible with different clamping claws, different sizes can be match with different pneumatic claws. Operator just place the brine seal / bullnose onto the pneumatic claw, and place cartridge element on it, it will lock and seal into its place. Quick and easy.

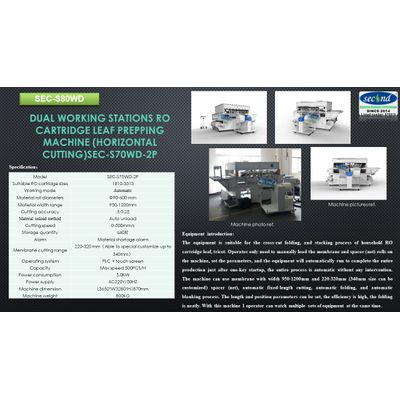

Second RO Tech - Model SEC-70WD - Fully automated domestic RO element leaf prepping machine
This is a fully automatic element leaf prepping machine. It does not need any labor once set. Operator load the membrane and spacer onto the machine, and set the parameter. The machine will cut, insert, and fold to its designed sizes, and stack all in the collecting point and wait to be collected. It suits for all membrane materials that has width 950-1200mm and 220-350mm spacers. With this machine, one operator can oversee a few machines at the same time.
Second RO Tech - Model SEC-202TM - PP and ACF filter rolling machine
The equipment is using to roll carbon fiber filter. It is operating by two people at the same time. The man-machine interaction part is equipped with light curtain safety protection. The equipment can complete the welding of non-woven fabric and central tube. The material is rolling, and after the rolling completed, the equipment is hot-pressed and sealed, and the material is manually cutting. Equipment performance problems, safe and reliable, high efficiency.
