SED Flow Control GmbH products

CONSTRUCTION : Diaphragm valve. MISSION On/off application. VERSION : DIN. MEDIUM TEMPERATURE -10 to 150°C / 14 to 302°F. AUXILIARY ENERGY pneumatic. NOMINAL SIZE DN 8 to DN 20. NOMINAL PRESSURE 8 bar. LINING without.

Two-way diaphragm valve, Series: KMD, Diaphragm size: MA 10, Efficient plastic piston actuator direct assembledwith the valve body, CDSA sealing concept.

Weight ca. 0,7 kg Valve body types see page 115 - 117 Control equipment and accessories see page 132 - 139.

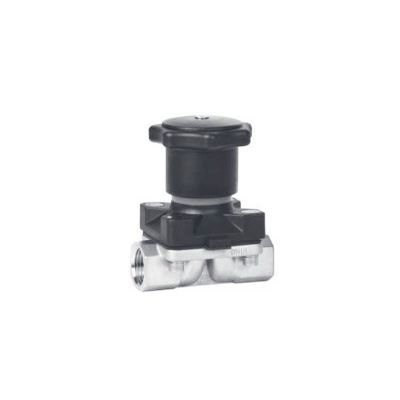

Two-way diaphragm valve. Series: KMD. Diaphragm size: MA 10. Stainless steel bonnet and plastic hand wheel. CDSA sealing concept.

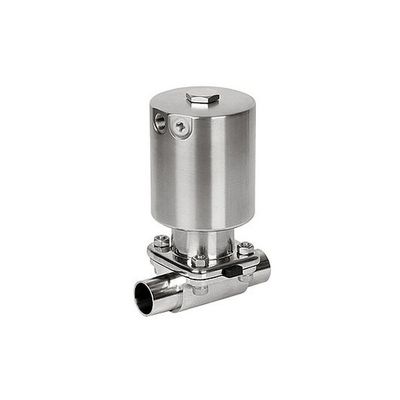

Two-way diaphragm valve, Series: Steripur, Diaphragm size: MA 25 to 50, Stainless steel actuator, CDSA sealing concept, Autoclavable.

USAGE: On/off service. Throttling service. Pressure swing adsorption (PSA).  ACTUATOR MOTION: Linear. RATED TRAVEL: 7.5 mm to 30 mm. SUPPLY:Pneumatic. VERSION:Standard. FAIL-SAFE ACTION:Reversible.

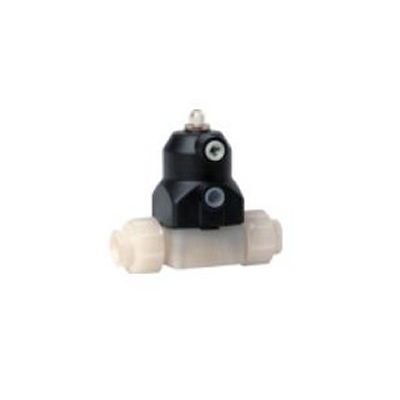

Pneumatically Operated Valve DN 10 - 15 mm (3/8` - 1/2`). Efficient plastic piston actuator.

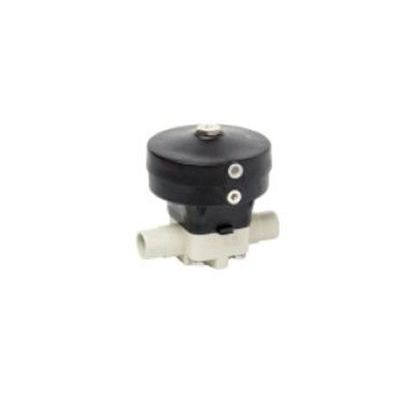

Pneumatically Operated Valve DN 15 - 100 mm (1/2` - 4`). Plastic diaphragm actuator.

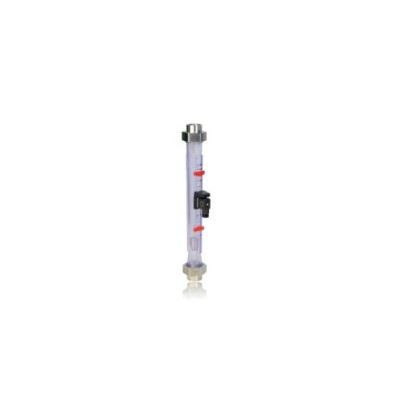

These flowmeters operate according to the variable area principle, where a float is suspended in upward flowing media in a tapered plastic tube. The vertical position of the float within the metering tube depends on the flowrate of the media. The measuring range is usually 1:10 where the scale is uniformly graded on the measuring tube. The measured value is determined by the upper edge of the float and can be easily read on the scale.

Pilot valve, Pilot valves offer high operational reliability when controlling booster valves, solenoid valves and valves according to ISO 5599/1 with CNOMO connection pattern. Suitable for booster valve SAMSON Type 3756. Housing made of polyamide (black), polymethylene (green, amplifier). Flange connection or attachment with CNOMO adapter plate. reverse polarity protection.he pneumatically operated valve actuators by pneumatic lines.
