Sedeco Vision Components products

MV-CE200-11GM camera adopts Sony IMX183 sensor to provide high-quality Image. It uses GigE Interface to transmit non-compressed images In real time with max. frame rate reaching 6 fps. Sony IMX18 CMOS 1" CMOS Rolling Shutter. Resolution: 5472 x 3648 pixels. Frame rate: 6 fps. Exposure time: 46 µms - 2.5 sec. Dimensions: 29 mm x 29 mm x 42 mm.

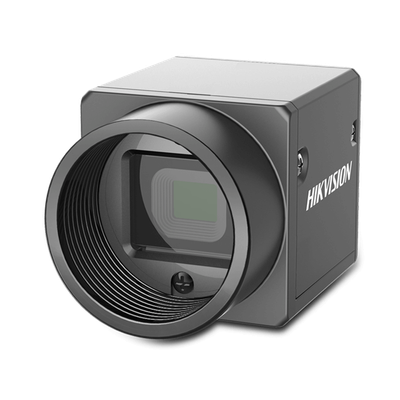

The Hikvision MV-CA003-21UM/UC 0.3 MP 1/4" CMOS USB 3.0 Camera Is a high quality device that can be used in a variety of applications, including electronic semiconductor fabrication, factory automation, logistics code reading, bottle inspection and medical packaging. 1/4" CMOS sensor. Resolution: 640 x 480 pixels. Frame rate (MV-CA003-21UM): 814 fps. Frame rate (MV-CA003-21UC): 404 fps. Exposure time: 3 µs to 10 s. Dimensions: 29 mm x 29 mm x 30 mm.

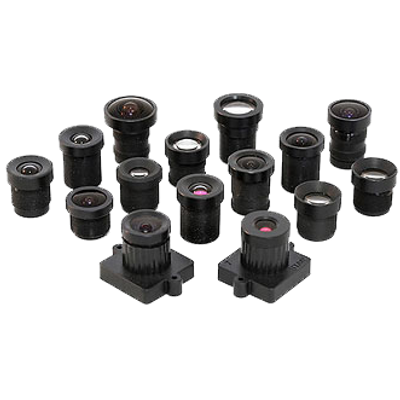

The S-Mount lens Lensagon B4M1920NDC is suitable for common sensors up to 4 megapixel with an image format of 1/2.9 inch. It is characterized by a particularly high light intensity. CRA<10°, Entrancepupil D0.97mm, P=3.48mm right from first lens surface.

Capable of excellent output power over 1,300,000 lx. Extensive lineup of highly uniform S type available. A forced air cooling type is also available for the Brimax line light. Lineup includes the light emission sizes from 100 to 3,000 mm in 100 mm increments. For highly uniform specification, -S is attached at the end of each model. Matching power supplies: IWDV-300S-48, IWDV-600S-48.
