Seebach GmbH products

Filter Systems - Filter Units

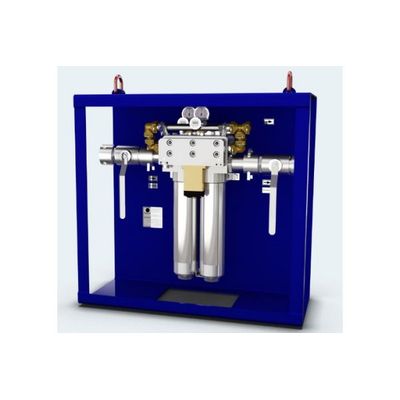

Seebach - Model 10380 - Filter Unit

Input / Output DN50SS Steck-O. Max. operating pressure 350 bar. Max. flow rate 800 l/min. Max. operating temperature 60 °C.

Seebach - Model 3226 - Filter Unit

Input / Output DN50SS Steck-O. Max. operating pressure 350 bar. Max. flow rate 1600 l/min. Max. operating temperature 60 °C.

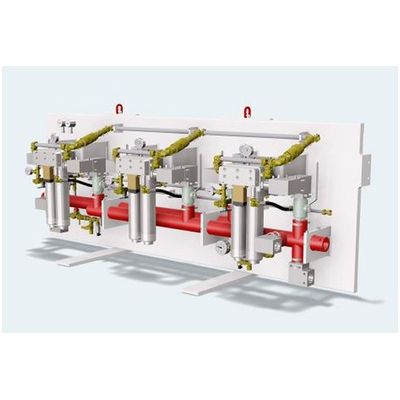

Seebach - Model 3232 - Filter Unit

Input / Output DN50SS Steck-O. Max. operating pressure 350 bar. Max. flow rate 2400 l/min. Max. operating temperature 50 °C.

Filter Elements - Filter Cones

Seebach - Model 10894 - Filter Cone

Execution pleated. Joining method welded. Filter medium sintered metal fiber. Outer diameter 220 mm. Filter rating 75 µm. Material stainless steel AISI 316

Seebach - Model 10443 - Filter Cone

Execution pleated. Joining method welded/glued. Filter medium wire mesh. Outer diameter 540 mm. Filter rating 30 µm. Max. differential pressure 5 bar. Material stainless steel AISI 304.

Filter Systems - In-line / Candle Filters

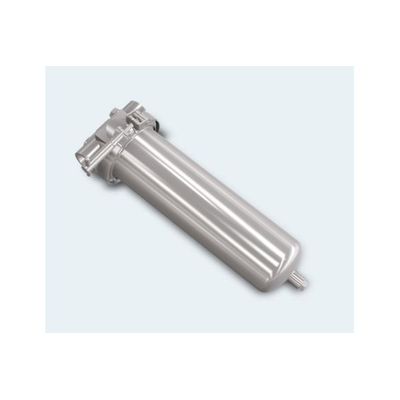

Seebach - Model 10611 - Low Pressure

ID : 10611. Input / Output : G11/2. Filter rating : Coalescer 3µm. Max. operating pressure : 85 bar. Max. operating temperature : 100°C. Backflushable : no.

Seebach - Model 10959 - Low Pressure

ID : 10959. Input / Output : G1. Filter ratingas requested. Max. operating pressure : 10 bar. Max. operating temperature : -10 bis 150°C. Backflushable : no.
