Senix – a division of BinMaster Sensors and Technologies LLC products

Product code: TS-100.03-1inch. Minimum Purchase: 1 unit. Bulk Pricing. Buy in bulk and save. Max Measuring Distance: 3 ft (91 cm). Optimum Measuring Distance: 2 ft. (61 cm). Deadband: 0-1.75 in (0-4.5 cm). Temperature Range: -40° to 158° F (-40° to 70° C). Protection: NEMA 4X, IP 68, NEMA 6P. Area Classification: Ordinary Locations. Cable Length: 6.5 feet. Mount: 1 inch NPT. Dimensions (L x Dia): 4.06 in (103 mm) x 1.315 in (33.4 mm). Housing: 316 Stainless Steel. Legacy Part Number: TSPC-N1S2-485. Output: Buy RS-485 Online, RS-232 Available.

Product code: TS-100.03-30mm. Minimum Purchase: 1 unit. Max Measuring Distance: 3 ft (91 cm). Optimum Measuring Distance: 2 ft. (61 cm). Deadband: 0-1.75 in (0-4.5 cm). Temperature Range: -40° to 158° F (-40° to 70° C). Protection: NEMA 4X, IP 68, NEMA 6P. Area Classification: Ordinary Locations. Cable Length: 6.5 feet. Mount: 30mm Straight Thread. Dimensions (L x Dia): 4.062 in (103.2 mm) x 1.18 in (30 mm). Housing: 316 Stainless Steel. Legacy Part Number: TSPC-30S2-485, TSPC-30S2-232. Output: RS-485 or RS-232.

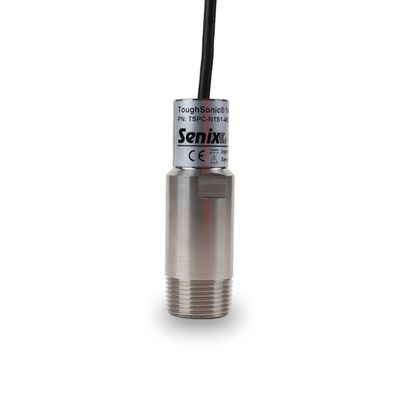

Product code: TS-100.14-1inch. Minimum Purchase: 1 unit. Max Measuring Distance: 14 ft (4.3 m). Optimum Measuring Distance: 10 ft (3 m). Deadband: 0-4 in (0-102 mm). Temperature Range: -40° to 158° F (-40° to 70° C). Protection: NEMA 4X, IP 68, NEMA 6P. Area Classification: Ordinary Locations. Cable Length: 6.5 feet. Mount: 1" NPT Thread. Dimensions (L x Dia): 4.062 in (103.2 mm) x 1.32 in (33.3 mm). Housing: 316 Stainless Steel. Legacy Part Number: TSPC-N1S1-485, TSPC-N1S1-232. Output: RS-485 or RS-232.

Product code: TS-100.14-30mm. Minimum Purchase: 1 unit. Max Measuring Distance: 14 ft (4.3 m). Optimum Measuring Distance: 10 ft (3 m). Deadband: 0-4 in (0-102 mm). Temperature Range: -40° to 158° F (-40° to 70° C). Protection: NEMA 4X, IP 68, NEMA 6P. Area Classification: Ordinary Locations. Cable Length: 6.5 feet. Mount: 30mm Straight Thread. Dimensions (L x Dia): 4.062 in (103.2 mm) x 1.32 in (33.3 mm). Housing: 316 Stainless Steel. Legacy Part Number: TSPC-30S1-485, TSPC-30S1-232. Output: RS-485 or RS-232.

Product code: TS-100.30-1.5npt. Minimum Purchase: 1 unit. Max Measuring Distance: 30 ft (9.1 m). Optimum Measuring Distance: 20 ft (6.1 m). Deadband: 0-10 in (0-254 mm). Temperature Range: -40° to 158° F (-40° to 70° C). Protection: NEMA 4X, IP 68, NEMA 6P. Area Classification: Ordinary Locations. Cable Length: 6.5 feet. Mount: 1.5 in NPT front and rear. Dimensions (L X Dia): 4.30 in (109 mm) x 1.88 in (48 mm). Housing: 316 Stainless Steel. Legacy Part Number: TSPC-15S-485, TSPC-15S-232. Output: RS-485 or RS-232.

Product code: TS-100.50-1.5npt. Minimum Purchase: 1 unit. Max Measuring Distance: 50 ft (15.2 m). Optimum Measuring Distance: 33 ft (10 m). Deadband: 0-12 in (0-303 mm). Temperature Range: -40° to 158° F (-40° to 70° C). Protection: NEMA 4X, IP 68, NEMA 6P. Area Classification: Ordinary Locations. Cable Length: 6.5 feet. Mount: 1.5 in NPT rear mount. Dimensions (L X Dia): 5.9 in (150 mm) x 2.50 in (63 mm). Housing: 316 Stainless Steel. Legacy Part Number: TSPC-21SRM-485, TSPC-21SRM-232. Output: RS-485 or RS-232.

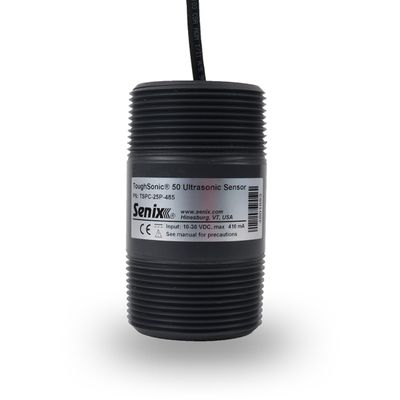

Product code: TS-100.50-2.5npt. Minimum Purchase: 1 unit. Max Measuring Distance: 50 ft (15.2 m). Optimum Measuring Distance: 33 ft (10 m). Deadband: 0-12 in (0-303 mm). Temperature Range: -40° to 158° F (-40° to 70° C). Protection: NEMA 4X, IP 68, NEMA 6P. Area Classification: Ordinary Locations. Cable Length: 6.5 feet. Mount: 2.5 in NPT front & rear mount. Dimensions (L X Dia): 5.0 in (127 mm) x 2.50 in (63 mm). Housing: PVDF Plastic. Legacy Part Number: TSPC-25P-485, TSPC-25P-232. Output: RS-485 or RS-232.

Product code: TS-100.50-clamp. Minimum Purchase: 1 unit. Max Measuring Distance: 50 ft (15.2 m). Optimum Measuring Distance: 33 ft (10 m). Deadband: 0-12 in (0-303 mm). Temperature Range: -40° to 158° F (-40° to 70° C). Protection: NEMA 4X, IP 68, NEMA 6P. Area Classification: Ordinary Locations. Cable Length: 6.5 feet. Mount: Clamp. Dimensions (L X Dia): 4.8 in (122 mm) x 2.312 in (59mm). Housing: 316 Stainless Steel. Legacy Part Number: TSPC-21S-485, TSPC-21S-232. Output: RS-485 or RS-232.

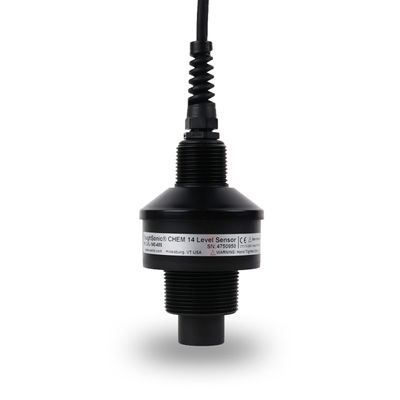

Product code: TS-200.14. Minimum Purchase: 1 unit. Max Measuring Distance: 14 ft (4.3 m). Optimum Measuring Distance: 10 ft (3 m). Deadband: < 3.5" (89 mm). Temperature Range: -40° to 158° F (-40° to 70° C). Protection: NEMA 4X, IP 68, NEMA 6P. Area Classification: Ordinary Locations. Cable Length: 6.5 feet. Mount: 1" NPT Thread Upper, 1.5" NPT Thread Lower. Dimensions (L x Dia): 4.99 in (126 mm) x 3.04 in (77 mm). Housing: PVDF. Legacy Part Number: LVL-140-485, LVL-140-232. Output: RS-485 or RS-232.

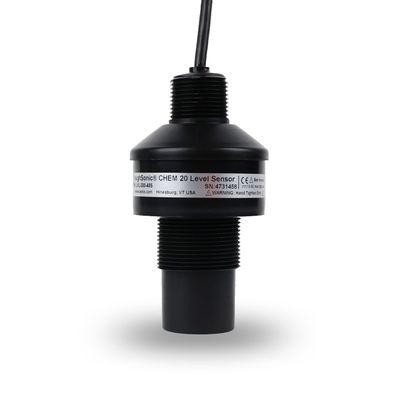

ToughSonic® 200, 20` Range, 1" NPT Upper & 1.5" BSP Lower Threads, RS-485. Product code: TS-200.20H1X.007FA. Minimum Purchase: 1 unit. Bulk Pricing. Buy in bulk and save. Max Measuring Distance: 20 feet (6.1 m). Optimum Measuring Distance: 13 ft. (4 m). Deadband: < 8 in. (20.3 cm). Temperature Range: -40° to 158° F (-40° to 70° C). Protection: NEMA 4X, IP 68, NEMA 6P. Area Classification: Ordinary Locations. Cable Length: 6.5 feet. Mount: 1" NPT Thread Upper, 1.5" BSP Thread Lower. Dimensions (L x Dia): 5.62 [143mm] x 3.05 [77mm]. Housing: PVDF. Legacy Part Number: LVL-300-485. Output: Buy RS-485 Online, RS-232 Available.
