Senqcia Maxco, Ltd. products

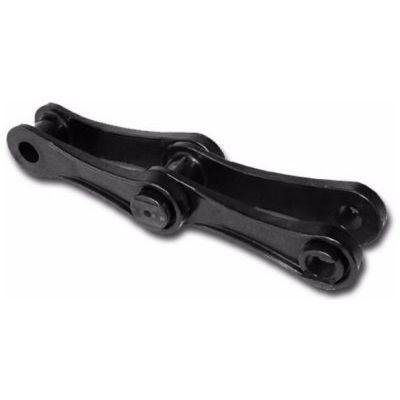

SENQCIA Inspire Series™ cottered type 304 Stainless Steel ASME/ANSI connecting links are manufactured in Japan. They offer excellent resistance against many forms of chemical attack and operate in temperatures ranging from -250 to +750 degrees F.

Superior resistance to wear and corrosion of any 78 series chain. Stainless steel construction offers high load, chemical and corrosion resistance and extremely minimal stretch, especially when compared to non-metallic NH-78 style chains. Toughest chain for the harsh extremes of clarifier drives and similar applications. Economically priced this chain is ideal for clarifier, bar screen and grit collectors, a direct replacement for H-78 and NH-78 chains.

Pitch: 2.609" . Working Load (Max): 1,750 lbs. Avg Ultimate Strength: 4,000 lbs. Material: Link: Acetal. Pin: 304 SS. Sprocket: 78 Series (Metallic or Non-Metallic) . Weight: 4.0 lbs. per ft

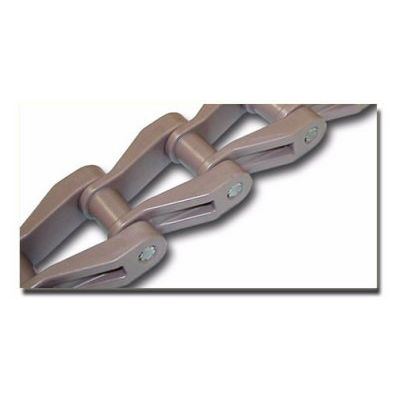

SENQCIA MAXCO’s latest generation of non-metallic 6" pitch collector chain features many enhancements to insure a long productive life in a wide range of applications and service conditions. Manufactured of Acetal Resin, the chain link has a smooth finish with a very generous cross-section. The pin press-fits into the sidebar with a "T" head interlocking arrangement and is secured without the use of pins or cotters.

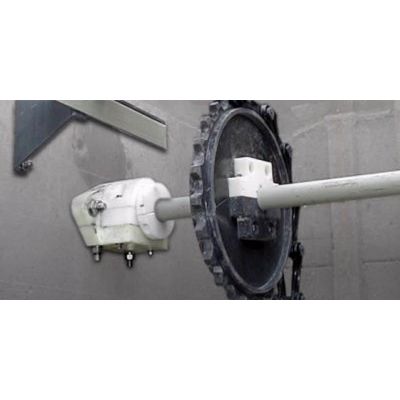

HMAX Shearpin Sprockets are made from Cast Nylon 6 and are available in both standard and jaw-clutch arrangements. HMAX Shear pin sprockets are ideal for all clarifier applications, its key benefits:

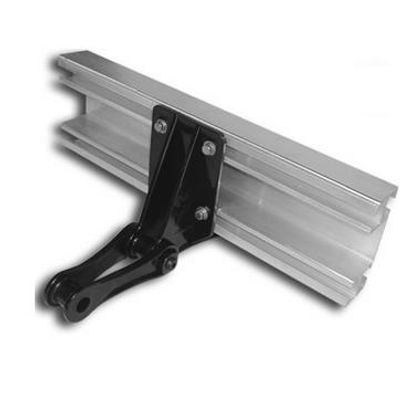

Environmentally friendly. The Aluminum Flight from SENQCIA MAXCO is the easiest flight to install as it eliminates drilling or notching and does not require filler blocks. Available in two styles, Regular (perfect for tank widths up to 24 ft) and Heavy Duty for tank widths of up to 40 ft! An optional neoprene extrusion slides into the slotted track for use as a squeegee and with just 6 locking plates to mount the extrusion installation is done in just minutes.

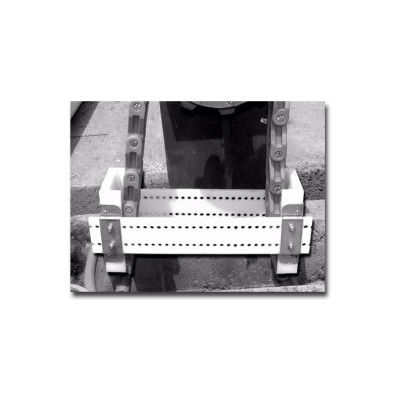

Filler B locks are made for use with "C" channel shape flight boards, material is polypropylene and is sized for both nominal 6" and 8" flights. Lightweight yet durable, HMAX filler blocks are usuable with all industry standard channel flights. Contact SENQCIA MAXCO for further details.

Snap Idler Tensioner, is the quickest and easiest drive chain tensioner to install on the market today. Simply mount the free-floating assembly around the drive chain strand and using the adjustable side plates reduce slack in the chain to the optimum location. The Snap Idler assembly does not require any anchor bolts to locate and place, and can be used with a wide variety of chain types.

Featuring a Cast Nylon body with oil filled nylon bearing inserts. Self-aligning, split design allows for bearing replacement without removing shaft. Metallic shaft does not come into direct contact with the bearing material as a thick sleeve of non-metallic material is mounted on shaft ends, extending service life by providing low friction contact surfaces between shaft and bearing.

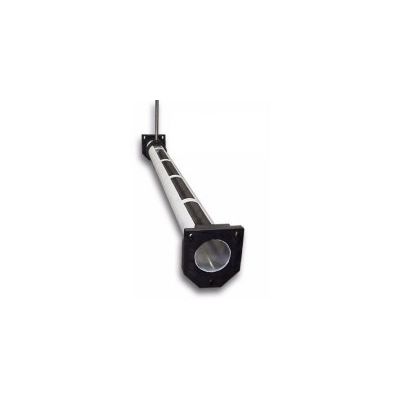

HMAX Non-Metallic Scum Skimmer Pipes feature a tube of FRP with a gel coated interior for easy release of grease or solids, limiting build-up. Wall bearings are made of long lasting UHMW-PE material. Lightweight, easy to install this scum pipe will eliminate all corrosion and unsightly build-up, common with carbon steel and even stainless steel pipes. Available with:
