Senseca Italy S.r.l. products

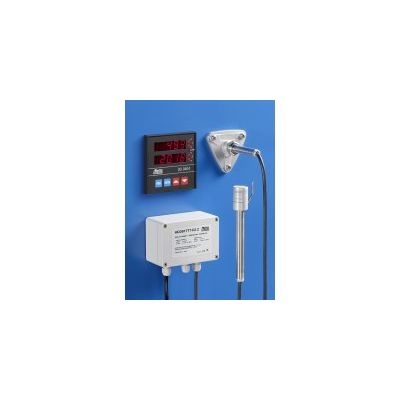

HD3817T - HD38V17T are double absolute humidity and temperature active transmitters with 4...20mA current or 0...10Vdc voltage outputs, respectively. Absolute humidity is the ratio between the mass of water vapour and the measured volume of air, and is expressed in g/m3. The transmitters of the HD3817T... family may be used in materials humidity control during a drying process. When the materials are dried through heating or a hot air flow, the air absolute humidity increase is directly proportional to the quantity of water lost by the materials. A control system measuring absolute humidity, can maintain a certain humidity level by injecting vapour or water spray in the environment, if needed. Generally, these transmitters are employed in the chemical, textile, food industry, in the production and storage of paper, in the drying of wood, even with high temperatures and wide humidity excursions.

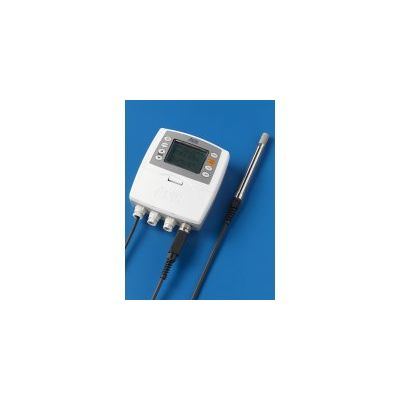

The instruments of the HD2817T... series are transmitters, indicators, and ON/OFF regulators with data logging functions, they measure temperature and humidity. They are fitted with a graphic 128x64 backlit display. The main feature of these instruments is their interchangeable probe. The probe can be replaced by the user without process interruption. Thus, the probe can be calibrated or repaired at a later time. The probe is factory calibrated and ready to use, it is provided with a SICRAM2 module which stores the calibration data of the probe, allowing the interchangeability of the probes. The instruments measure: • Temperature in Celsius or Fahrenheit temperature scale • Relative humidity and calculate: • Dew point • Absolute humidity • Mixing Ratio All models have both current and voltage outputs. Some models are fitted with two control relays and one alarm relay, configurable by the user.
