Sensitron S.r.l. products

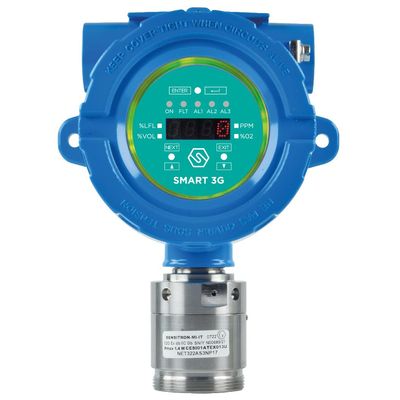

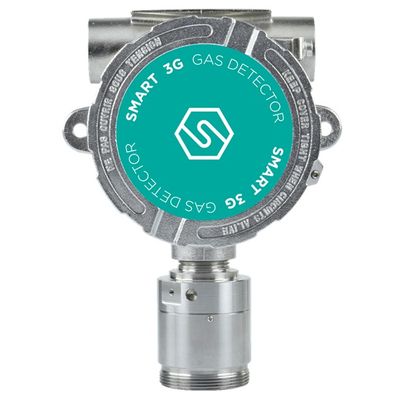

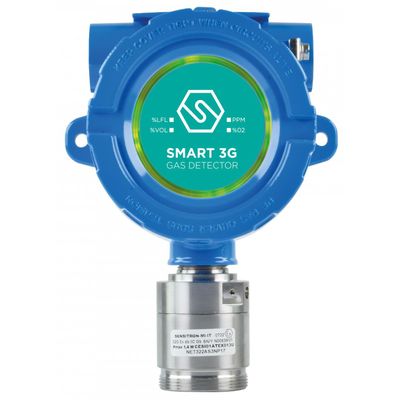

SMART3G-C2-LD is designed to meet the needs of industrial applications and assures a reliable monitoring of toxic, flammable and refrigerant gas contents in classified areas. The multi-color LED light ring assures an immediate visual indication of the detector status. Ideal in industrial environments, the SMART3G-C2-LD feature one man calibration via the STS/CKD+ calibration keypad. The SMART3G-C2-LD detectors can reliably monitor flammable compounds (% LFL), toxic compounds and refrigerant gases in ppm, Oxygen and CO2 contents in % by vol. The detectors are rated to IP65.

Electronic with1 output RS+4-20 mA. LCD display or LED. Optional 3-relay output. Optional Modem Hart. Aluminum enclosure or stainless steel. SIL2 Hardware &  SIL3 Software Certified. ATEX certified for zone 1 as II2G Ex db IIC T5 Gb.

Designed to meet with the harshest conditions of Marine environments, SMART S-MS MED line allows to monitor flammable gas contents both by employing catalytic or infrared technologies. These detectors have been certified to SIL 2 Hardware SIL 3 Software capability and are ATEX certified for zone 1 as II2G Ex db IIC T5 Gb. SMART S-MS line has also been Marine certified by Lloyd`s Register.

All devices connected to the loops feature galvanic isolation to protect the system from any electric noises coming from the field. A broad range of self-testing facilities are implemented to detect and localize possible faults. The backlit graphic LCD display provides a precise indication of the gas concentration being measured. A RS232C serial port allows the PC connection to the CPU board for the panel configuration and supervision. Report from the event memory or real-time printouts can be obtained by connecting a printer to the parallel printer port. The panels are supplied in a robust metal cabinet.

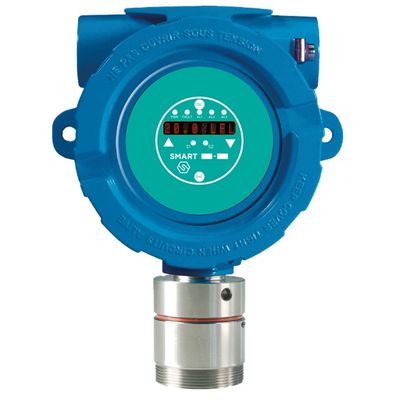

Gas detectors series SMART3 NC have been designed to offer cost effective products with Hi-Tech professional features for car parks and non-classified areas. Available for Methane, LPG, Petrol Vapours, CO, NO2 and CO2, these detectors employ a professional catalytic sensor for flammable gas detection, an electrochemical cell for CO and an infrared sensor for the CO2 detection. The SMART3 NC provide an analog 4-20 mA output signal and can be implemented with additional features to allow the instrument to have an RS485 communication or three-relay output. SMART3 NC gas detectors are rated to IP55.

Designed for machinery rooms, laboratories and non-classified areas. The SMART3-R have been designed for non classified areas and are ideal for the detection of flammable, toxic and refrigerant gasses in non hazardous environments. The detectors provide analog 4-20 mA, digital RS485 transmissions and 3-relay outputs. A multi-colour LED light ring offers a visual indication of the detector` status while an internal buzzer activates to warn of any fault or alarm condition. SMART3-R are rated to IP42 and feature one-man calibration via the STS/CKD series calibration keypad. On request, SMART3-R can be supplied with remote sensor head. The detector will be supplied with 5m 6-core cable.

T4x is Crowcon’s zone 0 approved personal protection solution for detecting the four most common gas hazards: Carbon Monoxide (CO), Hydrogen Sulphide (H2S), Flammable Gases (MPS), Oxygen Depletion (O2). Now with improved detection of pentane, hexane and other long chain hydrocarbons. Offering you compliance and low cost of ownership in a simple to use solution. The large single button and intuitive menu system allows T4x to be operated wearing gloves with minimal training.

The Gas-Pro portable multi gas detector offers detection of up to 5 gases in a compact and rugged solution. It has an easy-to-read top mount display making it easy to use and optimal for confined space gas detection. An optional internal pump, activated with the flow plate, takes the pain out of pre-entry testing and allows Gas-Pro to be worn either in pumped or diffusion modes.
