Sensomatic Loadcell products

The Aluminum Load Cell Model ASP-TT, is a Low profile single point load cell designed for Retail scales & other R&D applications.

The Steel Single point load cell Model SSP-PF-S is a low profile, off-center load cell designed for use in commercial & Platform scale applications.

The Single Ended Shear Beam load cell Model SESB is designed for process weighing applications. This load cell is rugged & sealed to IP67 standard (IP68 is optional) & robust in construction, suitable for harsh Industrial applications. This is constructed from High Nickel Alloy Steel and Designed to withstand impact load.

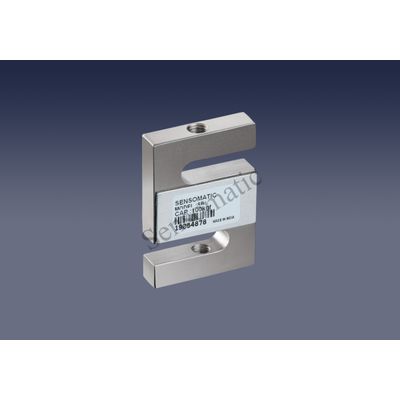

The S Type load cell is a compact load cell constructed of high nickel alloy steel. This Load cell is designed for High Precision Weight and Force measurement applications. The load cell is made of high alloy nickel steel and sealed to IP67 Standard load cell. This is a Universal Load Cell.

The Tank Weighing Assembly is a fully configured weighing assembly ideal for use on tanks, silos and hoppers. The assembly includes special hardened contact points & is designed for Thermal Expansion & contraction of the system.

Display: 6 digits, 7 segment, LED / Tactile Keys. Display: 6 digits, 7 segment, LED / Tactile Keys. Input Power Supply: 24 VDC. Communication: Rs 485 / RS 232,. Analog Output: : 4-20 mA (or) 0-10 VDC. Set point: 3 set-point with Potential Free Relay Contacts. Dimension: Outer : 96mm(W) X 48 mm (H) X 80mm (D). Sampling Speed : 120 / 480 / 960 Samples / sec (Selectable). Fixture: Panel Mountable. Application: Tank Weighing Batching / Platform / Press Fit Machine / Check Weigher.

Display: 6 digits, 7 segment, LED / Tactile Keys. Input Power Supply: 230 VAC. Communication: RS 422 / RS 232. Analog Output: 4-20 mA (or) 0-10 VDC. Set point: 3 Set point with Potential free relay contacts. Peak Hold: Peak Value Monitoring. Dimension: Outer: 144mm(W) X 96 mm (H) X 90mm (D). Sampling speed: 80 Samples / Sec. Fixture: Wall Mountable. Application: Tank Weighing Batching / Platform / Press Fit Machine / Check Weigher.

This is Compact Loadcell, is suitable for Universal applicationS & is available only in Stainless Steel Version (both Tension & Compression mode), Suitable for Press Fit System & Special Purpose Machine.

This Ultra High accuracy Universal Loadcell Model UNV is High Fatigue Rated & designed from High Nickel alloy steel construction for withstanding Impact Load. Ideally Suitable for Dynamic application & can be used for various application in both Compression & Tension mode. Sealed to IP68 standard.
