Sensor System Technology Co.,Ltd (SENSYS) products

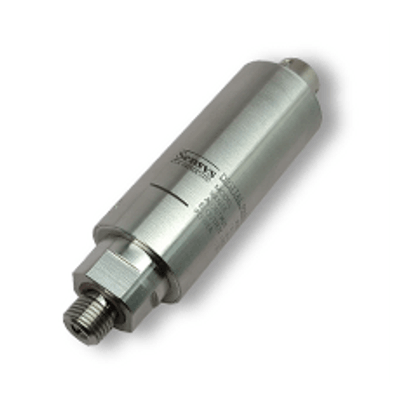

The PHP digital pressure transducer is a high accuracy and performance for precision pressure measurement component that uses either RS-232 to communicate with host computer and analog output. The PHP have a excellent small temperature error below 0.025% in the range of -10~50℃. The communication S/W is included in delivery.

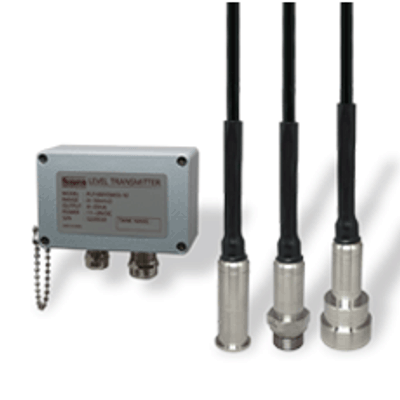

The PLF/PLS/PLK models are KR certified high-precision pressure level transmitters with the sensor part made of titanium or stainless steel 316L. Titanium material is very resistant to seawater, making it ideal for shipbuilding and offshore industries. This model is a ventilated polyurethane cable for atmospheric pressure compensation and can measure up to 350 m deep. Users can adjust the measurement range from 100% to 30% on the external AMP box.

The TSG model is a digital temperature gauge with various output signals: 4-20mA (2wire, 3wire), 1-5, 0-5, 0-10Vdc analog output, relay alarm output, and RS485 output. It adopts a 15mm high 4DIGIT LED with good visibility. Made of aluminum case with IP65 structure, there is no limit to the environmental.

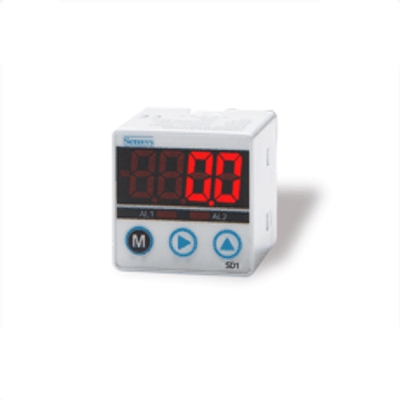

The SD1000 is a 30X30mm compact size digital indicator. The display has a 4-digit LED. Analog input and output can be selected from 0~5Vdc, 1~5Vdc, 4~20mA with the front button. Alarm output is provided in 2-channel NPN open collector and PNP open collector types and can be selected when ordering.

SD2000 is a digital indicator with a compact size of 30X30mm. The display has a 4 digit LED. Analog input can be selected from 0~5Vdc, 1~5Vdc, 4~20mA with the front button. Digital output is RS485 MODBUS RTU. Alarm output is provided in 1-channel NPN open collector and PNP open collector types and can be selected when ordering.
