SensoTech GmbH products

LiquiSonic^® measures inline the concentration or density in almost every kind of liquid. The technology is based on a high-precision measurement and a very fast and stable analytical method. It is independent of conductivity, color and transparency of the process liquids. The measuring results are available online and are updated every second. We offer our customers versions of the system adapted specifically to a wide range of applications in industry and laboratory.

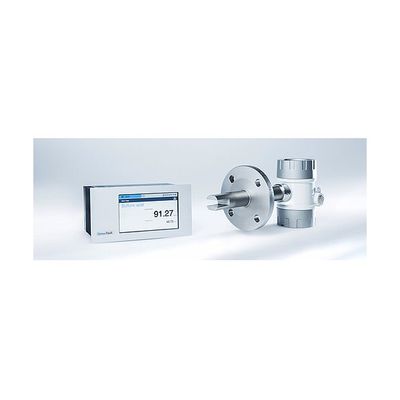

LiquiSonic^® Plato & Brix is a high sophisticated inline analyzer that is based on moderntechnologies and a comfortable operation. Measuring precisely the temperature-compensated sonic velocity directly in the process, the analyzer determines continuously and in real time the concentration of various liquid beverage ingredients such as original gravity (°Plato), sugar (°Brix), extract or alcohol.

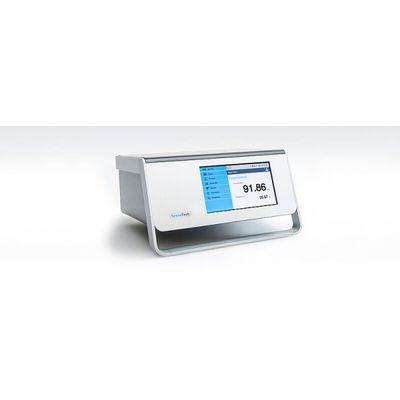

The LiquiSonic® Online Bath Monitor is a high sophisticated liquid analyzer that is based on modern technologies and a comfortable operation. Measuring precisely the temperature-compensated sonic velocity directly in the bath or pipe, the analyzer determines continuously and in real time the concentration and contamination degree in cleaning or surface treatment baths.

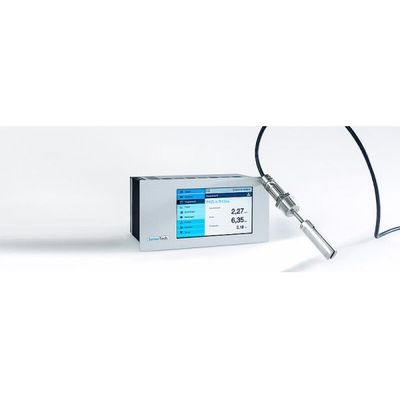

LiquiSonic® OCR is a high sophisticated inline analyzer that is based on modern technologies and a comfortable operation. Measuring precisely the pressure- and temperature-compensated sonic velocity directly in the process, the analyzer determines continuously and in real time oil concentrations in refrigerants for an optimum oil circulation ratio (OCR).

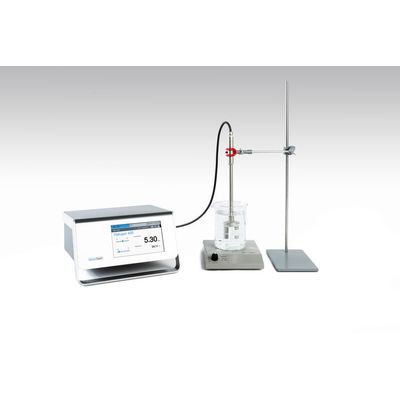

LiquiSonic^® Lab is specifically designed for lab applications and as a portable system in process plants. The system is provided with a splash water-proof housing, and hence is also suited for rough operating conditions.

The IPA-Monitor is an efficient system for measuring the concentration of isopropyl alcohol in different print plants. It enables a highly precise online determination of IPA concentration in dampening water.The IPA-Monitor is an efficient system for measuring the concentration of isopropyl alcohol in different print plants. It enables a highly precise online determination of IPA concentration in dampening water.

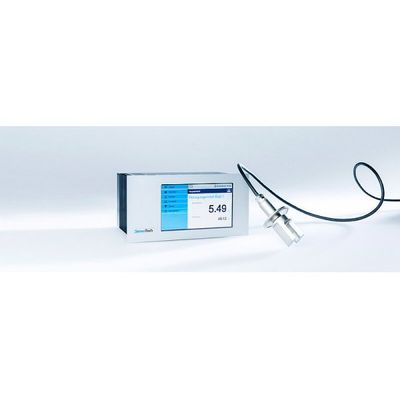

LiquiSonic® QC is an analysis system determining the concentration in a liquid without time delay. The device is based on the highly precise measurement of the absolute sonic velocity and process temperature and thus allows for the calculation and monitoring of concentrations.

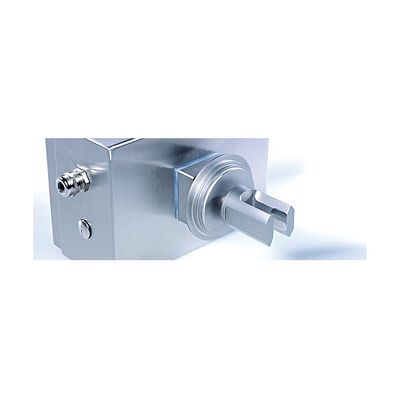

The immersion sensor Ex 40-40 is the standard for all applications in potentially explosive atmospheres.

For almost every application requirement we offer a suitable sensor including the necessary integration equipment. With insertion capabilities into tube sizes down to 10mm (3/8”) and with integrated temperature measurement it is very easy to meet the general application recommendations. Preferred installation lengths and almost all standard process fittings can be provided. It is also possible to install them in explosion-hazardous areas. We do not compromise on materials: the standard version of our sensors is made of stainless steel DIN 1.4571 (SS 316Ti). We also offer special alloys such as Hastelloy, Titanium and Tantalum or various plastic coatings for chemically aggressive substances that require corrosion protection measures.

For almost every application requirement we offer a suitable sensor including the necessary integration equipment. With insertion capabilities into tube sizes down to 10mm (3/8”) and with integrated temperature measurement it is very easy to meet the general application recommendations. Preferred installation lengths and almost all standard process fittings can be provided. It is also possible to install them in explosion-hazardous areas. We do not compromise on materials: the standard version of our sensors is made of stainless steel DIN 1.4571 (SS 316Ti). We also offer special alloys such as Hastelloy, Titanium and Tantalum or various plastic coatings for chemically aggressive substances that require corrosion protection measures.
