Seraphin Test Measure products

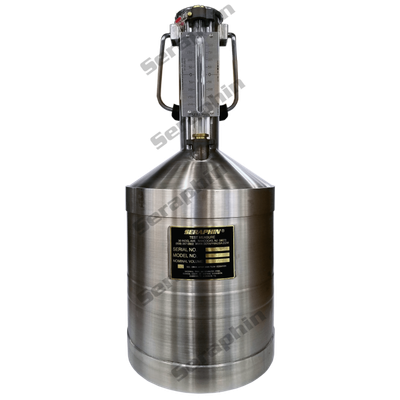

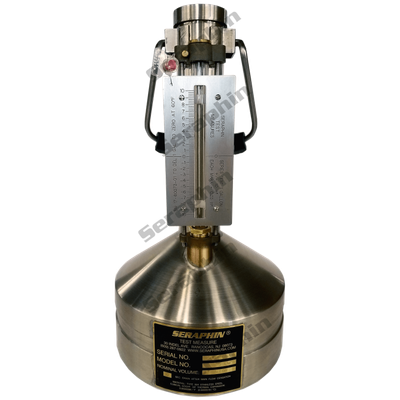

Seraphin® typically stocks 5 and 1-Gallon, 20, 10 and 5-Liter test measures. The scale resolutions of 0.25 cubic inches / 10 or 5 millimeters. Other capacity test measures including Imperial Gallons are available and are custom fabricated.

Construction: Built to OIML R-120, N.I.S.T. Handbook 105-3 Standards and API Manual of Petroleum Measurement Standards Chapter 4. Material: Type 304 Stainless Steel. Bottom: Concave and of adequate thickness to prevent distortion when filled.

Construction: Built to OIML R-120, N.I.S.T. Handbook 105-3 Standards and API Manual of Petroleum Measurement Standards Chapter 4. Material: Type 304 Stainless Steel. Bottom: Concave and of adequate thickness to prevent distortion when filled.

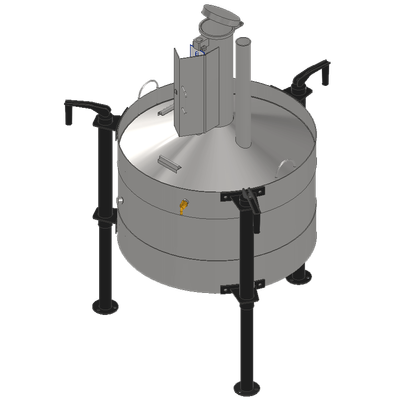

The Seraphin® 5 Gallon Vapor Retention Prover (VRP/VEP) is a graduated neck, bottom drain vessel built to N.I.S.T. Handbook 105-3 Standards, OIML R-120, Measurement Canada and API Manual of Petroleum Measurement Standards Chapter 4. Using Seraphin's 5 Gallon VRP®/VEP® can speed the job of calibrating
multiple fuel dispensing units, while at the same time, enhancing safety and productivity. It eliminates the need to carry heavy measures filled with fuel while tripling the amount of meters tested as compared to the traditional hand held units.

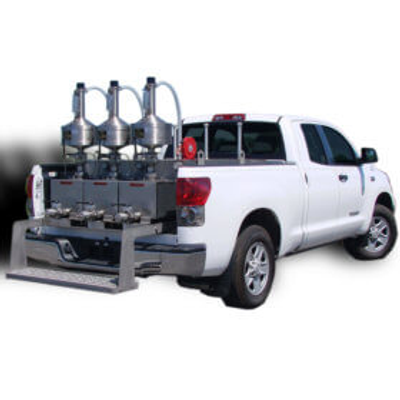

Skid mounted units are economical, and include safety equipment such as a static reel and fire extinguisher. The Seraphin® Series J is a graduated neck, bottom drain vessel built to N.I.S.T. Handbook 105-3 Standards, OIML R-120, Measurement Canada and API Manual of Petroleum Measurement Standards Chapter 4. The Series J prover, when mounted on a skid becomes an efficient method for measuring home heating oil, diesel oil or other meters requiring a medium flow rates from 40 gpm (150 lpm) to 125 gpm (500 lpm).
