Servintel International S.A. products

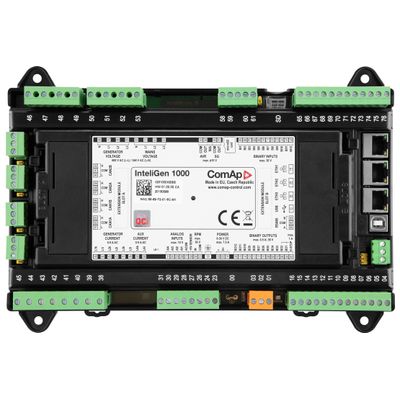

Cooperation with up to 64 gen-set/mains/tie controllers. Direct communication with ECUs. Secure remote control and monitoring. Highly flexible yet configurable solution for switchgear applications. Hardware compliant to the latest switchgear market needs. State of the art AC accuracy measurement which allows it to be used on primary frequency control mechanism, grid balancing and demand response projects. Cybersecurity by design, compliant to the ISA62433 standard. A variety of both local and remote monitoring options, with a high number of connected clients split into “trusted” and “untrusted” zones. Mains parallel operation with support of Grid Codes, compliant to European Grid codes ( EN 50549, VDE-AR-N 4110:2018, VDE-AR-N 4105:2019, G99, TOR), American IEEE 1547 and others. Multiple Island operation with cooperation with up to 64 additional gen-set/mains/tie controllers (InteliGen 1000 or InteliMains 1010). Several load transfer options with the possibility of less than 100ms load transfer. Redundant inter-controller line for critical applications like datacentres and hospitals. Double redundancy of the kW and kVAr sharing. User management allowing up to 30 unique users. AirGate 2.0 makes sure that the connection to the controller is established faster from all around the world, and is more reliable than ever before.. Internal PLC interpreter with an easy to use PLC Editor, for simple and fast creation of specific logic. Up to 31 characters in texts, parameters, and alarms for system clarity and easy troubleshooting. Compatibility with ComAp InteliGen/InteliSys/InteliMains-NT line, InteliGen 200, InteliGen500 controllers. Enable/Disable of features and protections makes the system highly versatile yet simple and easy for both commissioning engineers and operators.

InteliGen 500 G2 is a paralleling controller with 5" colour display for advanced and more complex diesel gen-set applications, supporting both single and multiple gen-sets running in grid-tied or island operations.

Synchronising - for multiple up to 31 gen-sets operating in parallel to mains PLC - Utilise our unique, and easy to use PLC drag-and-drop blocks for configuration. New design - Flexibility to change the application e.g. MCB & MGCB. Plug-in modules - Customize your controller with our plug-in extension and communication modules. 4G/LTE - Connect to your gen-set via 4G/LTE for alerts or use ComAp`s WebSupervisor. GPS - Always know the location of your gen-set using geofencing for theft or movement alerts. InteliConfig - Our new configuration and monitoring PC tool will offer you multi gen-set control and monitoring as well as easy set-up.

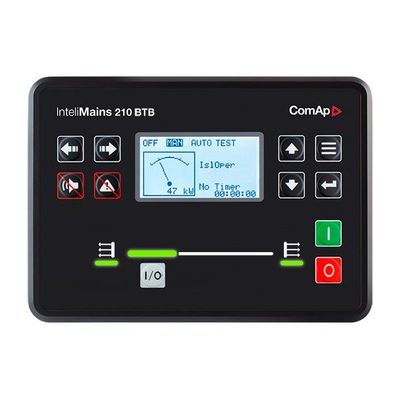

Highly customizable behavior of breaker control (dead bus, blockation of closing etc.). Synchronization (phase matching/slip synchro) of two control groups separated by InteliMains210- BTB with various settings (which group synchronizes to which etc.). Load shedding control (based on power transferred via BTB). PLC logic included (useful in complex systems – BTB can for example serve as auxiliary PLC for other controllers). Full set of protections for BusL and additional protections for BusR. Group Link function.
