Setra Systems, Inc. products

Setra's SRH outdoor humidity sensor offers optional active temperature with choice of 4 to 20 mA or user-selectable 0 to 5 or 0 to 10 VDC output and passive temperature with choice of thermistor or RDT output.

Setra’s SRH duct mount humidity sensor offers optional active temperature with choice of 4 to 20 mA or user-selectable 0 to 5 and 0 to 10 VDC output and passive temperature with choice of thermistor or RDT output. The sensor is housed in a polycarbonate 94 V-0, NEMA 4 enclosure making it suitable for harsh environments. The SRH duct mount sensor gives the user the choice of 2%, 3% or 5% RH accurate to meet the requirements of typical HVAC applications. It features a removable sensor tip, NIST tracability and a durable capacitive sensor capable of a 0 to 99% full scale RH measurement and recovery of 100% saturation.

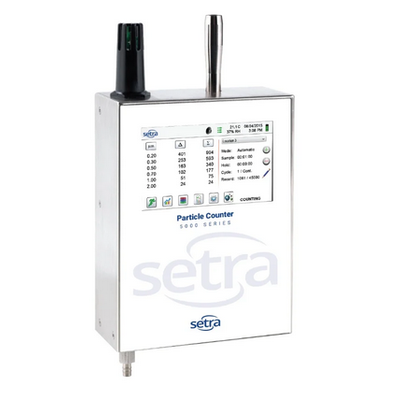

Now the SPC 5000 Series is available with BACnet connectivity to help meet all your automation system integration needs. The 5000 Series Remote Particle Counters are the most feature-advanced remote particle counters available. Integration is easy into a building automation and cleanroom management system via Ethernet or (optional) Wireless.

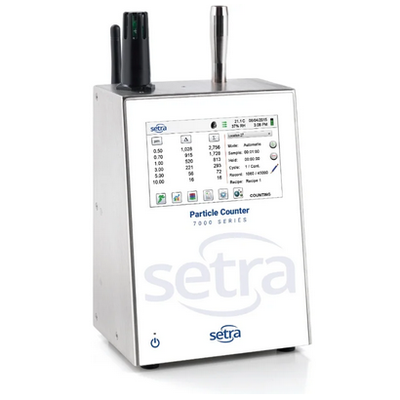

Now the SPC 7000 Series is available with BACnet connectivity to help meet all your automation system integration needs. The Setra Systems 7000 Series Remote Particle Counters are the most feature advanced remote particle counters available.

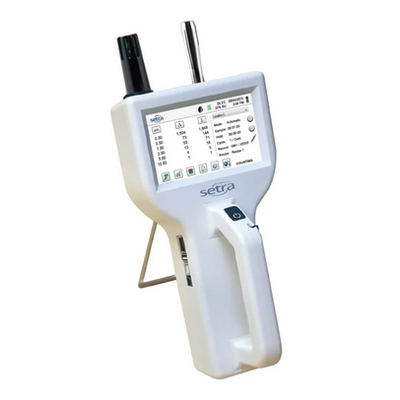

Now the SPC 8000 Series is available with BACnet connectivity to help meet all your automation system integration needs. The Setra Systems 8000 Series Handheld Particle Counter measures 0.3 μm to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM). Easy to configure and trusted in cleanrooms, this handheld particle counter displays up to 6 user-selectable size channels as well as temperature and relative humidity.

The Setra Model MRG is Setra’s newest differential pressure transducer. The Setra MRG is the ideal product for any contractor, combining the flexibility of a multi-range with the performance of a single range transducer. The MRG has 8 selectable ranges and 3 selectable outputs, easily adjustable on the job with a flip of a switch or jumper. The MRG uses an IP67 rated housing and has a conduit fitting for easy wiring, making the MRG an ideal solution for any general HVAC application.

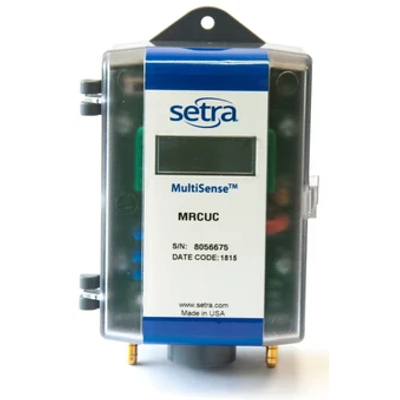

Setra’s Model MRC multi-range low differential pressure transducer uses a dead-ended capacitive sensing element that requires minimal amplification and delivers excellent accuracy and longterm stability. The MRC is the industries first multi-range sensor designed for critical environments. It is the only multi-range sensor available with ±0.5% FS accuracy and field selectable ranges down to 0.1” W.C., a requirement for critical applications. The MRC has 4 selectable ranges and 3 selectable outputs, easily adjustable on the job with a flip of a switch or jumper. The MRC is offered with 3 different housing configurations: Duct Probe, DINrail Mount or wall mount as well as a universal design that incorporates all 3 configurations in one to address any installation changes on the job site.

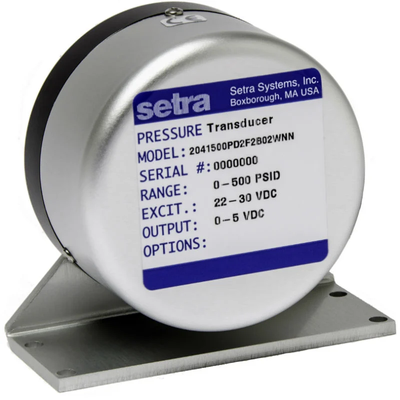

Setra's Model 204 is the "standard" for measuring gauge and absolute pressure in the Test & Measurement industry. Decades worth of installations have helped the 204 build a reputation of reliability and remains the trusted choice for critical applications.

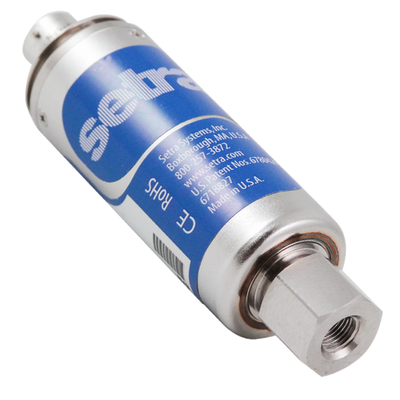

Setra’s Model ASM is the highest accuracy transducer for measuring gauge, absolute, compound and vacuum pressure in the AccuSense™ product line.
