Seven Sensor Solutions - a brand by ArGesim Makina
34 products found
Seven Sensor Solutions - a brand by ArGesim Makina products

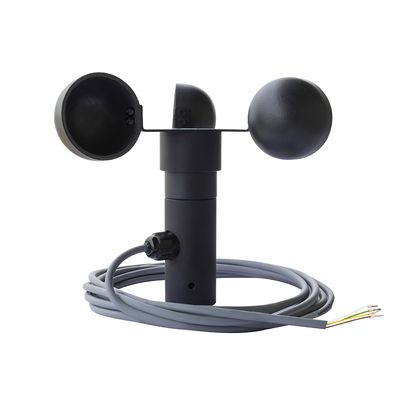

SEVEN - Model 3S-WS-I - Wind Speed Sensor With Analog Output
Wind speed sensor, also known as anemometer, is one of weather station sensors. This Sensor measures wind speed by converting it into an electrical signal in m/s. The Wind Speed Sensor is designed to measure horizontal wind speed independently of direction. The measuring electronic element in the wind speed sensor is the reed relay driven by the rotating magnet connected to the wind bowls.The Wind Speed Sensor with Analog Output is compatible with all Dataloggers, Gateways, and PLCs with Analog input port. It is supplied with mounting facility and cable. Heating option is available for locations where there is a risk of icing.
SEVEN - Model 3S-WS-MB - Wind Speed Sensor With Modbus RTU Output
Small and economical Anemometer used for measuring Wind Speed in a Solar PV Plant. The Output Signal is Modbus RTU and it is compatible with all Modbus RTU dataloggers. It is supplied along with Cable.
SEVEN - Model 3S-WD-I - Wind Direction Sensor With Analog Output
The Wind Direction Sensor is is a professional meteorological sensor used to measure horizontal wind direction. It consists of two parts, the body, and the vane. It measures the Wind Direction in degree (°). The Wind Direction Sensor can be used for many reasons, such as the interpretation of the values of modules temperature, as a strong wind blowing from the North, for example, can cool the panel. It is also used is to document warranty claims related to the damage caused by the wind. The Wind Direction Sensor with Analog Output is compatible with all Dataloggers, Gateways, and PLCs having Analog input port. It is supplied with mounting facility and cable.
SEVEN - Model 3S-WD-MB - Wind Direction Sensor With Modbus Output
The Wind Direction Sensor is is a professional meteorological sensor used to measure horizontal wind direction. It consists of two parts, the body, and the vane. It measures the Wind Direction in degree (°). The Wind Direction Sensor can be used for many reasons, such as the interpretation of the values of modules temperature, as a strong wind blowing from the North, for example, can cool the panel. It is also used is to document warranty claims related to the damage caused by the wind. The Wind Direction Sensor with Modbus Output is compatible with all Dataloggers supporting Modbus RTU Protocol. It is supplied with mounting facility and cable.
SEVEN - Model 3S-RH-I - Humidity Sensor With Analog Output
Relative Humidity sensors are used to measure the actual humidity condition within the air at any given point or any given place. It measures the Humidity in Percentage (%). Relative Humidity measurements may be used to estimate changes in incident spectrum which may affect PV module power output as well as irradiance sensor readings. Humidity data with temperature data can also be used to calculate the Dew Point. This Relative Humidity Sensor Model is compatible with all Dataloggers, Gateways, and PLCs having Analog input port. It is supplied with mounting facility, and protected from direct sunlight & radiations by a plastic radiation shield.
SEVEN - Model 3S-AT-PT1000-MB - Ambient Temperature Sensor-PT1000 with Modbus Output
Ambient Temperature Sensor measures the air temperature in the environment where the PVs are placed in degrees Celsius (°C) by using by using a PT1000 probe. This Ambient Temperature Sensor Model is compatible with all Dataloggers and PLCs with RS485 input port. It is supplied with mounting facility, and protected from direct sunlight & radiations by a plastic radiation shield with four aspirated plates that allow the air to pass freely.
SEVEN - Model 3S-AT-PT1000 - Ambient Temperature Sensor-PT1000
Ambient Temperature Sensor measures the air temperature in the environment where the PVs are placed in degrees Celsius (°C) by using a PT1000 probe. This Ambient Temperature Sensor Model is compatible with SEVEN Irradiance Sensor Box. It is supplied with mounting facility, and protected from direct sunlight & radiations by a plastic radiation shield with four aspirated plates that allow the air to pass freely.
SEVEN - Model 3S-AT-PT1000-I - Ambient Temperature Sensor-PT1000 with 4-20 mA Output
Ambient Temperature Sensor measures the air temperature in the environment where the PVs are placed in degrees Celsius (°C) by using a PT1000 probe. In order to communicate via 4-20mA, a transducer is used to convert PT000 to the required Output signal. This Ambient Temperature Sensor Model is compatible with all Dataloggers, Gateways, and PLCs with 4-20 mA input port. It is supplied with mounting facility, and protected from direct sunlight & radiations by a plastic radiation shield with four aspirated plates that allow the air to pass freely.
SEVEN - Model 3S-AT-PT1000-U - Ambient Temperature Sensor-PT1000 with 0-10V Output
Ambient Temperature Sensor measures the air temperature in the environment where the PVs are placed in degrees Celsius (°C) by using a PT1000 probe. In order to communicate via 0-10V, a transducer is used to convert PT000 to the required Output signal. This Ambient Temperature Sensor Model is compatible with all Dataloggers, Gateways, and PLCs with 0-10V input port. It is supplied with mounting facility, and protected from direct sunlight & radiations by a plastic radiation shield with four aspirated plates that allow the air to pass freely.
